5 kVA 50 kV AC DC Hipot Tester

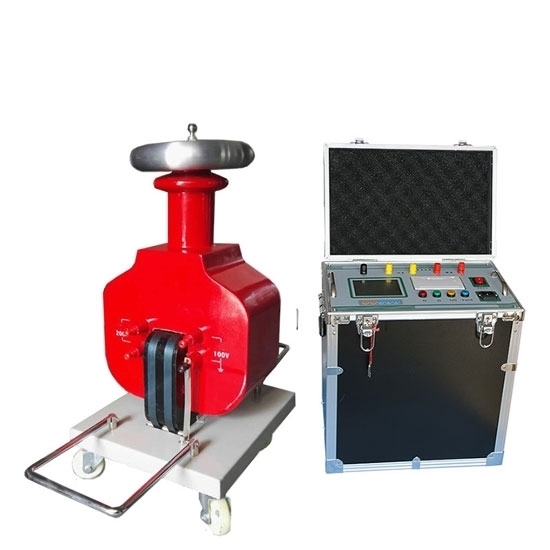

High voltage AC DC hipot tester 5 kVA, input voltage 220V, output voltage 50 kV, 50 Hz and 60 Hz are optional, single phase, hipot test equipment with dry type testing transformer and a digital control box, can select box type and desktop type control.

SKU: CCHN-HTGTB-550

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Portable AC hipot tester 50 kV, 5 kVA, 50 Hz, dry type testing transformer, it can be used in high-voltage cable testing procedures, low price and high quality.

Note: AC leakage current meter is not provided.

Specifications

Model	CCHN-HTGTB-550
Capacity	5 kVA
Input Voltage	110V/ 120V/ 220V
Frequency	50Hz/ 60Hz
Output Voltage	50 kV
Current	100 mA
DC Output	70 kV
Phase	1 Phase
Weight (Transformer+Control Box)	87 kg
Cooling Method	Dry
Effeciency	90%
Impedance Voltage	<12%
Surface Temperature Raising	< 55°C
No Load Current	< 4%
Output Voltage Waveform	Sine Wave
Usage	AC DC Hipot Tester
Warranty	12 Months
Temperature environment	0~40°C
Altitude	<2000m
Relative Humidity	<85%

Packing List

NO.	Description	Quantity
1	Hipot Test Set (1 Control Box + 5 kVA Dry Transformer)	1
2	Power Supply Cable	1
3	Earth Cable	1
4	Connecting Line	1
5	Fuse	3
6	Rectifying Diode	1
7	User Manual	1

Wiring Diagram

Tips: How Does High Voltage Hipot Tester Work?

Applying a voltage higher than normal operation to the insulator of the device under test for a specified period of time, the voltage applied to it will only produce a small leakage current, and the insulation is better. Three modules of program-controlled power module, signal acquisition and conditioning module and computer control system form a test system.
