Digital Shore OO Hardness Durometer, 20 O, 10~90H

Digital Shore OO Hardness Durometer, 20 O, 10~90H

Digital shore hardness durometer measuring scale-OO materials, such as extremely soft rubber, thermoplastic elastomers, sponge, extremely soft plastics, thermoplastics, foams, low-density textile windings. Maximum hardness value 20 O, test range 10~90 H, accuracy ≤ ± 1H, resolution 0.1H, indenter R1.2 spherical radius. Rating OO shore hardness tester powered by 2 x 1.5V AAA batteries, digital display, affordable price.

SKU: CCHN-SHT-SOO20

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Buy scale OO digital shore hardness durometer online at low price. Type OO shore hardness tester has the max hardness value of 20 O, testing range 10~90H, accuracy ≤ ± 1H, resolution 0.1H. Suitable materials are extremely soft rubber, thermoplastic elastomers, sponge, extremely soft plastics, thermoplastics, foams, low-density textile windings, and other rating OO materials.

Specification

Model	CCHN-AS-120OO
Hardness Scale	Type OO
Hardness Value	Below 20 O
Measurement Range	10~90H
Accuracy	≤ ± 1H
Resolution	0.1H
Display Range	0~100H
Case	High impact resistance ABS
Operating Temperature	0~40℃
Power Supply	2 x 1.5V AAA Um-4 Battery
Indenter	R1.2 spherical radius
Dimension	170 x 63 x 24 mm
Weight	310 g (Not including batteries)
Applicable Materials	extremely soft rubber
	thermoplastic elastomers
	sponge
	extremely soft plastics
	thermoplastics
	foams
	low-density textile windings

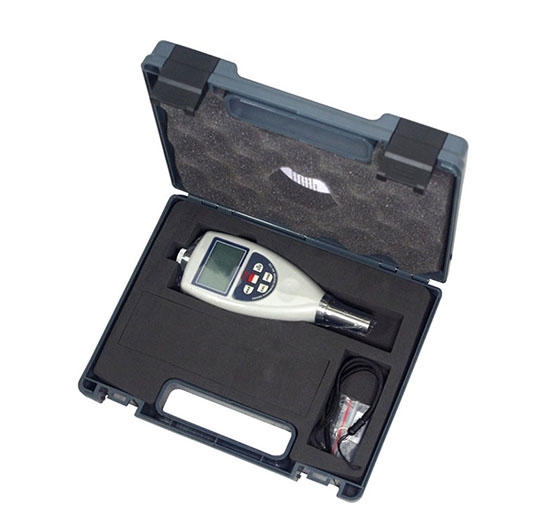

Accessories

Standard Accessories	Main unit
	Test block
	Carrying Case
	Operation manual
Optional Accessories*	USB data output
Optional Accessories*	Bluetooth data output

*Note: If you need USB/Bluetooth output, please contact us.

Digital shore hardness tester durometer accessories

Features

Shore OO hardness tester has an integrated design, small size, light weight, simple structure, easy to use, and intuitive reading.
Scale OO Shore hardness durometer has low battery alarm indication and average value calculation function.
The Shore rating OO hardness tester has automatic shutdown and manual shutdown functions.
Shore type OO hardness durometer supports USB data transfer and can be connected to a PC. It also supports Bluetooth data output. These two items are optional, please contact us if you need them.
