Digital Shore O Hardness Durometer, 20 DO, 10~90H

Digital Shore O Hardness Durometer, 20 DO, 10~90H

Buy scale O shore hardness durometer online at economical price. Maximum hardness value 20 DO, test range 10~90 H, accuracy ≤ ± 1H, resolution 0.1H, indenter R1.2 spherical radius, applicable materials soft rubber, thermoplastic elastomers, very soft plastics and thermoplastics, medium-density textile windings. Shore hardness tester with rating O, battery powered, digital display.

SKU: CCHN-SHT-SO20

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Type O shore hardness durometer with ideal price, digital display. Max hardness value of the scale O hardness tester is 20 DO, measuring range 10~90H, accuracy ≤ ± 1H, resolution 0.1H. The rating O durometer gauge suits materials including soft rubber, thermoplastic elastomers, very soft plastics and thermoplastics, medium-density textile windings.

Specification

Model	CCHN-AS-120O
Hardness Scale	Type O
Hardness Value	Below 20 DO
Measurement Range	10~90H
Accuracy	≤ ± 1H
Resolution	0.1H
Display Range	0~100H
Case	High impact resistance ABS
Operating Temperature	0~40℃
Power Supply	2 x 1.5V AAA Um-4 Battery
Indenter	R1.2 spherical radius
Dimension	170 x 63 x 24 mm
Weight	310 g (Not including batteries)
Applicable Materials	soft rubber
	thermoplastic elastomers
	very soft plastics and thermoplastics
	medium-density textile windings

Accessories

Standard Accessories	Main unit
	Test block
	Carrying Case
	Operation manual
Optional Accessories*	USB data output
Optional Accessories*	Bluetooth data output

*Note: If you need USB/Bluetooth output, please contact us.

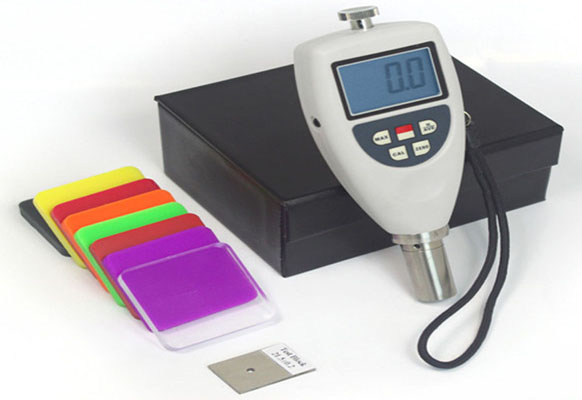

Digital shore hardness tester durometer accessories

Features

Shore O hardness tester has an integrated design, small size, light weight, simple structure, easy to use, and intuitive reading.
Scale O Shore hardness durometer has low battery alarm indication and average value calculation function.
The Shore rating O hardness tester has automatic shutdown and manual shutdown functions.
Shore type O hardness durometer supports USB data transfer and can be connected to a PC. It also supports Bluetooth data output. These two items are optional, please contact us if you need them.
