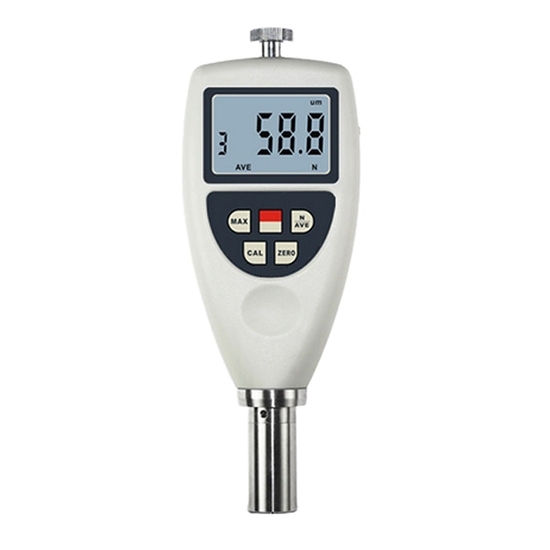

Digital Shore E Hardness Durometer, 90 DO~20 A, 10~90H

Digital Shore E Hardness Durometer, 90 DO~20 A, 10~90H

Digital shore hardness durometer measures materials of scale E hardness. Hardness value 90 DO to 20 A, measurement range 10~90 H, accuracy ≤ ± 1H, resolution 0.1H, indenter R2.5 spherical radius. Rating E shore hardness tester, portable and affordable price. Applicable materials hard sponge and EVA.

SKU: CCHN-SHT-SE9020

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Buy rating E shore hardness durometer online at good price. Hardness value 90 DO to 20 A, measurement range 10~90 H, accuracy ≤ ± 1H, resolution 0.1H. Type E shore durometer measures materials with E scale hardness such as hard sponge and EVA.

Specification

Model	CCHN-AS-120E
Hardness Scale	Type E
Hardness Value	90 DO ~ 20 A (above 90 DO, below 20 A)
Measurement Range	10~90H
Accuracy	≤ ± 1H
Resolution	0.1H
Display Range	0~100H
Case	High impact resistance ABS
Operating Temperature	0~40℃
Power Supply	2 x 1.5V AAA Um-4 Battery
Indenter	R2.5 spherical radius
Dimension	170 x 63 x 24 mm
Weight	310 g (Not including batteries)
Applicable Materials	hard sponge
Applicable Materials	EVA

Accessories

Standard Accessories	Main unit
	Test block
	Carrying Case
	Operation manual
Optional Accessories*	USB data output
Optional Accessories*	Bluetooth data output

*Note: If you need USB/Bluetooth output, please contact us.

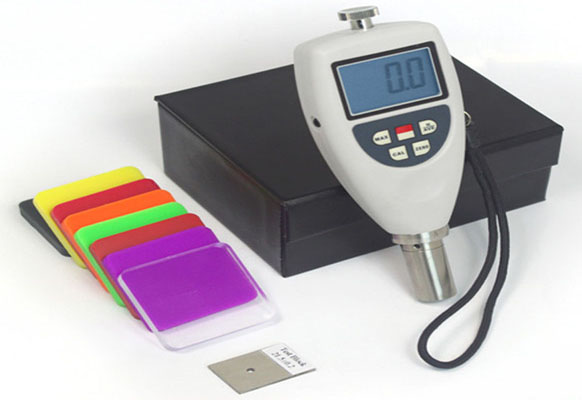

Digital shore hardness tester durometer accessories

Features

Shore E hardness tester has an integrated design, small size, light weight, simple structure, easy to use, and intuitive reading.
Scale E Shore hardness durometer has low battery alarm indication and average value calculation function.
The Shore rating E hardness tester has automatic shutdown and manual shutdown functions.
Shore type E hardness durometer supports USB data transfer and can be connected to a PC. It also supports Bluetooth data output. These two items are optional, please contact us if you need them.
