Digital Shore DO Hardness Tester, 90 C~20 D, 10~90H

Digital Shore DO Hardness Tester, 90 C~20 D, 10~90H

Type DO digital shore hardness tester for sale online. Hardness value 90 C to 20 D, testing range 10~90 H, accuracy ≤ ± 1H, resolution 0.1H, indenter R1.2 spherical radius. Shore hardness durometer rating in scale DO, testing materials moderately hard rubber, thermoplastic elastomers, and very dense textile windings. Portable, economical price.

SKU: CCHN-SHT-SDO9020

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Low price scale DO shore hardness tester with digital display. Hardness value 90 C to 20 D, testing range 10~90 H, accuracy ≤ ± 1H, resolution 0.1H. The type DO shore durometer measures materials with DO rating hardness, such as moderately hard rubber, thermoplastic elastomers, and very dense textile windings.

Specification

Model	CCHN-AS-120DO
Hardness Scale	Type DO
Hardness Value	90 C ~ 20 D (above 90 C, below 20 D)
Measurement Range	10~90H
Accuracy	≤ ± 1H
Resolution	0.1H
Display Range	0~100H
Case	High impact resistance ABS
Operating Temperature	0~40℃
Power Supply	2 x 1.5V AAA Um-4 Battery
Indenter	R1.2 spherical radius
Dimension	170 x 63 x 24 mm
Weight	310 g (Not including batteries)
Applicable Materials	moderately hard rubber
	thermoplastic elastomers
	very dense textile windings

Accessories

Standard Accessories	Main unit
	Test block
	Carrying Case
	Operation manual
Optional Accessories*	USB data output
Optional Accessories*	Bluetooth data output

*Note: If you need USB/Bluetooth output, please contact us.

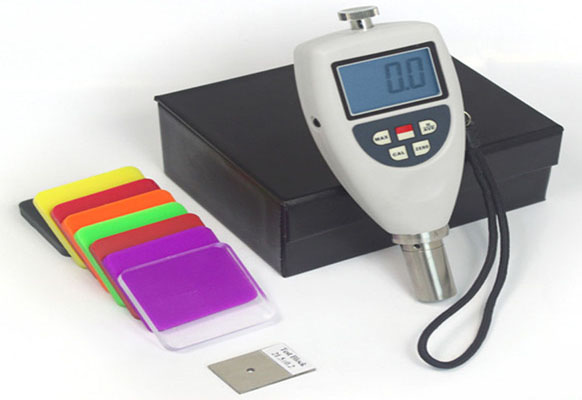

Digital shore hardness tester durometer accessories

Features

Shore DO hardness tester has an integrated design, small size, light weight, simple structure, easy to use, and intuitive reading.
Scale DO Shore hardness durometer has low battery alarm indication and average value calculation function.
The Shore rating DO hardness tester has automatic shutdown and manual shutdown functions.
Shore type DO hardness durometer supports USB data transfer and can be connected to a PC. It also supports Bluetooth data output. These two items are optional, please contact us if you need them.
