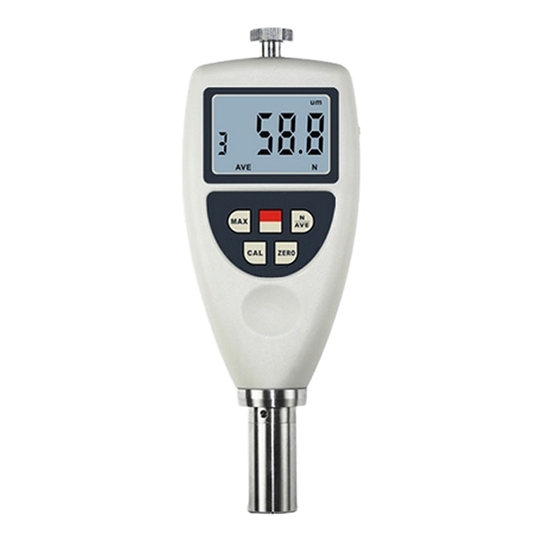

Digital Shore D Hardness Tester, 90 A, 10~90H

Digital Shore D Hardness Tester, 90 A, 10~90H

Ideal price type D shore hardness tester for sale, digital display. Hardness value above 90 A, measurement range 10~90 H, accuracy ≤ ± 1H, resolution 0.1H, indenter R0.1 cone. Shore hardness durometer scale in rating D, applicable materials hard rubber, thermoplastic elastomers, harder plastics, and rigid thermoplastics, etc.

SKU: CCHN-SHT-SD90

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Digital hardness tester rating in D scale, reasonable price. Hardness value above 90 A, measurement range 10~90 H, accuracy ≤ ± 1H, resolution 0.1H, indenter R0.1 cone. Suitable measuring materials of the type D shore hardness durometer are hard rubber, thermoplastic elastomers, harder plastics, rigid thermoplastics and so on.

Specification

Model	CCHN-AS-120D
Hardness Scale	Type D
Hardness Value	Above 90 A
Measurement Range	10~90H
Accuracy	≤ ± 1H
Resolution	0.1H
Display Range	0~100H
Case	High impact resistance ABS
Operating Temperature	0~40℃
Power Supply	2 x 1.5V AAA Um-4 Battery
Indenter	R0.1 Cone
Dimension	170 x 63 x 24 mm
Weight	310 g (Not including batteries)
Applicable Materials	hard rubber
	thermoplastic elastomers
	harder plastics
	rigid thermoplastics

Accessories

Standard Accessories	Main unit
	Test block

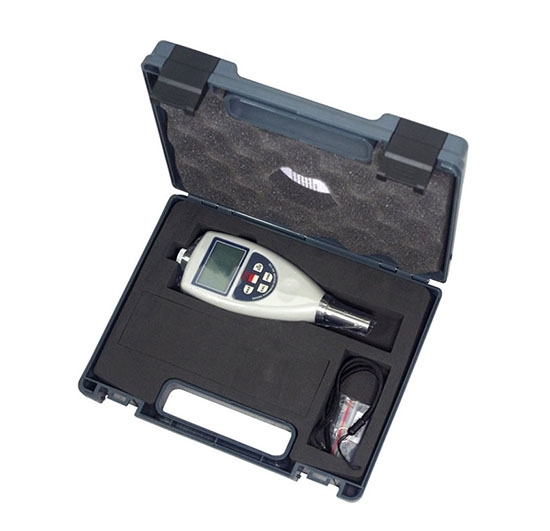

	Carrying Case
	Operation manual
Optional Accessories*	USB data output
Optional Accessories*	Bluetooth data output

*Note: If you need USB/Bluetooth output, please contact us.

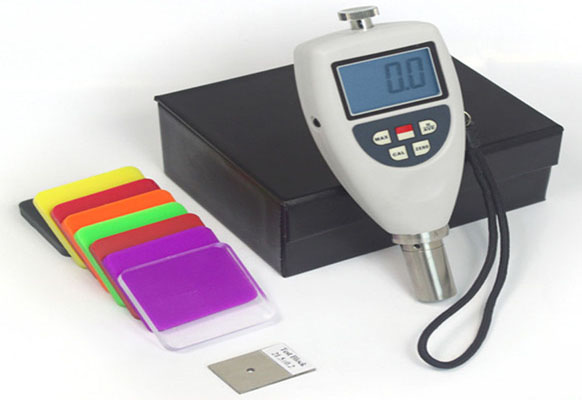

Digital shore hardness tester durometer accessories

Features

Shore D hardness tester has an integrated design, small size, light weight, simple structure, easy to use, and intuitive reading.
Scale D Shore hardness durometer has low battery alarm indication and average value calculation function.
The Shore rating D hardness tester has automatic shutdown and manual shutdown functions.
Shore type D hardness durometer supports USB data transfer and can be connected to a PC. It also supports Bluetooth data output. These two items are optional, please contact us if you need them.
