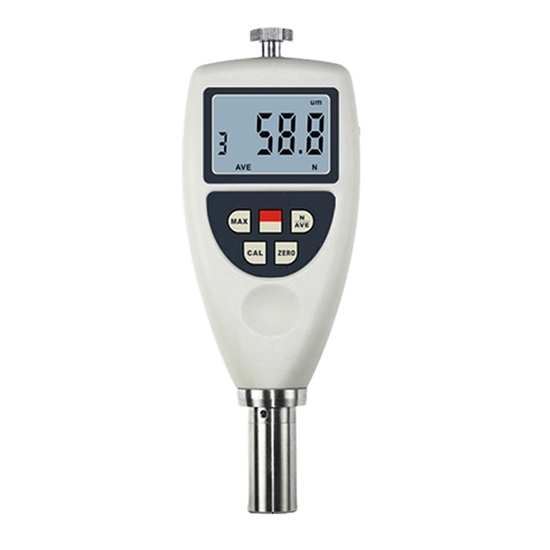

Digital Shore C Hardness Durometer, 90 B~20 D, 10~90H

Digital Shore C Hardness Durometer, 90 B~20 D, 10~90H

Buy scale C shore hardness durometer online, digital, portable. Hardness value 90 B~20 D, testing range 10~90 H, precision ≤ ± 1H, resolution 0.1H, measuring materials medium-hard rubber, thermoplastic elastomers, medium-hard plastics and thermoplastics, etc. Type C shore hardness tester supports USB data transmission, matches indenter 0.79 truncated (frustum) cone.

SKU: CCHN-SHT-SC9020

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Digital rating C hardness durometer for sale, competitive price. Hardness value 90 B to 20 D, measuring range 10~90 H, accuracy ≤ ± 1H, resolution 0.1H. The scale C shore hardness tester can test medium-hard materials including medium-hard rubber, thermoplastic elastomers, medium-hard plastics, thermoplastics and so on.

Specification

Model	CCHN-AS-120C
Hardness Scale	Type C
Hardness Value	90 B ~ 20 D (above 90 B, below 20 D)
Measurement Range	10~90H
Accuracy	≤ ± 1H
Resolution	0.1H
Display Range	0~100H
Case	High impact resistance ABS
Operating Temperature	0~40℃
Power Supply	2 x 1.5V AAA Um-4 Battery
Indenter	0.79 Truncated (frustum) cone
Dimension	170 x 63 x 24 mm
Weight	310 g (Not including batteries)
Applicable Materials	medium-hard rubber
	thermoplastic elastomers
	medium-hard plastics and thermoplastics

Accessories

Standard Accessories	Main unit
	Test block

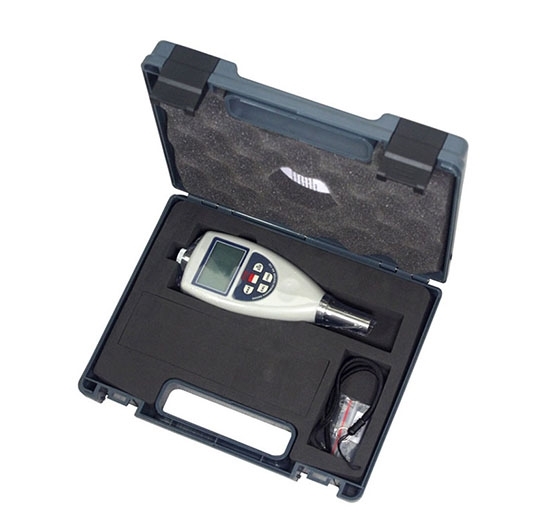

	Carrying Case
	Operation manual
Optional Accessories*	USB data output
Optional Accessories*	Bluetooth data output

*Note: If you need USB/Bluetooth output, please contact us.

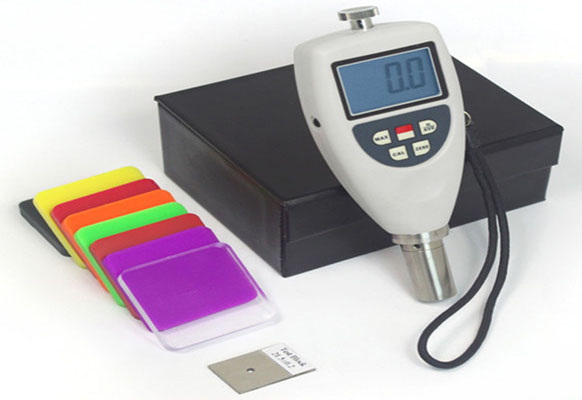

Digital shore hardness tester durometer accessories

Features

Shore C hardness tester has an integrated design, small size, light weight, simple structure, easy to use, and intuitive reading.
Scale C Shore hardness durometer has low battery alarm indication and average value calculation function.
The shore rating C hardness tester has automatic shutdown and manual shutdown functions.
Shore type C hardness durometer supports USB data transfer and can be connected to a PC. It also supports Bluetooth data output. These two items are optional, please contact us if you need them.
