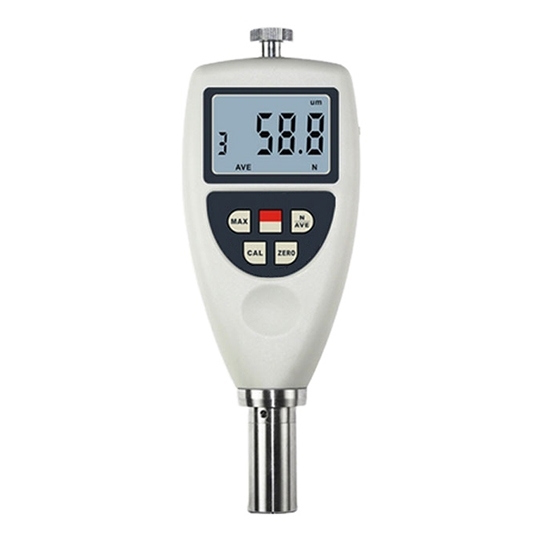

Digital Shore B Hardness Durometer, 90 A~20 D, 10~90H

Digital Shore B Hardness Durometer, 90 A~20 D, 10~90H

Good price digital shore hardness durometer, type B. Hardness value 90 A to 20 D, measurement range 10~90 H, accuracy ≤ ± 1H, resolution 0.1H, suitable materials moderately hard rubber, thermoplastic elastomers, paper products, and fibrous materials. Scale B shore hardness tester with R0.1 cone indenter, supports USB data transmission.

SKU: CCHN-SHT-SB9020

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Type B shore hardness durometer with affordable price, digital display, battery powered. Hardness value of the scale B hardness tester is 90 A ~ 20 D, measuring range 10~90H, accuracy ≤ ± 1H, resolution 0.1H. The rating B durometer gauge suits moderately hard rubber, thermoplastic elastomers, paper products, and fibrous materials, etc.

Specification

Model	CCHN-AS-120B
Hardness Scale	Type B
Hardness Value	90 A ~ 20 D (above 90 A, below 20D)
Measurement Range	10~90H
Accuracy	≤ ± 1H
Resolution	0.1H
Display Range	0~100H
Case	High impact resistance ABS
Operating Temperature	0~40℃
Power Supply	2 x 1.5V AAA Um-4 Battery
Indenter	R0.1 Cone
Dimension	170 x 63 x 24 mm
Weight	310 g (Not including batteries)
Applicable Materials	moderately hard rubber
	thermoplastic elastomers
	paper products
	fibrous materials

Accessories

Standard Accessories	Main unit
	Test block

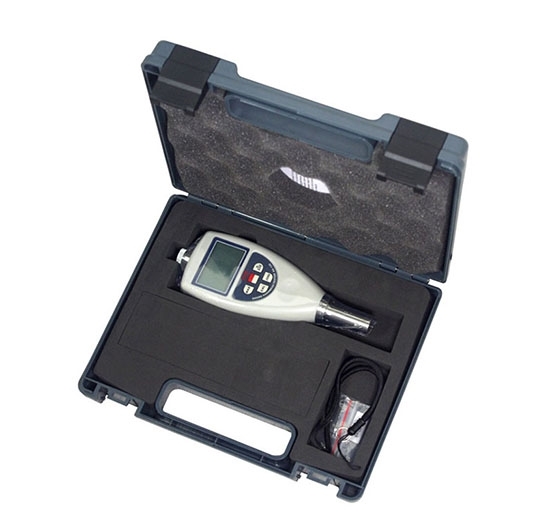

	Carrying Case
	Operation manual
Optional Accessories*	USB data output
Optional Accessories*	Bluetooth data output

*Note: If you need USB/Bluetooth output, please contact us.

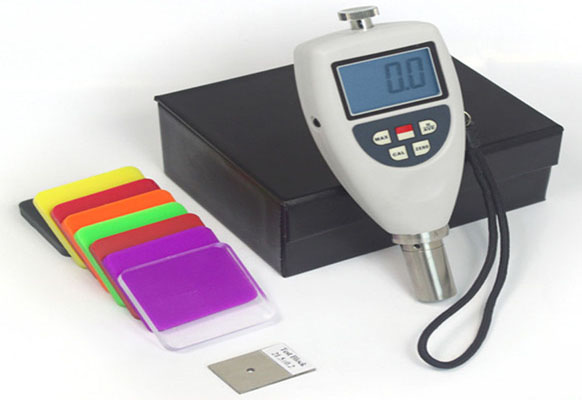

Digital shore hardness tester durometer accessories

Features

Shore B hardness tester has an integrated design, small size, light weight, simple structure, easy to use, and intuitive reading.
Shore B hardness durometer has low battery alarm indication and average value calculation function.
The shore B hardness tester has automatic shutdown and manual shutdown functions.
Shore B hardness durometer supports USB data transfer and can be connected to a PC. It also supports Bluetooth data output. These two items are optional, please contact us if you need them.
