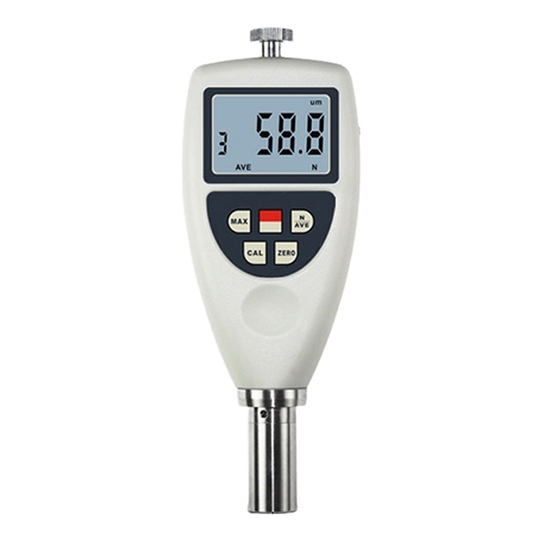

Digital Shore A Hardness Tester, 20 A~90 A, 10~90H

Digital Shore A Hardness Tester, 20 A~90 A, 10~90H

Type A Shore hardness tester with digital display. Hardness value 20A~90A, measurement range 10~90H, accuracy ≤ ± 1H, resolution 0.1H, testing materials soft vulcanized rubber, natural rubber, nitriles, thermoplastic elastomers, flexible poly acrylics, thermosets, wax, felt, and leathers. Scale A shore hardness durometer, indenter 0.79 truncated (frustum) cone, portable, low price.

SKU: CCHN-SHT-SA2090

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Low price digital shore hardness tester for sale, type A. Hardness value 20A~90A, measurement range 10~90H, accuracy ≤ ± 1H, resolution 0.1H. Battery powered durometer with Rating A, used in hardness measuring for materials soft vulcanized rubber, natural rubber, nitriles, thermoplastic elastomers, flexible poly acrylics, thermosets, wax, felt, and leathers, etc.

Specification

Model	CCHN-AS-120A
Hardness Scale	Type A
Hardness Value	20 A ~ 90 A
Measurement Range	10~90H
Accuracy	≤ ± 1H
Resolution	0.1H
Display Range	0~100H
Case	High impact resistance ABS
Operating Temperature	0~40℃
Power Supply	2 x 1.5V AAA Um-4 Battery
Indenter	0.79 Truncated (frustum) cone
Dimension	170 x 63 x 24 mm
Weight	310 g (Not including batteries)
Applicable Materials	soft vulcanized rubber
	natural rubber
	nitriles
	thermoplastic elastomers
	flexible poly acrylics
	thermosets
	wax
	felt
	leathers

Accessories

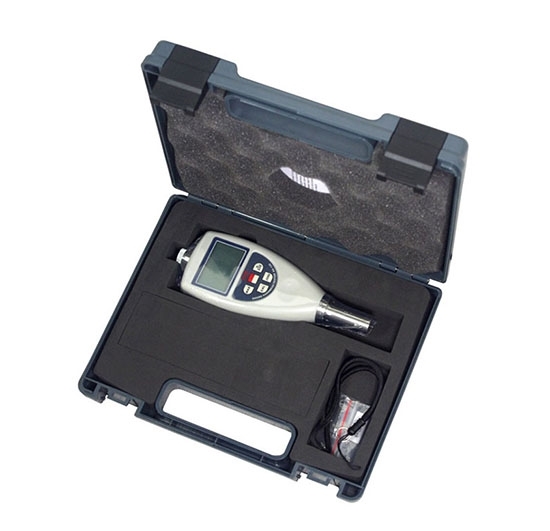

Standard Accessories	Main unit
	Test block
	Carrying Case
	Operation manual
Optional Accessories*	USB data output
Optional Accessories*	Bluetooth data output

*Note: If you need USB/Bluetooth output, please contact us.

Digital shore hardness tester durometer accessories

Features

Shore A hardness tester has an integrated design, small size, light weight, simple structure, easy to use, and intuitive reading.
Shore A hardness durometer has low battery alarm indication and average value calculation function.
The shore A hardness tester has automatic shutdown and manual shutdown functions.
Shore A hardness durometer supports USB data transfer and can be connected to a PC. It also supports Bluetooth data output. These two items are optional, please contact us if you need them.
