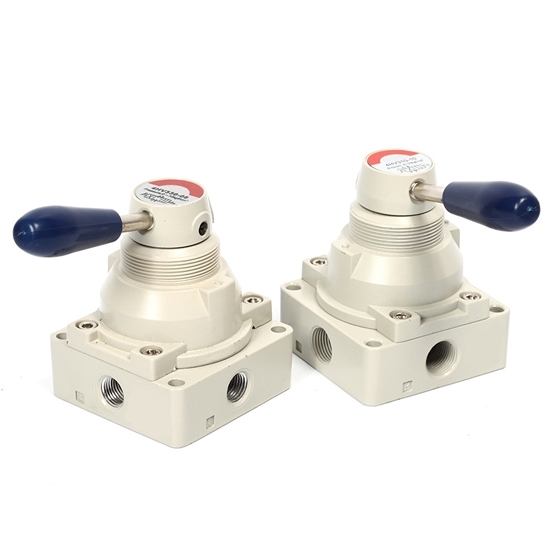

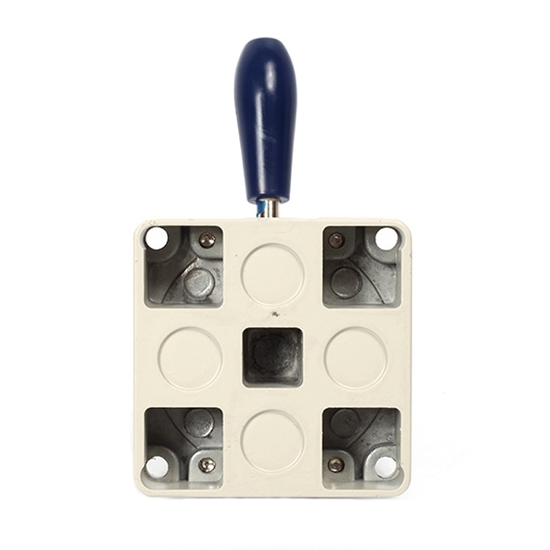

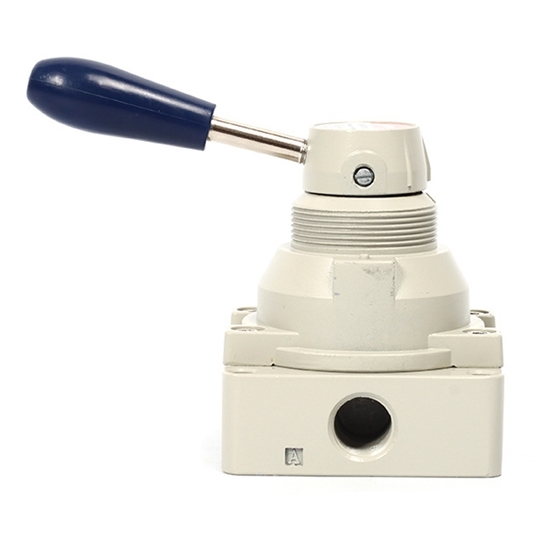

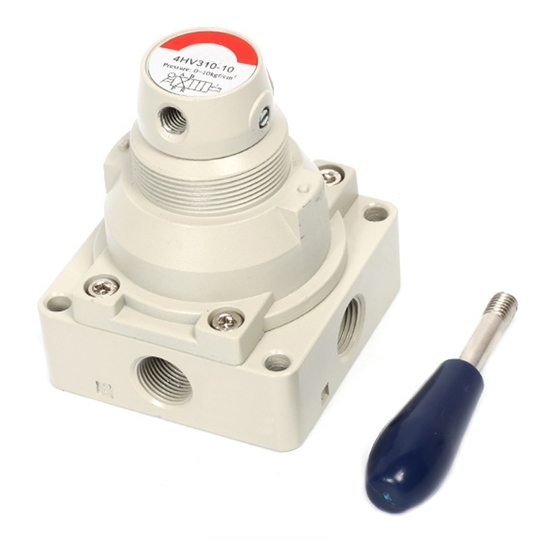

G1/2" Hand Lever Valve, 4 Way, 2/3 Position

Hand operated lever valve is used to operate pneumatic cylinders, G1/2 inch port size, 4 way 2 position and 3 position for your choices. This manual lever can control the movement of the spool, which allowing the air to pass.

SKU: CCHN-VALVE-12

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This hand valve cannot be used for drinking water.

Low price hand lever valve is used in air chucks, pneumatic actuators, venturi vacuum generators and other pneumatic equipment which need manual operation.

Specification

Model		CCHN-4HV410-15	CCHN-4HV430-15
Working Media		Compressed Air
Action Mode		Direct-acting Type
Position		4/2 Port (4 Way, 2 Position)	4/3 Port (4 Way, 3 Position)
Port Size		G1/2
Lubrication		No Need
Working Pressure		1MPa
Proof Pressure		1.5MPa
Working Temperature		0 ~ 60℃
Operation Angle		90°
Material	Body	Aluminum Alloy
	Seal	NBR

Wiring Diagram

4 Way 2 Position

Wiring Diagram of 4 Way 2 Position Air Hand Lever Valve

4 Way 3 Position

Wiring Diagram of 4 Way 3 Position Pneumatic Hand Lever Valve

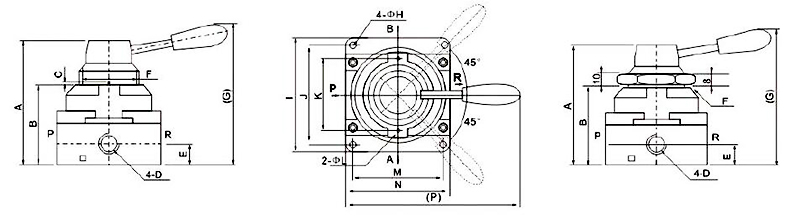

Dimensions (Unit: mm)

Dimensions of 4 Way 2 Position Air Hand Lever Valve

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	P
CCHN-4HV410-15	109	70.5	2	G1/2	17.5	M52*1.5	130	6.5	101.5	89	63.5	3	81	94	160
CCHN-4HV430-15	109	70.5	2	G1/2	17.5	M52*1.5	130	6.5	101.5	89	63.5	3	81	94	160

Tips: What is a hand operated lever valve?

Hand operated lever valves use handles and levers to manipulate the valve action by manpower. When the valve opening and closing torque is large, a worm gear or reducer can be installed between the handle and lever. If necessary, universal joints and drive shafts can also be used for long-distance operations.
