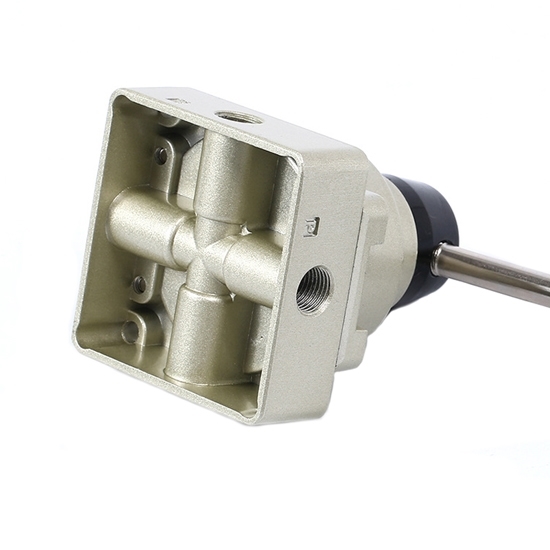

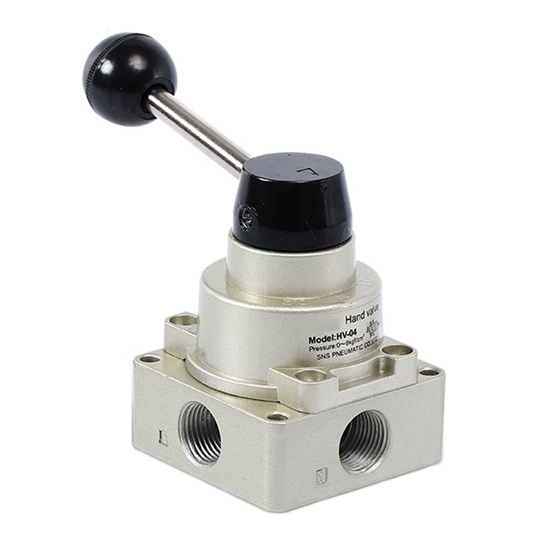

G3/8" Hand Lever Valve, 4 Way, 2 Position

High performance hand operated lever valve for sale online at low price. This manual lever air valve is used to operate pneumatic cylinders and air chucks with G3/8 inch port, direct-acting type, 4 way, 2 position.

SKU: CCHN-VALVE-38

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This hand valve cannot be used for drinking water.

Economical price 3/8 inch hand operated lever valve is used in air chucks, pneumatic actuators, venturi vacuum generators and other pneumatic equipment which need manual operation.

Specification

Model		CCHN-HV-02	CCHN-HV-03	CCHN-HV-04
Working Media		Compressed Air
Action Mode		Direct-acting Type
Position		4/2 Port (4 Way, 2 Position)
Port Size		G1/4	G3/8	G1/2
Lubrication		No Need
Working Pressure		0 ~ 0.8MPa
Proof Pressure		1.0MPa
Working Temperature		0 ~ 60℃
Material	Body	Aluminum Alloy
	Seal	NBR

Wiring Diagram

Wiring Diagram of 4 Way 2 Position Pneumatic Hand Lever Valve

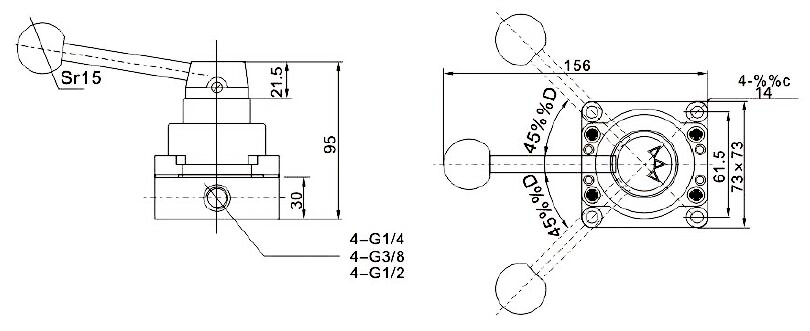

Dimensions (Unit: mm)

Dimensions of 4 Way 2 Position Pneumatic Hand Lever Valve

Tips: Why you need CCHN hand lever valve?

CCHN hand lever valve is simple structure in linear type and easy in installation and maintain.
High pressure double crank to control the die opening and closing.
Running in a high automatization and intellectualization, no pollution.
It Adopts advanced world famous brand components in pneumatic parts, electric parts and operation parts.
Apply a linker to connect with the air conveyor, which can directly inline with filling machine.
