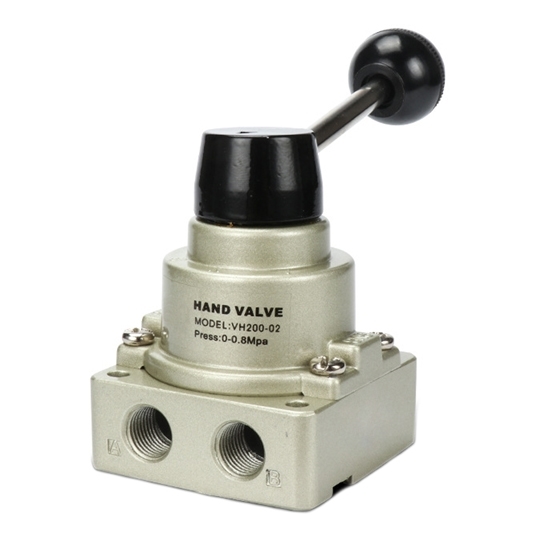

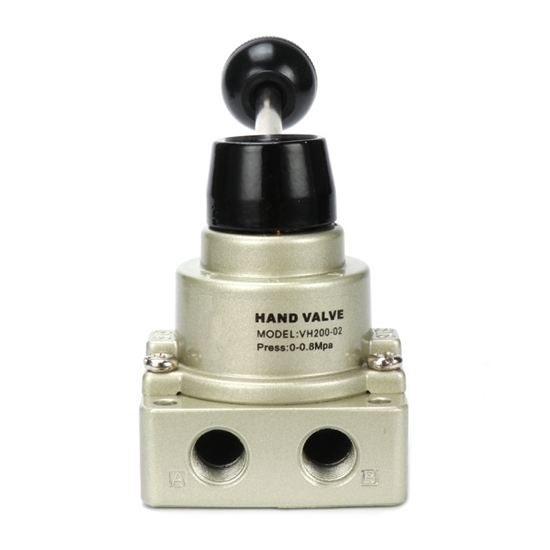

G1/4" Hand Lever Valve, 4 Way, 2 Position

Factory price hand lever direct acting valve is 4 way 2 position with manual return operation, G1/4 inch port, which can be used to operate pneumatic cylinders. The manual lever can control the movement of the spool, which allowing the air to pass.

SKU: CCHN-VALVE-14

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This hand valve cannot be used for drinking water.

1/4 inch hand operated lever valve is used in air chucks, pneumatic actuators, venturi vacuum generators and other pneumatic equipment which need manual operation.

Specification

Model		CCHN-VH200-02
Working Media		Compressed Air
Action Mode		Direct-acting Type
Position		4/2 Port (4 Way, 2 Position)
Port		G1/4
Lubrication		No Need
Working Pressure		0.8MPa
Proof Pressure		1.0MPa
Working Temperature		5 ~ 60℃
Material	Body	Aluminum Alloy
	Seal	NBR

Wiring Diagram

Wiring Diagram of 4 Way 2 Position Pneumatic Hand Lever Valve

Dimensions (Unit: mm)

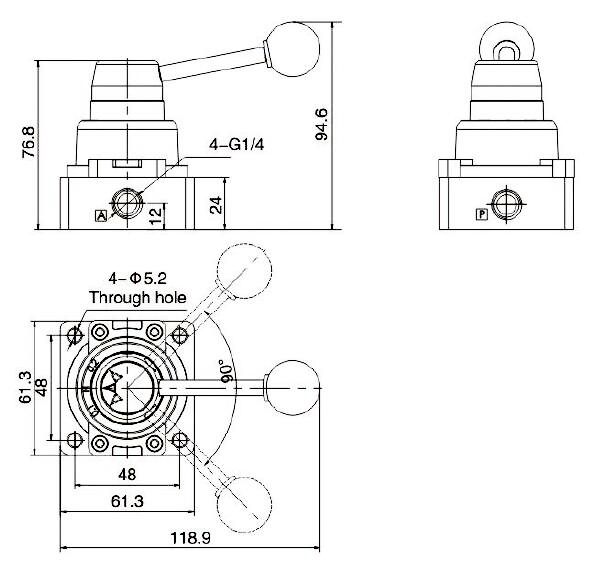

Dimensions of 4 Way 2 Position Pneumatic Hand Lever Valve

Tips:

The hand lever air valve is a control part in the pipeline fluid conveying system. It is used to change the passage section and the flow direction of the medium. It has the functions of diversion, cut-off, adjustment, throttling, check, shunt or overflow and pressure relief. It is used for fluid control, and the nominal diameter is up to 10m. The manual valve can act according to predetermined requirements under the action of pressure, temperature or other forms of sensing signals, or simply open or close without relying on the sensing signal. It relies on the drive or automatic mechanism to make the opening and closing parts lift and slide. , pendulum or rotary motion, so as to change the size of its flow channel area to achieve its control function.
