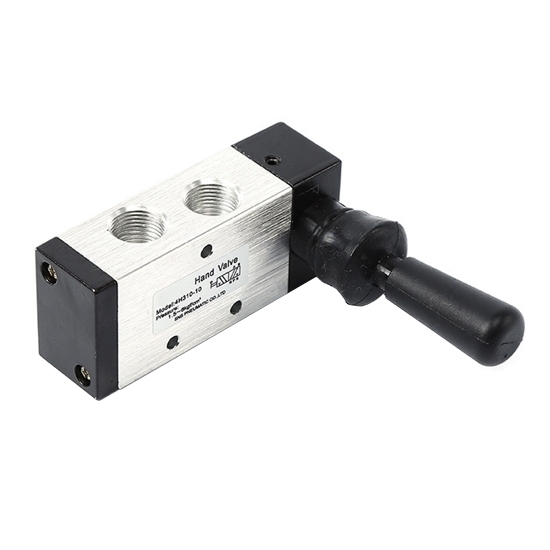

Pneumatic Hand Lever Valve, 3 Way, 2 Position

Pneumatic Hand Lever Valve, 3 Way, 2 Position

Pneumatic hand lever valve, three way, two position, with 1/4, 3/8, 1/2 inch port, provide a manual return operation to allow the air to pass. This air valve can be used to control air chucks, pneumatic actuators and venturi vacuum generators.

SKU: CCHN-VALVE-32

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This hand valve cannot be used for drinking water.

Pneumatic hand operated lever valve is used to operate air cylinders. Its manual lever can control the movement of the spool, which allowing the air to pass.

Specification

Model		CCHN-3H210-08	CCHN-3H310-10	CCHN-3H410-15
Working Media		Compressed Air
Action Mode		Direct-acting Type
Position		3/2 Port (3 Way, 2 Position)
Effective Sectional Area		16.0mm2 (Cv=0.89)	30.0mm2 (Cv=1.67)	50.0mm2 (Cv=2.79)
Port Size		Inlet = Outlet = G1/4 Exhaust Port = G1/8	Inlet = Outlet = G3/8 Exhaust Port = G1/4	Inlet = Outlet = Exhaust Port = G1/2
Lubrication		No Need
Working Pressure		0 ~ 0.8MPa
Proof Pressure		1.0MPa
Working Temperature		0 ~ 60℃
Material	Body	Aluminum Alloy
	Seal	NBR

Wiring Diagram

Wiring Diagram of 3 Way 2 Position Pneumatic Hand Lever Valve

Dimensions (Unit: mm)

Dimensions of 3 Way 2 Position Pneumatic Hand Lever Valve

Model	A	B	C	D	E	F	G	H	I	J
CCHN-3H210-08	93	19.2	18.5	22	G1/4	4.3	18	38.7	35	31
CCHN-3H310-10	99	20.5	23.8	27	G3/8	3.3	20	27.7	40	35.5
CCHN-3H410-15	105	32.5	33	34	G1/2	4.3	27	45.5	50	50

Tips:

The pneumatic hand lever valves usually go on reversing through the outer forces. When the outer strength disappears, the valve will come back to the original position and exchange the direction. The structure soloker knob and emergency push button with lock has the memory function. However, according to the function of valves, it's divided into three way and two position as well as 5 way 2 position. The 3/2 way usual is used to control the output signal of pneumatic system and the 5/2 way can directly drive the cylinder.
