3/4" Flanged Globe Valve

Note: This globe valve cannot be used for drinking water.

Flange globe valve with carbon steel material. Thickened body makes the globe check valve stable. It is suitable for water and steam medium.

Features:

• Streanline, outside screw and yoke.
• Loose disc, rising stem and handwheel.
• Yoke integral with bonnet, available with gear operator.

Specification:

• Model: CCHN-J41H-16/25C-DN20
• Port Size: 3/4 inch (DN20)
• Material: carbon steel
• Structural Style: straight through form
• Connection Type: flange connection
• Medium: water, oil, steam
• Pressure: 1.6Mpa/2.5Mpa
• Direction of Flow: one way flow
• Drive Mode: manual
• Working Temperature: -29 ℃ ~ 425 ℃
• Net Weight: 10kg

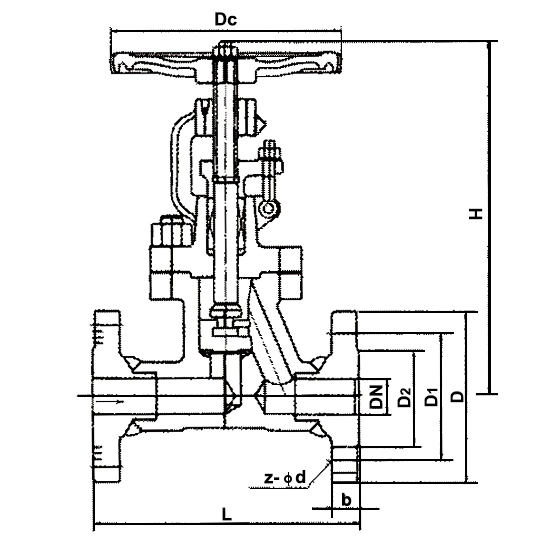

Dimension (Unit: mm)

Tips: Advantages of Globe Valve

• Compared with gate valve, the globe valve is simple in structure, convenient in manufacture and maintenance.
• Sealing surface is not easy to wear, abrasion, good sealing and long life.
• When opening and closing, the disc stroke is smaller, the opening and closing time is shorter, and the valve height is smaller.
