2" Forged Steel Globe Valve

Note: This globe valve cannot be used for drinking water.

One notable feature of 2 inch forged globe valves is their ability to handle a wide range of flow rates, from low to high, making them versatile in different applications. Their robust construction and versatility make them well-suited for challenging environments, ensuring reliable and efficient operation in various industrial processes.

Features:

• Forged Body. The body of the valve is forged, making it robust and suitable for high-pressure and high-temperature applications.
• Pressure Seal Bonnet. Some forged steel globe valves feature a pressure seal bonnet, which is designed to enhance the sealing capabilities of the valve under high-pressure conditions.
• Socket Weld. Forged steel globe valves may have either socket weld for easy installation and connection with the pipeline.

Specification:

• Model: CCHN-J61H-DN50
• Port Size: 2 inch (DN50)
• Texture of Material: forged steel
• Pressure Rating: 1.6 MPa
• Rotation Mode: hand wheel
• Connection Mode: welding
• Flow direction: one-way
• Medium: steam
• Net Weight: 2.8kg

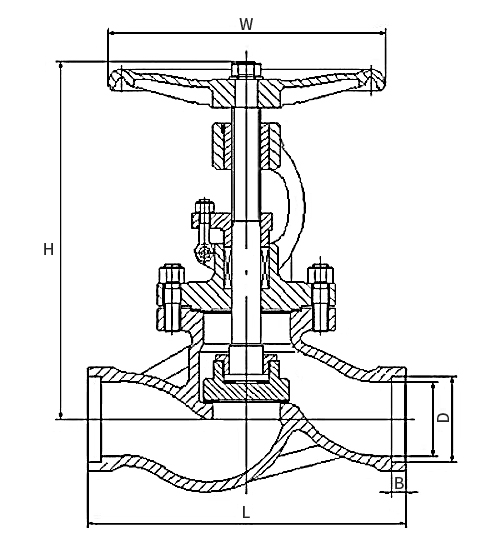

Dimension (Unit: mm)

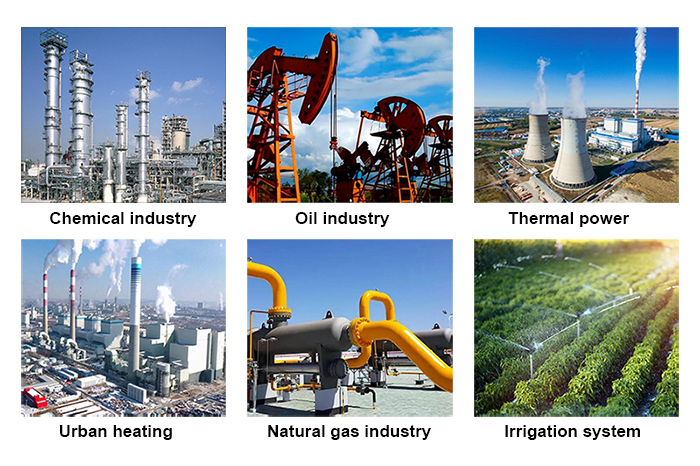

Application:

Tips: How should a globe valve be installed?

• Choose the correct size and type of valve based on the application.
• Ensure proper alignment with the pipeline, considering flow direction.
• Install the valve with the arrow on the body indicating the correct flow direction.
• Use appropriate gaskets and ensure a tight seal between flanges.
• Tighten bolts evenly to avoid misalignment and leakage.
• Support the valve to prevent excessive strain on the pipeline.
• Install the valve in a location easily accessible for maintenance.
• Conduct pressure tests to ensure integrity and functionality.
