2-1/2" DN65 Pneumatic Diaphragm Globe Shut-off Valve

2-1/2" DN65 pneumatic diaphragm actuated globe valve is suitable for gas and liquid, temperature ≤250℃. Connection mode is flange, equipped with pneumatic thin film actuator, DC24V solenoid valve, limit switch and air filtering pressure reducing valve. Efficient control, stable and reliable, widely used in industrial fields.

SKU: CCHN-PGV-DN65

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This globe valve cannot be used for drinking water.

2-1/2" pneumatic globe valve is a kind of valve used for fluid control, the diameter is DN65mm. pneumatic actuator is used to realize automatic control, suitable for high pressure environment. Nominal pressure range of 1.6MPa, rated flow coefficient 75KV, operating temperature ≤ 250 ℃. Pneumatic globe valve is widely used in industrial systems to provide reliable fluid regulation and cut-off function.

Specification

Model	CCHN-810D-1S2A-4DK41-DN65
Pipe Diameter	2-1/2" DN65
Nominal Pressure	PN16 MPa
Rated Flow Coefficient	75 KV
Rated Stroke	20 mm
Film Effective Area	400 cm²
Allowable Pressure Difference	Positive Action: 1.52
Allowable Pressure Difference	Opposite Reaction: 2.03
Signal Pressure	0 or 250
Allowable Leakage	Hard Seal: General: 10^-4 × valve rated capacity; Tight type: single-seat: 1.2 × 10^-7
Allowable Leakage	Soft Seal: Class VI
Operating Temperature	≤ 250℃
Connection Method	Flangeless
Medium of Use	Gas and Liquid
Valve Body Material	304
Bonnet Type	Standard type (-17 ~ +250℃)
Cover Type	Screw compression type
Sealing Material	V-shaped PTFE packing, reinforced PTFE packing, graphite braided packing, flexible graphite
Valve Core Type	Single-seat spool
Flow Characteristics	Quick opening characteristic
Included Accessories	Pneumatic diaphragm actuator, DC24V solenoid valve, limit switch, and air filter regulator.

Dimension (Unit: mm)

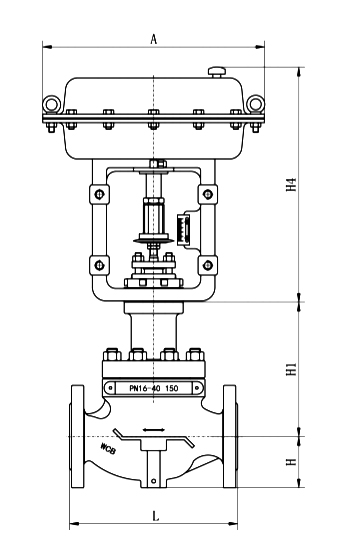

Pneumatic globe valve dimension

DN	A	L	H	H1	H4
65	340	276	92.5	214	400

Application

Pneumatic globe valve application

Tips: Pneumatic Globe Valve Use Tips

Stable Gas Supply: Ensure that the pneumatic shut-off valve gets enough gas supply to ensure normal opening and closing operation of the valve.
Valve Operation Status Monitoring: Regularly check the operation status of the valve to ensure that the spool movement is free, no jamming or abnormal sound. If there is any abnormality, carry out maintenance in time.
Prevent Overloading: Avoid overloading operation to prevent damage to the pneumatic actuator or valve due to improper operation.
Prevent Pollution: Keep the working environment clean, prevent pollutants from entering the valve body, so as not to affect the normal movement of the valve spool.
Regular lubrication: Regular lubrication of the key parts of the pneumatic actuator to ensure the long-term reliable operation of the valve.
Avoid Freezing: In cold environments, take anti-freezing measures to prevent the pneumatic stop valve from icing and affecting normal use.
Pay Attention to Safe Operation: Operators should operate in accordance with relevant regulations to avoid safety accidents.
