1" Stainless Steel Globe Valve

Globe stop valve can be used in machinery and petrochemical industry. 1" stainless steel globe valve is suitable for water and oil medium. Working temperature of this type globe valve between -20 ℃ and 260 ℃.

Features:

• Simple and compact appearance.
• NPT threaded connection for easy installation of pressure gauge and pipe.
• 304 stainless steel has the characteristics of corrosion resistance and high temperature resistance.

Specification:

• Model: CCHN-J13W-160P1
• Port Size: 1 inch
• Structure: inner and outer thread
• Pressure: 0-6000 psi
• Temperature: -20 ℃ ~ + 260 ℃
• Medium: oil, water, steam

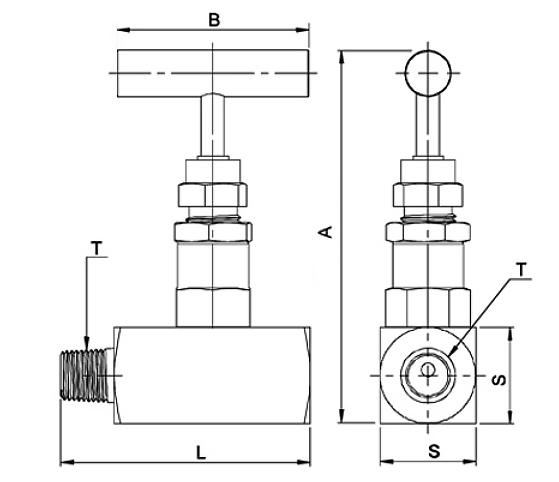

Dimension (Unit: mm)

Tips: Types of Globe Valve

• Oblique globe valve. In the straight flow or Y shape stop valve, the valve body flow channel and the main channel into a diagonal, so that the damage of the flow state is smaller than the conventional stop valve, so the pressure loss through the valve is correspondingly small.
• Angle globe valve. The fluid only needs to change direction once so that the pressure drop through the valve is smaller than in conventionally constructed globe valves.
