1/2" Stainless Steel Globe Valve

1/2 inch stainless steel globe valve with affordable price for sale. Globe stop valve with NPT thread connection, easy to install pressure gauge and pipe. Working temperature of this type globe valve between -20 ℃ and 260 ℃. Globe control valve is suitable for water and oil medium. 304 stainless steel has the characteristics of corrosion resistance.

SKU: CCHN-GV-12SSGV

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Simple and compact appearance of stainless valve. Globe control valve can be used in machinery and petrochemical industry. Working temperature of this type globe valve between -20 ℃ and 260 ℃.

Features:

Simple and compact appearance.
NPT threaded connection for easy installation of pressure gauge and pipe.
304 stainless steel has the characteristics of corrosion resistance and high temperature resistance.

Specification:

Model: CCHN-HNV-N08MF
Port Size: 1/2 inch
Structure: inner and outer thread
Pressure: 0-6000 psi
Temperature: -20 ℃ ~ + 260 ℃
Medium: oil, water, steam

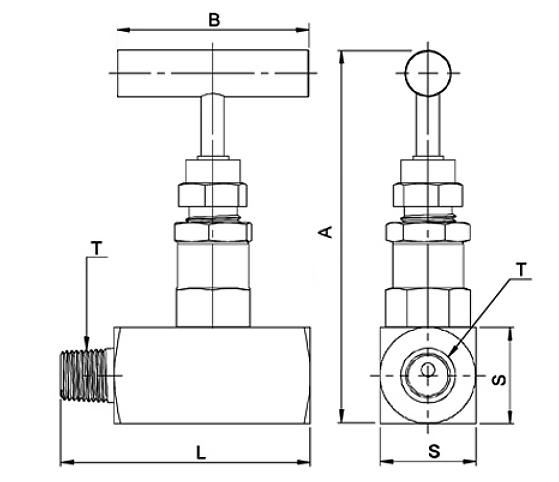

Dimension (Unit: mm)

Stainless steel globe valve dimension

Model	T	L	S	A	B
HNV-N08MF	NPT 1/2"	75	28	103	50

Tips: How to Choose Globe Valve?

Pneumatic high pressure globe valves should be selected for pipelines or devices with high temperature and high pressure media.
The direct flow globe valve should be selected on the pipeline where the convection resistance is not strict.
Small pneumatic globe valve can choose needle valve, instrument valve, sampling valve, pressure gauge valve, etc.
There is flow regulation or pressure regulation, but the adjustment accuracy is not high, and the pipe diameter is relatively small, such as nominal passage ≤50 mm pipeline, the best choice of pneumatic globe valve, electric globe valve.
