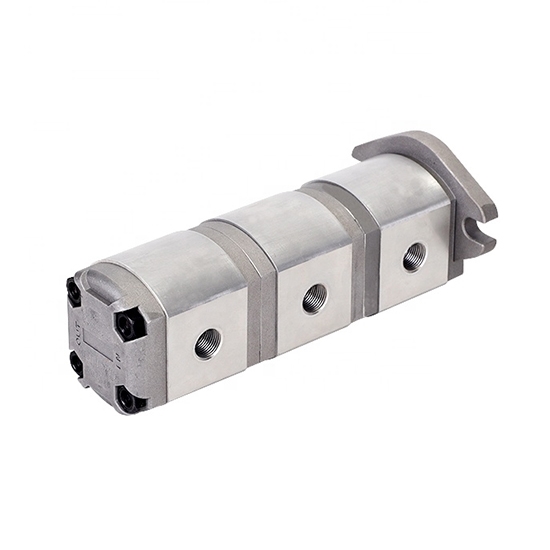

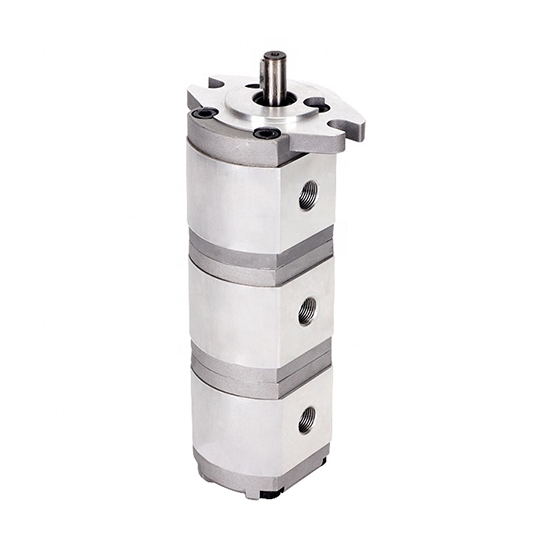

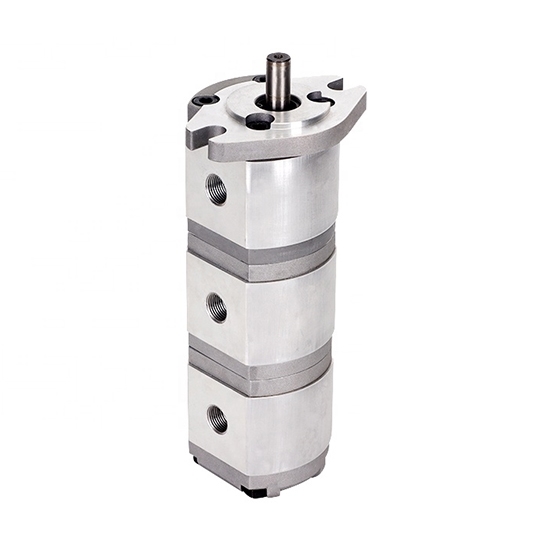

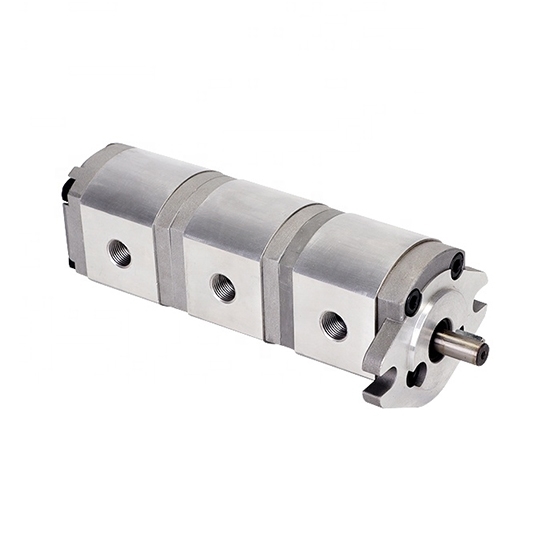

1/2/3 GPM Hydraulic Triple Gear Pump, 3600 psi

1/2/3 GPM Hydraulic Triple Gear Pump, 3600 psi

Hydraulic triple gear pump with 3 working pumps. Displacement 1/2/3 Max. GPM for selection, operating pressure 3000~3600 psi, rated speed 1800 rpm, maximum 4300 rpm, volumetric efficiency 88~91%, mechanical efficiency 85~88%, oil inlet/outlet thread 3/8 inch, clockwise/counterclockwise rotary. Professional manufacturer, competitive price.

SKU: CCHN-HTGP-124536

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Factory price hydraulic triple gear pump for sale. Displacement 1/2/3 Max. GPM, working pressure 3000~3600 psi, speed 1800~4300 rpm, clockwise or counterclockwise rotary is available, SAE 2-bolt flange mounted. Hydraulic triple gear pump has 3 working pumps. Wide applications: industrial/agricultural/commercial machinery, construction, environmental protection, chemical equipment and so on.

Specification

Model	CCHN-HGP-111A
Displacement	mL/ rev
	0.8	1	2	3	4	5	6	7.8
	Max. GPM (Gallon/min)
	0.4	0.5	1	1.4	1.9	2.4	2.8	3.7
Rated Speed	1800 rpm	1800 rpm	1800 rpm	1800 rpm	1800 rpm	1800 rpm	1800 rpm	1800 rpm
Max. Speed	4300 rpm	4300 rpm	4300 rpm	4300 rpm	3200 rpm	3200 rpm	3200 rpm	3200 rpm
Min. Speed	1000 rpm	1000 rpm	1000 rpm	600 rpm	600 rpm	600 rpm	600 rpm	600 rpm
Rated Pressure	3000 psi (21 MPa)
Max. Pressure	3600 psi (25 MPa)
Volumetric Efficiency	88%	88%	88%	91%	91%	91%	91%	91%
Mechanical Efficiency	85%	85%	85%	88%	88%	88%	88%	88%
Inlet Thread	PT 3/8"							PT 1/2"
Outlet Thread	PT 3/8"
Rotary Direction	clockwise, counterclockwise
Working Temperature	-20℃~70℃
Mounting Flange	SAE 2-bolt

Note:

Please use CCHN gear pump with sufficient oil, otherwise there is a risk of burnout!
Calculate the actual displacement value according to the formula: Gallon/min=displacement (ml/rev)*rated speed 1800rpm/3785.41L (speed variation range 500rpm-3000rpm).

Features

Hydraulic triple gear pump uses high-strength aluminum alloy shell and alloy steel hard gear transmission, which is light in weight and stable in transmission.
Installation of the hydraulic triple gear pump is SAE 2-bolt standard flange. Input shaft connection is woodruff key. Connection type of the oil inlet and outlet ports is thread.
Hydraulic triple gear pump has an automatic compensation mechanism for axial and radial clearances, which enables the oil pump to maintain high volumetric efficiency and high mechanical efficiency for a long time.
Hydraulic triple gear pump uses SP gears, with small fluctuation, high pressure, low noise and stable performance.
Hydraulic triple gear pump uses composite material bearings and high-performance sealing elements, has a small starting torque and good tightness, and can work efficiently under harsh working conditions.
The front and rear gear pumps work independently of each other, and any combination of displacements can be customized according to requirements.

1/2/3 GPM Hydraulic Triple Gear Pump Dimensions Diagram (Unit: mm)

Pump 1 Displacement (Max. GPM)	Pump 2 Displacement (Max. GPM)	Pump 3 Displacement (Max. GPM)	A (mm)	B (mm)	C (mm)	D (mm)	Weight (kg)
3.7	0.4	0.4	201.5	45.5	67	54	3.0
2.8	0.4	0.4	195.5	42.5	64	54	2. 9
2.4	0.4	0.4	191.5	40.5	62	54	2.8
3.7	0.5	0.5	205.5	45.5	68	56	3.1
2.8	0.5	0.5	199.5	42.5	65	56	3.0
2.4	0.5	0.5	195.5	40.5	63	56	2.9
3.7	1	1	210.5	45.5	69.5	58.5	3.3
2.8	1	1	204.5	42.5	66.5	58.5	3.2
2.4	1	1	200.5	40.5	64.5	58.5	3.1
3.7	1.4	1.4	221.5	45.5	72	64	3.4
2.8	1.4	1.4	215.5	42.5	69	64	3.4
2.4	1.4	1.4	211.5	40.5	67	64	3.3
0.4	0.4	0.4	175.5	32.5	54	54	2.5
0.5	0.5	0.5	181.5	33.5	56	56	2.7
1	1	1	189	34.8	58.5	58.5	2.9
1.4	1.4	1.4	205.5	37.5	64	64	3.2
1.9	1.9	1.9	212.5	38.5	66	66	3.2
2.4	2.4	2.4	207.5	40.5	70	61	3.0
2.8	2.8	2.8	215	42.5	74	63	3.2
3.7	3.7	3.7	227.5	45.5	80	65	3.4

*Note: the dimensions of other displacement combinations will not be listed one by one. Please contact us for more information.

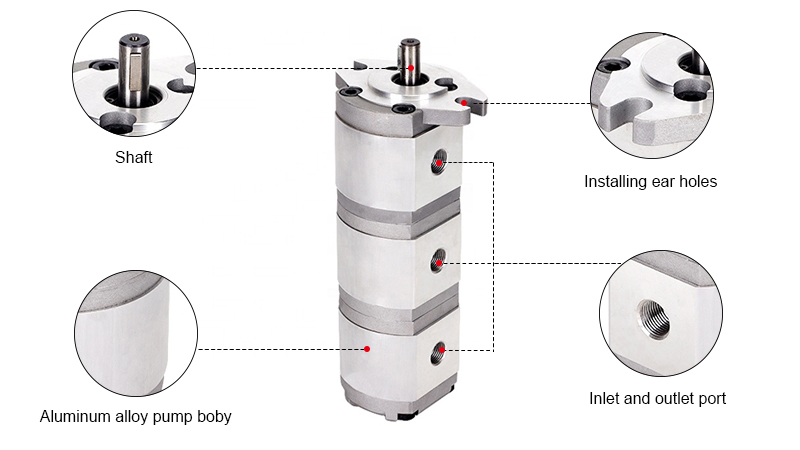

Details

Tips: Hydraulic triple gear pump maintenance.

According to the season, add or replace the hydraulic oil that meets the requirements to the specified oil level for the hydraulic triple gear pump. Take out the foreign matter in the oil pipe and tighten the bolt or nut of joint.
Replace the aging or damaged skeleton oil seal or O-shaped sealing rubber ring.
Replace worn gears or sleeves. If the wear degree slight, grind the end face smooth on flat plate. The allowable error of unevenness is 0.03mm, and the end face of the upper shaft sleeve is lower than the upper plane of the pump body (the normal value is lower than 0.10~0.15mm).
The unloading groove on shaft sleeve must be installed on the side of the low pressure chamber to eliminate the harmful dead volume generated when the gear meshes.
Before pressing in the self-tightening oil seal, a layer of lubricating oil should be applied to its surface. Note that the oil blocking edge faces the front cover and cannot be installed backwards.
After disassembling the hydraulic triple gear pump, thoroughly clean the pump body and internal parts before replacing the seals. Dip kerosene with fine sandpaper and gently push it flat, and then install a new seal.
