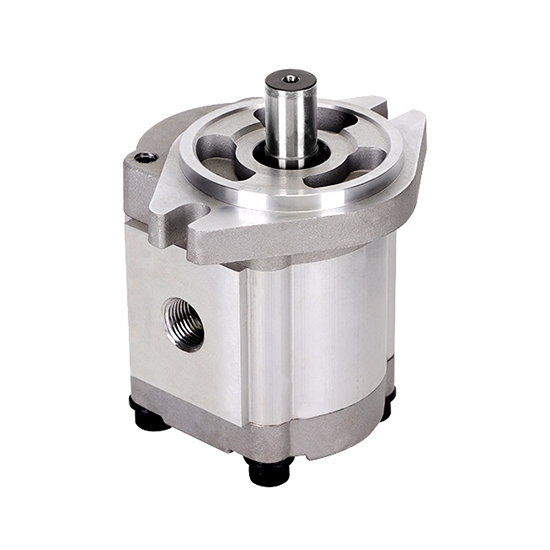

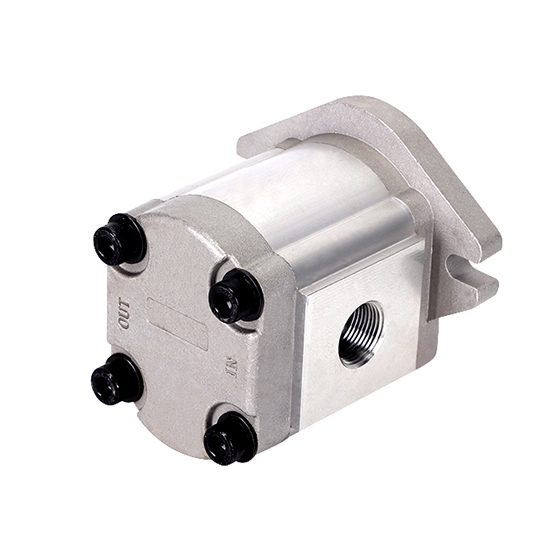

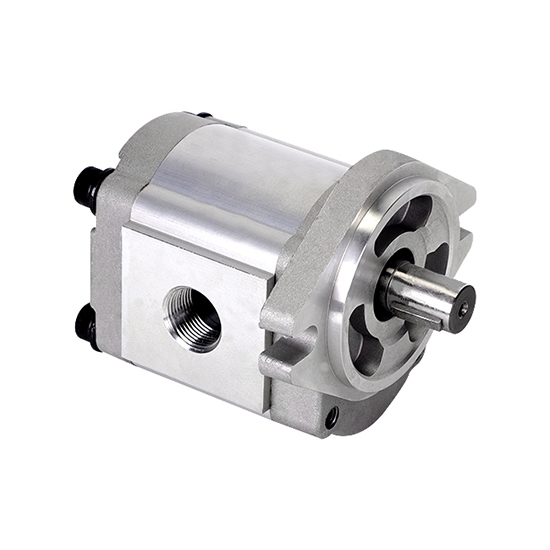

3/5/13/14 GPM Hydraulic Single Gear Pump, 3600 psi

3/5/13/14 GPM Hydraulic Single Gear Pump, 3600 psi

Buy hydraulic single gear pump at good price. Displacement 13/15/18/20 Max. GPM for selection, high pressure 3000~3600 psi, rated speed 1800 rpm, max 3500 rpm, max volumetric efficiency 93%, mechanical efficiency 90%, oil inlet port thread 3/4 inch, outlet 1/2 inch, clockwise or counterclockwise rotary, installation flange SAE 2-bolt. Industrial/commercial hydraulic pump, small size, lightweight.

SKU: CCHN-HGPP-3580

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Hydraulic single gear pump for sale. Available displacement 3/5/13/14 Max. GPM, maximum pressure 3600 psi, speed 500~3500 rpm, optional clockwise or counterclockwise rotary. The small hydraulic gear pump has applications in automobile, hardware, industrial machinery, textile, commercial machinery, chemical equipment, environmental protection, military industry, national defense, etc.

Specification

Model	CCHN-HGP-3A
Displacement	mL/ rev
	6	8.4	11	14.3	16.5	19.2	23	25	28	30
	Max. GPM (Gallon/min)
	3	4	5	7	8	9	11	12	13	14
Rated Speed	1800 rpm	1800 rpm	1800 rpm	1800 rpm	1800 rpm	1800 rpm	1800 rpm	1800 rpm	1800 rpm	1800 rpm
Max. Speed	3500 rpm	3500 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm
Min. Speed	700 rpm	700 rpm	600 rpm	600 rpm	500 rpm	500 rpm	500 rpm	500 rpm	500 rpm	500 rpm
Rated Pressure	3000 psi (21 MPa)
Max. Pressure	3600 psi (25 MPa)
Volumetric Efficiency	90%	90%	93%	93%	93%	93%	93%	93%	93%	93%
Mechanical Efficiency	88%	88%	88%	88%	88%	88%	88%	90%	90%	90%
Weight	2.3 kg	2.4 kg	2.6 kg	2.7 kg	2.8 kg	2.9 kg	3.1 kg	3.2 kg	3.3 kg	3.4 kg
Rotary Direction	clockwise, counterclockwise
Working Temperature	-20℃~70℃
Mounting Flange	SAE 2-bolt
Shaft Extension	φ 17.48mm flat key

Note:

Please use CCHN gear pump with sufficient oil, otherwise there is a risk of burnout!
Calculate the actual displacement value according to the formula: Gallon/min=displacement (ml/rev)*rated speed 1800rpm/3785.41L (speed variation range 500rpm-3000rpm).

Features

Hydraulic single gear pump uses high-strength aluminum alloy shell and alloy steel hard gear transmission, which is light in weight and stable in transmission.
Hydraulic single gear pump is suitable for SAE standard flange installation. The input shaft connection is woodruff key. Connection type of the oil inlet and outlet ports is thread.
Hydraulic single gear pump has an automatic compensation mechanism for axial and radial clearances, which enables the oil pump to maintain high volumetric efficiency and high mechanical efficiency for a long time.
Hydraulic single gear pump uses SP gears, with small fluctuation, high pressure, low noise and stable performance.
DU composite material bearings and high-performance sealing elements, small starting torque, good sealing performance, and strong anti-fouling ability, so that hydraulic single gear pump can work efficiently under harsh working conditions.

3/5/13/14 GPM Hydraulic Single Gear Pump Dimensions Diagram (Unit: mm)

Displacement	A	B	Oil Inlet	Oil Outlet
6 mL/ rev	105	50	3/4 inch	1/2 inch
8.4 mL/ rev	109	51.5
11 mL/ rev	113	54
14.5 mL/ rev	119	57
16.5 mL/ rev	123	59
19.2 mL/ rev	127	61
23 mL/ rev	134	65
25 mL/ rev	137	66
28 mL/ rev	141	68	1 inch	3/4 inch
30 mL/ rev	145	70	1 inch	3/4 inch

Details

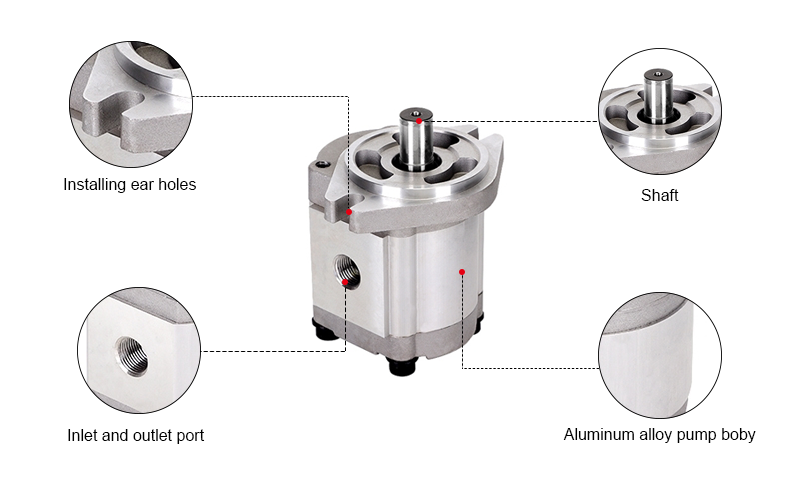

Hydraulic Single Gear Pump Details

Tips: Why does the hydraulic single gear pump have internal leakage?

Hydraulic single gear pump internal parts wear and tear will cause internal leakage. Among them, the large leakage area between the floating shaft sleeve and the gear end surface is the main part that cause internal leakage. This part of leakage accounts for about 50% to 70% of the total internal leakage. For the hydraulic single gear pump with internal leakage, its volumetric efficiency drops, and the output power is much lower than the input power. All of its losses are converted into heat, which will cause the hydraulic single gear pump to overheat. If the bonding plane is pressed tightly, a small amount of movement of the floating shaft sleeve during work will cause abrasion. As a result, the oil cylinder will rise slowly or cannot be lifted. Such floating shaft sleeves must be replaced or repaired.
