Lower cost AC gear motor & torque motor with gearbox, 3, 5, 6...200 21 different kinds of gear ratio for you to choose. It has 20 W power and 1350 rpm rated speed, works at 110V/ 220V AC single phase voltage. The torque and speed can be adjusted by changing the voltage of the motor because of the large starting torque.

SKU: CCHN-GEAR-AC20W

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

20W AC torque motor with high torque and low speed, will operate satisfactorily on 50 or 60 Hz. Our torque motor has high starting torque and sloping characteristics, allowing speed control simply by changing the voltage of the power supply. Special rotor provides excellent performance for holding, winding, and tensioning applications.

Specifications

Model	CCHN-5TK20GN-A		CCHN-5TK20GN-C
Shaft Type	Pinion Shaft
Power	20 W
Frequency	50 Hz	60 Hz	50 Hz	60 Hz
Rating at Locked rotor	5 Min Continuous	5 Min Continuous	5 Min Continuous	5 Min Continuous
Voltage	110V	110V	220V	220V
Starting Torque	363 mN.m	294 mN.m	363 mN.m	294 mN.m
Max. Output Power	20 W	20 W	20 W	20 W
Torque at Max. Output Power	224 mN.m	216 mN.m	224 mN.m	216 mN.m
Speed at Max. Output Power	750 r/min	900 r/min	750 r/min	900 r/min
Capacitor	15.0/250	12.0/250	3.5/450	3/450
Protection Grade	IP20
Weight	Motor: 2.4 Kg; Gear head: 1.35 Kg
Gearbox Model	5GN[]K
Gear Ratio	3, 3.6, 5, 6, 7.5, 9, 12.5, 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180,200 Enter the gear ratio into the box ([]) within the model name

Speed - Torque Characteristics (Reference Values)

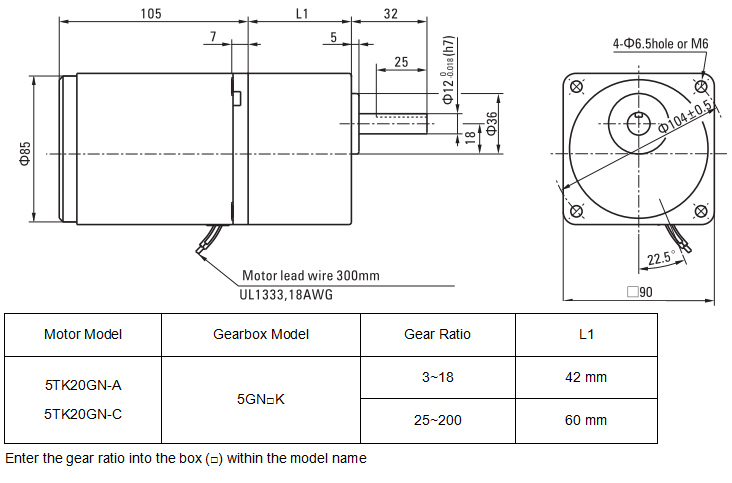

Dimensions (Unit=mm)

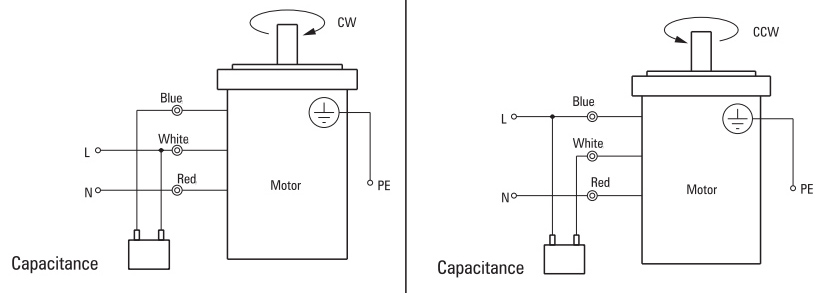

Wiring Diagram

Details

20W AC Gear Motor,Torque Motor with Gearbox Details

Tips: What is the starting torque, rated torque, maximum torque and overload capacity of a motor?

Starting torque. When the motor is started immediately after the power is turned on, the torque when the speed n = 0 and the slip s = 1 is called the starting torque of the motor.
Rated torque. The motor can work for a long time under the rated voltage and rated frequency. The maximum allowable torque output on the shaft is called the rated torque.
Maximum torque. The maximum torque produced by an electric motor is called the maximum torque of the motor. If the load torque is greater than the maximum torque of the motor, the motor can not start.
Overload capacity. The ratio of the maximum torque to the rated torque is called the overload capacity of the motor, which is an important data to measure the short time overload and operation stability of the motor. The motor's overload capacity is usually between 1.8 and 2.5 times.
