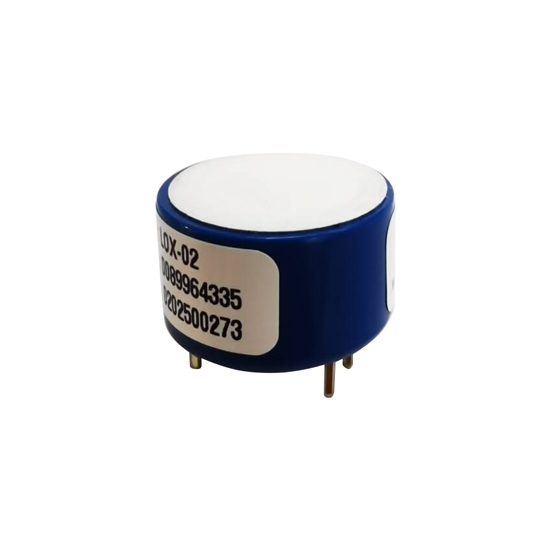

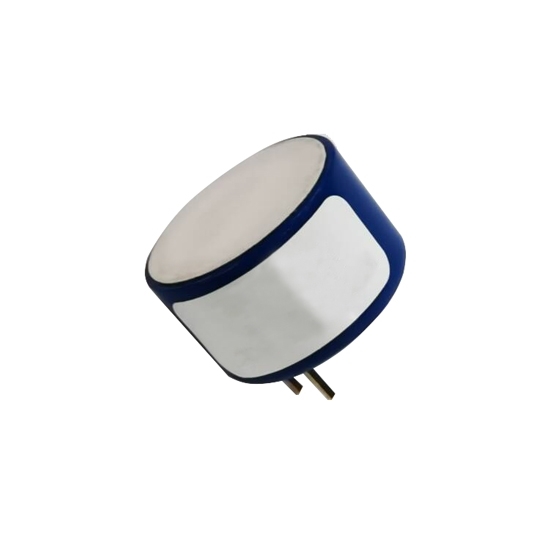

Fluorescent Oxygen Sensor, 0-300mbar, 0-25%

Fluorescent Oxygen Sensor, 0-300mbar, 0-25%

Good fluorescent oxygen sensor for sale. It is capable of measuring oxygen concentrations from 0 to 25% and oxygen partial pressures ranging from 0 to 300mbar. It operates within a voltage range of 4.5~5.5V and features an average current consumption of 7.5mA, with a peak current of 32mA. The sensor offers high precision, with an oxygen partial pressure accuracy of less than 2% FS and an atmospheric pressure accuracy of ±5mbar. Suitable for scenarios such as oxygen generators, incubators, oxygen concentrators.

SKU: CCHN-GS-O2-X4000

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

The fluorescent oxygen sensor measures 0-25% oxygen and 0-300mbar partial pressure, operating at 4.5~5.5V with 7.5mA average current. It is precise and ideal for oxygen devices, glove boxes, exhaust systems, and portable monitors.

Specification

Model	CCHN-LOX-O2
Operating Voltage	5VDC (4.5VDC min.~5.5VDC max.)
Operating Current	<7.5mA (streaming one sample per second),<20mA Peak
Oxygen Concentration Range	0~25%
Oxygen Partial Pressure Range	0~300mbar
Atmospheric Pressure Range	500~1200mbar
Oxygen Partial Pressure Accuracy	<2%FS
Atmospheric Pressure Accuracy	±5mbar
Operating Environment	10°C~45°C; 0~99%RH
Storage Environment	-30°C~60°C; 0~99%RH
Sensor Lifetime	>6 years

Feature

Long Lifespan: Designed for extended operational durability, ensuring reliable performance over time.
Non-Consumptive: Does not consume oxygen during measurement, making it ideal for long-term monitoring applications.
Eco-Friendly Design: Free from lead or other toxic materials, ensuring compliance with environmental standards and safe use.
Cross-Gas Immunity: Highly resistant to interference from other gases, ensuring accurate oxygen detection in complex environments.
Pressure and Temperature Compensation: Integrated compensation mechanisms for oxygen partial pressure and temperature variations, ensuring precise readings in fluctuating conditions.
Insensitive to Atmospheric Pressure Changes: Provides high accuracy without being affected by changes in atmospheric pressure.
Drift-Free Performance: Stable and reliable measurements with no signal drift over time, reducing the need for frequent recalibration.
Low Power Consumption: Optimized for energy-efficient operation, suitable for battery-powered and portable devices.
Rapid Response: Quickly detects and reports oxygen concentration changes, ideal for dynamic environments.

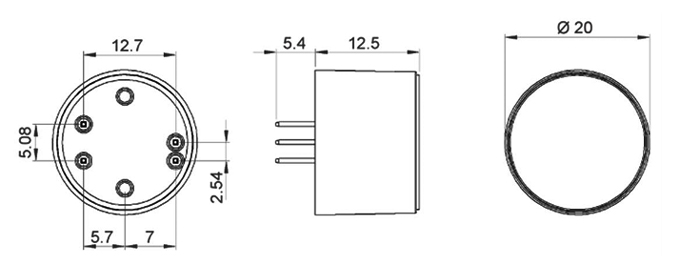

Size (Unit:mm)

Fluorescent oxygen sensor size

Interface Definition

Fluorescent oxygen sensor interface definition

Pin Number	Function
1	+5V
2	GND
3	UART TX
4	UART RX

Application

Fluorescent oxygen sensor application

Tips: Why is the sensor not affected by other gases?

The sensor's design incorporates a high level of cross-gas immunity, meaning it is selectively sensitive to oxygen molecules while ignoring other gases that might be present in the environment. This is achieved through its specialized fluorescence-based detection technology, which relies on oxygen-specific interactions rather than chemical reactions. This makes the sensor highly reliable in environments where multiple gases coexist, such as industrial processing plants, automotive exhaust monitoring, or inert gas chambers.
