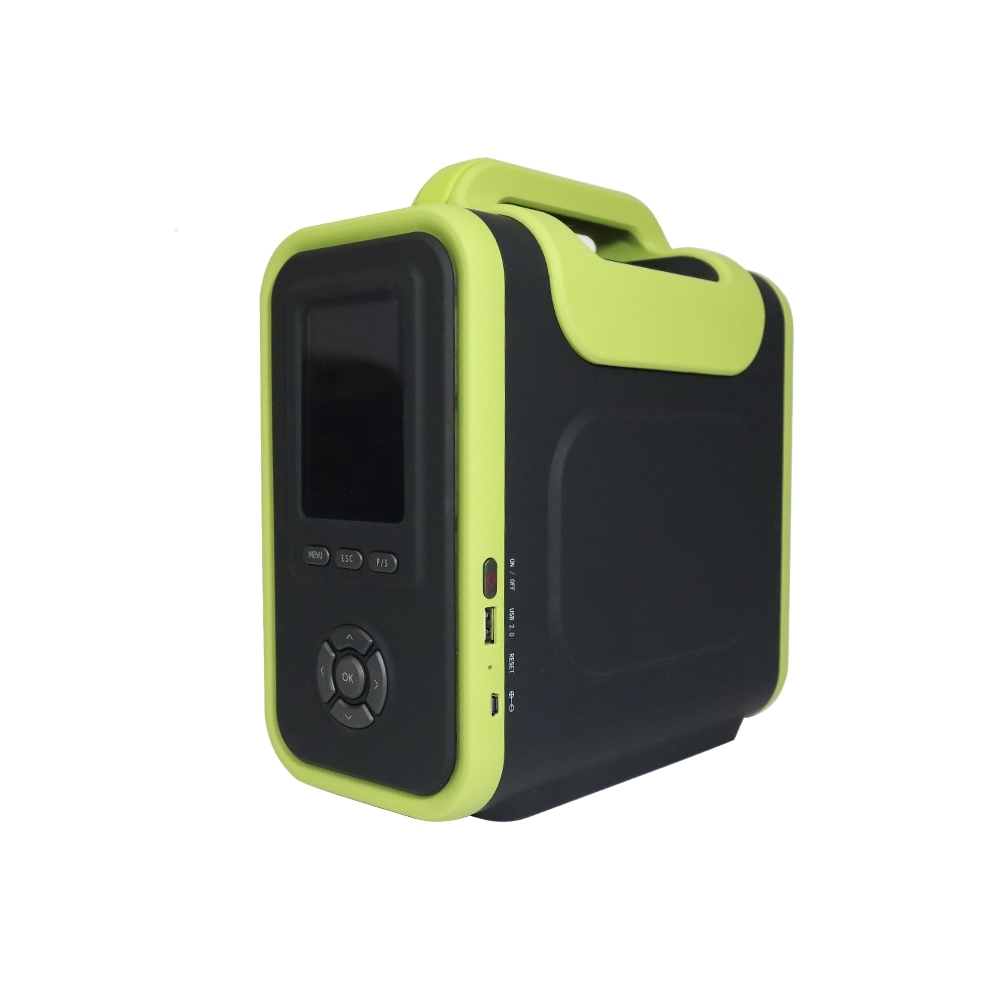

Portable Multi Gas Analyzer, NO2, SO2, CO, O3

Portable Multi Gas Analyzer, NO2, SO2, CO, O3

High accuracy multi gas analyzer can detect 4 gases of NO2 ( 0-10 ppm), SO2 (0-10 ppm), CO (0-20 ppm), O3 (0-10 ppm), high definition LCD display to show the measurement data, large capacity rechargeable Li-battery for long working time, compact and light design, portable and easy operation.

SKU: GD600-4GAS

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Features

Using world top brand sensors, to guarantee the test results reliable and accurate.
Multiple industrial pump gas sampling, ten grades of pumping flow rate for selection.
Multi-display mode is switchable.
Various gas concentration units can be shifted freely.
Modular internal structure (can be customized for 1-18 gases detection)
With an indepedent SD memory card, can view and delet the historical detection data.
High capacity rechargeable lithium polymer battery, long operation time and standby time
3.5-inch hd LCD screen and 120 degree wide view, beautiful and useful menu interface

Specification

Model	GD600-4GAS
Sampling Method	Pumping suction, 10 grades adjustable, flow rate range 0-500 mL/min.
Detection Principle	Electrochemistry
Detecting Gas *	NO2, SO2, CO, O3
Measure Range	NO2: 0 to 10 ppm, SO2: 0 to 10 ppm, CO: 0 to 20 ppm, O3: 0 to 10 ppm
Resolution	NO2: 0.001ppm, SO2: 0.001ppm, CO: 0.001ppm, O3: 0.001ppm
Accuracy	≤±2% F.S.
Data Storage	8G SD memory card
Alarm	Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm
Display	3.5 inch hd LCD display with resolution 320*480
Language	Chinese/English
Battery	Large capacity rechargeable lithium battery
Explosion-proof Grade	Ex ia llC T4
Protection Grade	IP65
Certification	CE, ATEX
Operating Temperature	-40℃~70℃
Operating Humidity	0~95%RH (non-condensing)
Dimension	260230120mm
Weight	3700g

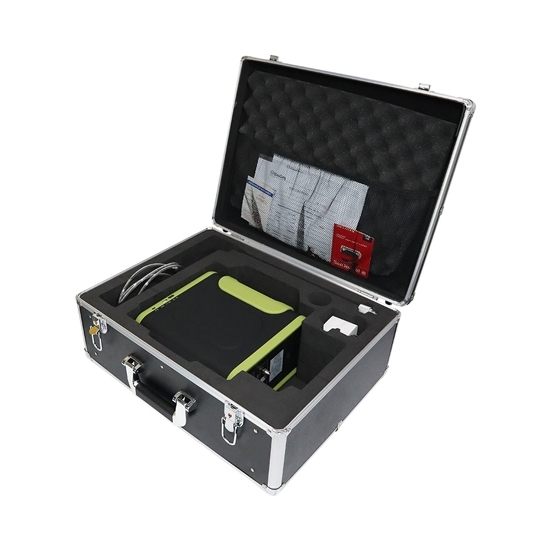

Standard Accessories	User manual, Micro-USB cable, Water vapour smoke filter, Intake sampling rod, 600mm tube, Carrying case
Optional Accessories *	Printer (built-in printer or external bluetooth printer), Pressure sensor, High temperature gun

Note:

* For the detected gas, it can be customized. This multi-gas analyzer can detect up to 18 gases simultaneously, such as combustible gas, O2, CO2, H2S, NH3, NO, VOC, and so on. If you have any requirements about the detectied gases and measuring range, please feel free to contact us.
* For the optional accessories, please contact us if you need it.

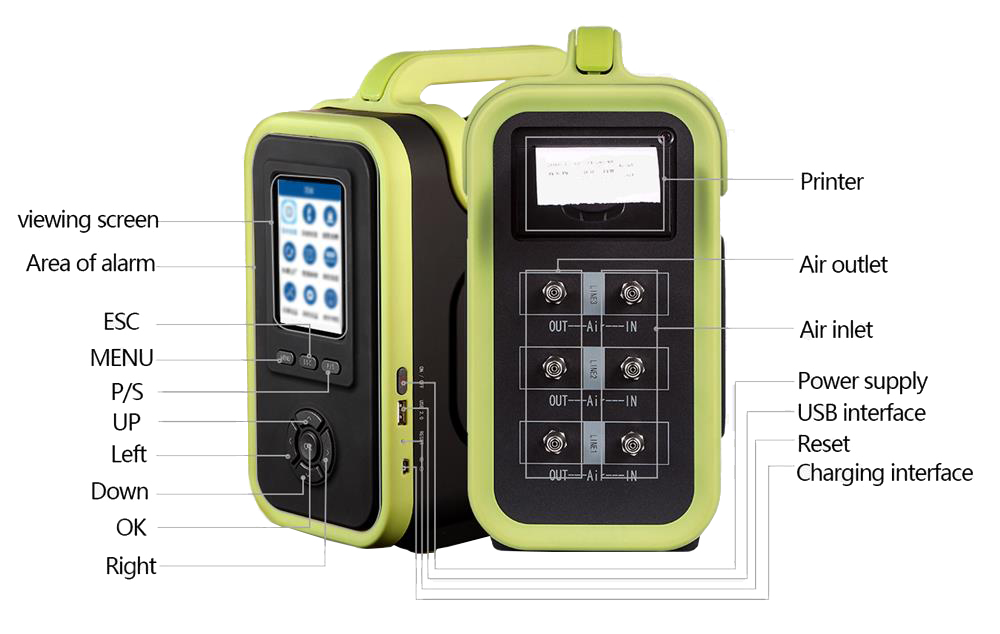

Details

Applications

Portable gas analyzer can be widely used in the university laboratory, research institute, large oil refinery, metallurgical plant, inspectation and quarantine bureau, hospital, mines, tunnel engineeringsite, etc.

Portable multi gas analyzer applications
