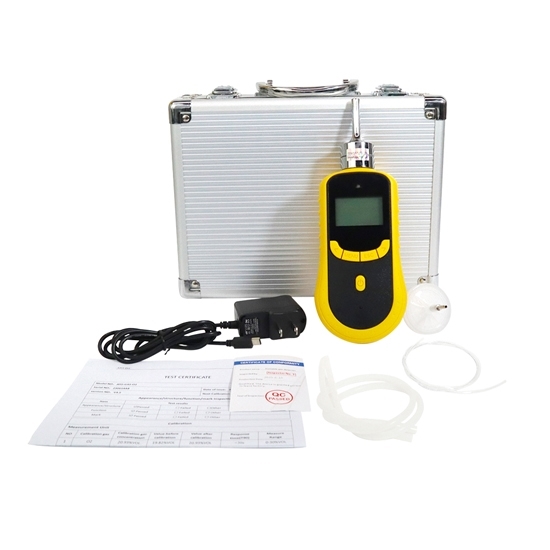

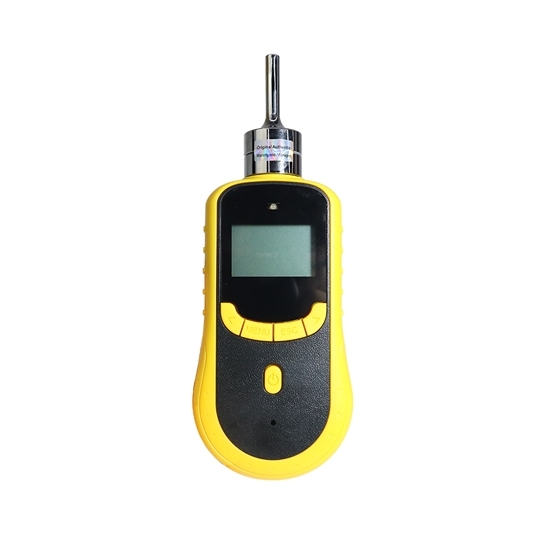

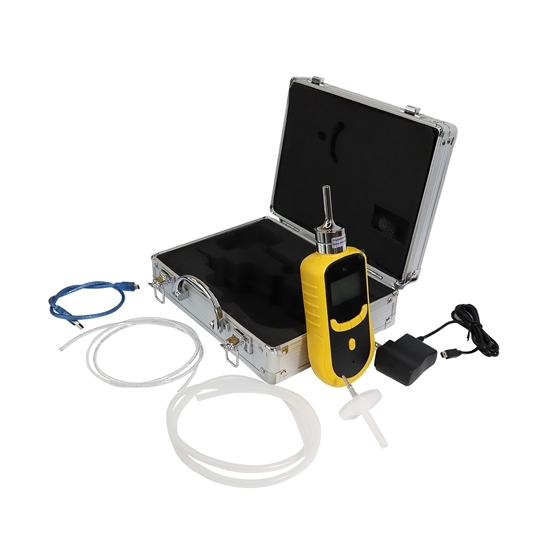

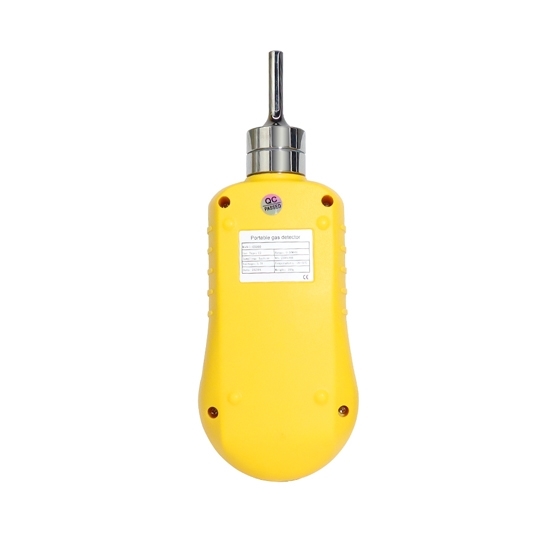

Portable Phosphine (PH3) Gas Detector, 0 to 5/10/20/50/100 ppm

Portable Phosphine (PH3) Gas Detector, 0 to 5/10/20/50/100 ppm

ATO low price phosphine PH3 gas detector is kind of mini size and high accuracy portable gas detector. Easy to operate, comprehensive functions, can measure phosphine, measure range from 0 to 5/10/20/50/100 ppm. The handheld PH3 gas detector is with back clip, protected by silicone case, suitable for different kinds of situations.

SKU: GD200-PH3

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Portable gas detector provides Phosphine PH₃ monitoring with high accuracy sensor, LCD display, easy readout, small & portable design, convenient to carry.

Specification

Model	GD200-PH3
Sampling Method	Pumping suction, flow rate can be up to 750ml/min
Detection Principle	Electrochemistry
Gas	Phosphine (PH3)
Range (Optional)*	0 to 5ppm, 0 to 10ppm, 0 to 20ppm, 0 to 50ppm, 0 to 100ppm, 0 to 500ppm, 0 to 1000ppm, 0 to 2000ppm, 0-3000ppm
Resolution	0.01ppm (0-5/10/20/50ppm), 0.1ppm (0-100ppm), 1ppm (0-500/1000/2000/3000ppm)
Accuracy	≤±3% F.S.
Response Time	≤10s
Repeatability	≤±1%
Recovery Time	≤10s
Linearity Error	≤±1%
Zero Shift	≤±1% (F.S./year)
Data Logging (Optional Function)	High speed data transmission by USB, available for data downloading and printing (The built-in IC card has about 2G memory, which can record 100,000 sets of data.)
Alarms	Sound, light and vibration
Display	LCD dot matrix display
Language	Chinese/English
Battery	3.7V rechargeable lithium battery, 3.7 Watt (Charger included: Input AC 100-240V 50/60Hz with optional USA, Europe or UK plug)
Operating Time	100h (Pump off)
Explosion-proof Grade	II 2G Ex ia IIC T4 Ga
Case Material	ABS+PC
Protection Grade	IP66
Certification	CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014)
Operating Temperature	-20℃~50℃
Operating Humidity	0~95%RH (non-condensing)
Operating Pressure	0.8~1.2bar
Dimension	2057532mm
Weight	300g
Warranty	12 months

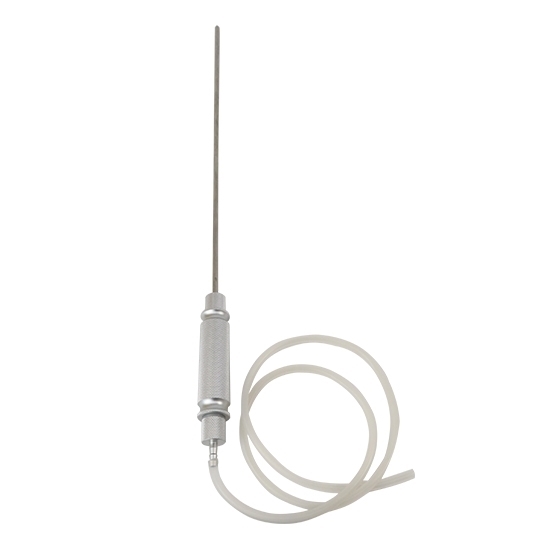

Extension Probe	About 480mm (Total Length), About 300mm (Probe Head)

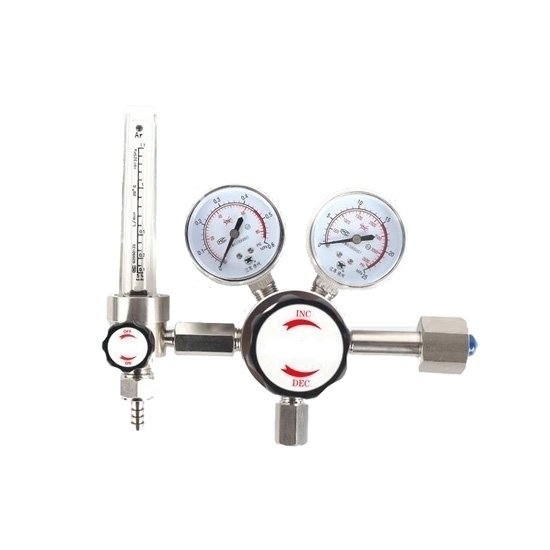

Accessories (Optional)	Calibration kit - gas pressure regulator (calibration gas cylinder NOT included) Body Material: Stainless steel Input Range of Pressure Gauge: 0-25MPa Output Range of Pressure Gauge: 0-0.6Mpa Gauge Class: 2.5 Input Pressure: ≤15MPa Output Pressure: ≤0.45MPa Rated Flow: 0.6 m³/h Connection: Inlet: W21.8-14 teeth/inch (levorotation, dextrorotation); Outlet: Ф6 flexible tube

Note:
* If you need a PH3 gas detector with other measuring ranges unlisted in above table, please contact us to inform your operating environment, so as to help you choose an appropriate one for your application.
* We also provide other common gas detectors, and you can refer to CCHN Gas Detector Catalog to get the specific gas type and measurement range. If you have any questions, please feel free to contact us.

*** Other Common Gases and Ranges Available for Portable Gas Detectors

Gas Type	Measure Range	Resolution
Ammonia (NH3)	0-10/20/50/100/200/500/1000/2000/5000ppm	0.01ppm/0.1ppm/1ppm
Benzene (C6H6)	0-1/5/10/20/50/100/200/500/1000/2000/5000/10000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Carbon Dioxide (CO2)	0-1000/2000/5000/10000/20000/50000ppm, 0-10%/20%/30%/50%/100% VOL	1ppm, 0.01% VOL
Carbon Monoxide (CO)	0-10/20/50/100/500/1000/2000ppm	0.001ppm/0.01ppm/1ppm
Chlorine (Cl2)	0-5/10/20/50/100/200ppm	0.001ppm/0.01ppm/0.1ppm
Chlorine Dioxide (ClO2)	0-1/5/10/20/50/100ppm	0.001ppm/0.01ppm/0.1ppm
Ethylene (C2H4)	0-10/20/50/100/500/1000/2000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Flammable	0-100% LEL	1% LEL
Formaldehyde (CH2O)	0-10/20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Hydrocarbons (HC)	0-100% LEL	1% LEL
Hydrogen (H2)	0-10/20/100/500/1000/2000/3000/5000/10000/20000/40000ppm, 0-4% VOL	0.001ppm/0.01ppm/0.1ppm/1ppm, 0.001% VOL
Hydrogen Chloride (HCl)	0-10/20/50/100/200/500/1000/2000ppm	0.01ppm/0.1ppm/1ppm
Hydrogen Cyanide (HCN)	0-10/20/50/100ppm	0.01ppm/0.1ppm
Hydrogen Fluoride (HF)	0-1/5/10/50ppm	0.001ppm/0.01ppm
Hydrogen Sulfide (H2S)	0-5/10/20/50/100/200/500/1000/2000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Methane (CH4)	0-100% LEL, 0-50%/100% VOL	1% LEL, 0.01%VOL
Methyl Bromide (CH3Br)	0-50/100/200/500/1000/2000/3000ppm	0.1ppm/1ppm
Nitric Oxide (NO)	0-20/50/100/250/500/1000ppm	0.01ppm/0.1ppm/1ppm
Nitrogen (N2)	0-99.99%/100% VOL	0.01% VOL
Nitrogen Dioxide (NO2)	0-20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Oxygen (O2)	0-25%/30%/100% VOL	0.01% VOL
Ozone (O3)	0-1/5/10/20/50/100/200/500/1000/2000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Phosgene (COCl2)	0-1/5/10ppm	0.001ppm
Phosphine (PH3)	0-10/20/50/100/500/1000/2000/3000ppm	0.01ppm/0.1ppm/1ppm
Sulfur Dioxide (SO2)	0-20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Sulfur Hexafluoride (SF6)	0-1000/2000/3000ppm	1ppm
Volatile Organic Compounds (VOC)	0-1/5/10/20/100ppm	0.01ppm/0.1ppm

Details

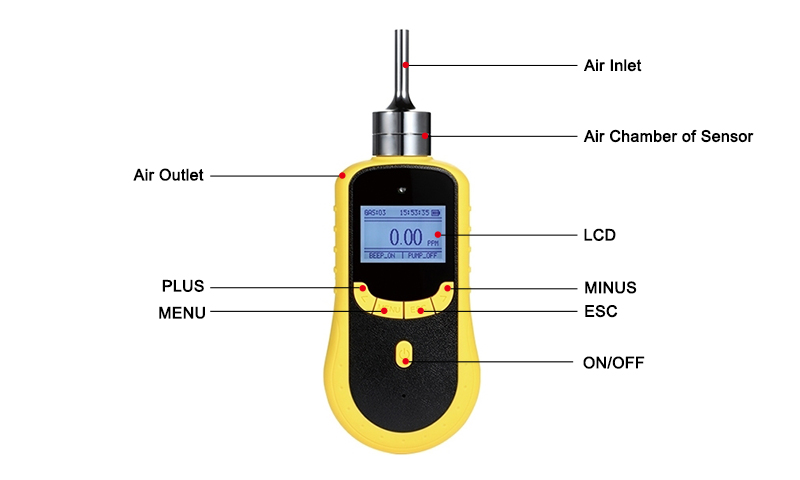

Portable Phosphine (PH3) Gas Detector Details

Application

Applications of Portable Multi Gas Detector

Tips: CCHN gas detector advantages

Small size, easy to carry, good quality and low price Portable gas detectors are usually small in size, so they are very convenient to carry and can be used at any time. In addition, high-quality portable gas detectors mainly use high-performance sensors, and high sensitivity is its most significant feature. This portable gas detector can visually display the gas concentration on site, and the standby time is longer than other products of the same type.
Start-up detection, no need to set parameters. Before the factory leaves the factory, the parameters and values in the portable gas detector have been set, and the customer only needs to start the detection.
Strong adaptability and wide range of applications. Portable gas detectors can also be used in places that people cannot enter or cannot reach. Equipped with an external pump, this avoids the danger of letting the staff go to the detection first. The design of the pump extension pipe can be used in places such as cold rooms, refrigeration workshops, tunnels and other closed places where toxic gas leaks. In addition, the portable gas detector also adopts a waterproof, dustproof and explosion-proof design, and cooperates with a replaceable in-line gas sensing module, making it an ideal tool for safety detection on the job site today.
Simple calibration steps General professional portable gas detectors have the characteristics of simple calibration steps. During the detection process, technicians only need to use the magnetic programming tool to start the calibration process. The detector will automatically start calibration as soon as the gas is supplied, and if the signal has started to be in a relatively stable state, the combustible gas detector will record the initial data and prompt the technician to disconnect the gas source.
