Portable Oxygen (O2) Gas Detector, 0 to 30% Vol

Portable Oxygen (O2) Gas Detector, 0 to 30% Vol

Portable oxygen detector, ideal for monitoring O2 gas concentration in the range of 0 to 30% Vol or 0 to 100% Vol, with sound, light and vibrating alarm, light and compact, easy to setting and operation, long working time with large capacity battery, high accuracy and low price.

SKU: GD200-O2

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Portable O2 gas detector is used to monitor 0 to 30% Vol or 100% Vol oxygen concetration, widely used for laboratories, research institutions, vehicle battery industry, confined space and so on.

Features

LCD dot matrix display, direct readout of gas type, unit, concentration, local time, etc.
Support English/Chinese operation, easy to shift.
Gas concentration unit PPM and mg/m³can be shift quickly.
Built-in micro-sampling pump, 10 grades of suction are available.
Explosion-proof certification

Gas Detector Functions

With self-calibration and zero calibration functions, makes the detection more accurate and reliable.
One key to restore factory setting, free from maloperation.
With temperature and pressure compensation, able to realize the compensation for the gas concentration under different temperature and pressure environments.
Two-stage alarm with sound and light, and alarm point is settable.
Rechargeable lithiumpolymer battery with large capacity.
High-strength special engineering plastic housing, with anti-slip, waterproof, dustproof and explosion-proof.

Specification

Model	GD200-O2
Sampling Method	Pumping suction, flow rate can be up to 750ml/min
Detection Principle	Electrochemistry
Gas	Oxygen (O2)
Range (Optional)*	0 to 25% VOL, 0 to 30% VOL, 0 to 100% VOL
Resolution	0.01% VOL
Accuracy	≤±3% F.S.
Response Time	≤10s
Repeatability	≤±1%
Recovery Time	≤10s
Linearity Error	≤±1%
Zero Shift	≤±1% (F.S./year)
Data Logging (Optional Function)	High speed data transmission by USB, available for data downloading and printing (The built-in IC card has about 2G memory, which can record 100,000 sets of data.)
Alarms	Sound, light and vibration
Display	LCD dot matrix display
Language	Chinese/English

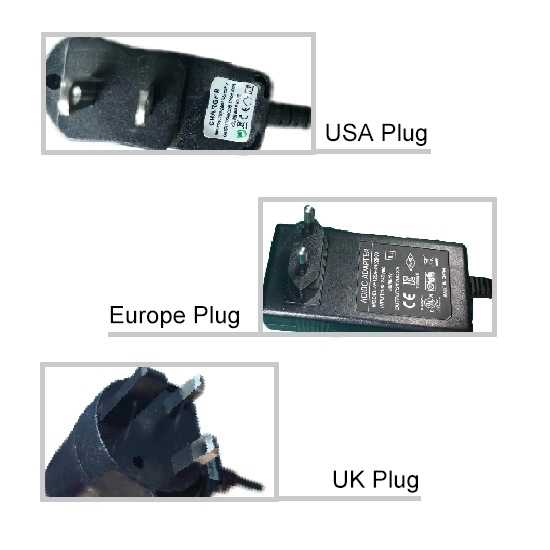

Battery	3.7V rechargeable lithium battery, 3.7 Watt (Charger included: Input AC 100-240V 50/60Hz with optional USA, Europe or UK plug)
Operating Time	100h (Pump off)
Explosion-proof Grade	II 2G Ex ia IIC T4 Ga
Case Material	ABS+PC
Protection Grade	IP66
Certification	CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014)
Operating Temperature	-20℃~50℃
Operating Humidity	0~95%RH (non-condensing)
Operating Pressure	0.8~1.2bar
Dimension	2057532mm
Weight	300g
Warranty	12 months

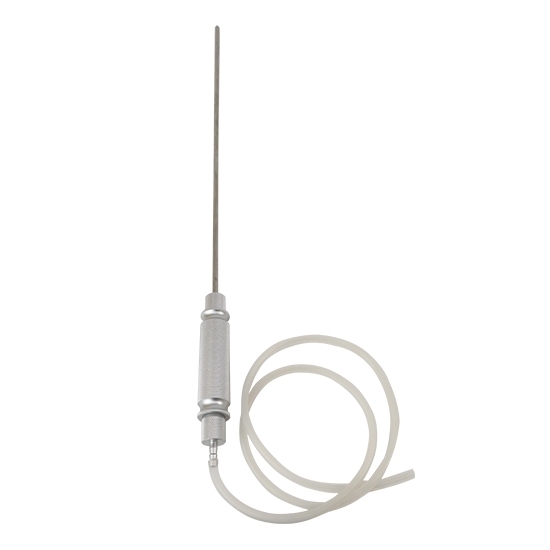

Extension Probe	About 480mm (Total Length), About 300mm (Probe Head)

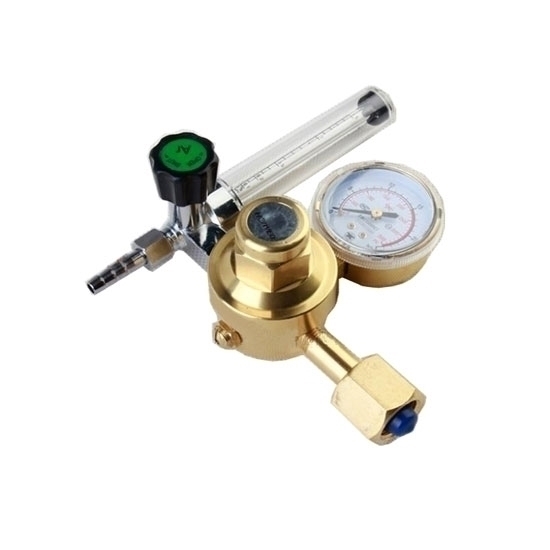

Accessories (Optional)	Calibration kit - gas pressure regulator (calibration gas cylinder NOT included) Body Material: Brass Max. Input Pressure: ≤15MPa Max. Output Pressure: 0.25MPa Flowmeter Range: 0.1-1.5 L/min Mounting Connection: Inlet port: W21.8-14; Outlet port: Ф6 flexible tube

Note:
* If you need a O2 gas detector with other measuring ranges unlisted in above table, please contact us to inform your operating environment, so as to help you choose an appropriate one for your application.
* We also provide other common gas detectors, and you can refer to CCHN Gas Detector Catalog to get the specific gas type and measurement range. If you have any questions, please feel free to contact us.

*** Other Common Gases and Ranges Available for Portable Gas Detectors

Gas Type	Measure Range	Resolution
Ammonia (NH3)	0-10/20/50/100/200/500/1000/2000/5000ppm	0.01ppm/0.1ppm/1ppm
Benzene (C6H6)	0-1/5/10/20/50/100/200/500/1000/2000/5000/10000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Carbon Dioxide (CO2)	0-1000/2000/5000/10000/20000/50000ppm, 0-10%/20%/30%/50%/100% VOL	1ppm, 0.01% VOL
Carbon Monoxide (CO)	0-10/20/50/100/500/1000/2000ppm	0.001ppm/0.01ppm/1ppm
Chlorine (Cl2)	0-5/10/20/50/100/200ppm	0.001ppm/0.01ppm/0.1ppm
Chlorine Dioxide (ClO2)	0-1/5/10/20/50/100ppm	0.001ppm/0.01ppm/0.1ppm
Ethylene (C2H4)	0-10/20/50/100/500/1000/2000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Flammable	0-100% LEL	1% LEL
Formaldehyde (CH2O)	0-10/20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Hydrocarbons (HC)	0-100% LEL	1% LEL
Hydrogen (H2)	0-10/20/100/500/1000/2000/3000/5000/10000/20000/40000ppm, 0-4% VOL	0.001ppm/0.01ppm/0.1ppm/1ppm, 0.001% VOL
Hydrogen Chloride (HCl)	0-10/20/50/100/200/500/1000/2000ppm	0.01ppm/0.1ppm/1ppm
Hydrogen Cyanide (HCN)	0-10/20/50/100ppm	0.01ppm/0.1ppm
Hydrogen Fluoride (HF)	0-1/5/10/50ppm	0.001ppm/0.01ppm
Hydrogen Sulfide (H2S)	0-5/10/20/50/100/200/500/1000/2000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Methane (CH4)	0-100% LEL, 0-50%/100% VOL	1% LEL, 0.01%VOL
Methyl Bromide (CH3Br)	0-50/100/200/500/1000/2000/3000ppm	0.1ppm/1ppm
Nitric Oxide (NO)	0-20/50/100/250/500/1000ppm	0.01ppm/0.1ppm/1ppm
Nitrogen (N2)	0-99.99%/100% VOL	0.01% VOL
Nitrogen Dioxide (NO2)	0-20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Oxygen (O2)	0-25%/30%/100% VOL	0.01% VOL
Ozone (O3)	0-1/5/10/20/50/100/200/500/1000/2000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Phosgene (COCl2)	0-1/5/10ppm	0.001ppm
Phosphine (PH3)	0-10/20/50/100/500/1000/2000/3000ppm	0.01ppm/0.1ppm/1ppm
Sulfur Dioxide (SO2)	0-20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Sulfur Hexafluoride (SF6)	0-1000/2000/3000ppm	1ppm
Volatile Organic Compounds (VOC)	0-1/5/10/20/100ppm	0.01ppm/0.1ppm

Details

Tips: How to Choose the Measuring Range of Oxygen Gas Detector?

Oxygen concentration in the air is 20.9%VOL. Checking whether the oxygen content is up to the standard or not, we generally select an oxygen (O₂) detector with a range of 0~20%VOL or 0~30%VOL. Such a measuring range can meet most demands, and it’s also the most common range. CCHN portable oxygen detector is avaliable for 0 to measuring range of 30% Vol to meet the most common requirements.

In some cases, the oxygen concentration will also be tested, such as testing the purity of oxygen in oxygen bottle, then an oxygen detector with a range of 0~100%VOL is chosen. The precision can be customized, which is generally 0.1%VOL and 0.01%VOL. As for the special case that oxygen concentration is far below the normal value, such as the anaerobic incubator and smoke, the oxygen concentration is quite low, thus a range of 0~5%VOL is generally selected.
