Portable Nitric Oxide (NO) Gas Detector, 0 to 20/50/100 ppm

Portable Nitric Oxide (NO) Gas Detector, 0 to 20/50/100 ppm

Favorable price Nitric Oxide (NO) Gas Detector for sale. Optional measuring range 0 to 20/50/100/250 ppm, light weight and compact size, portable and convenient to transport. Give sound, light and vibration alarm for NO gas leak, fast response and accurate detection.

SKU: GD200-NO

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Portable Nitric Oxide (NO) gas leak detector draws the gas by built-in micro pump and comes in the measuring range 0 to 20/50/100 ppm for choice, fast response, precision measurement and affordable price.

Features

LCD dot matrix display, direct readout of gas type, unit, concentration, local time, etc.
Support English/Chinese operation, easy to shift.
Gas concentration unit PPM and mg/m³can be shift quickly.
Built-in micro-sampling pump, 10 grades of suction are available.
Explosion-proof certification

Gas Detector Functions

With self-calibration and zero calibration functions, makes the detection more accurate and reliable.
One key to restore factory setting, free from maloperation.
With temperature and pressure compensation, able to realize the compensation for the gas concentration under different temperature and pressure environments.
Two-stage alarm with sound and light, and alarm point is settable.
Rechargeable lithiumpolymer battery with large capacity.
High-strength special engineering plastic housing, with anti-slip, waterproof, dustproof and explosion-proof

Specification

Model	GD200-NO
Sampling Method	Pumping suction, flow rate can be up to 750ml/min
Detection Principle	Electrochemistry
Gas	Nitric Oxide (NO)
Range (Optional) *	0 to 20ppm, 0 to 50ppm, 0 to 100ppm, 0 to 250ppm, 0 to 500ppm, 0 to 1000ppm
Resolution	0.01ppm (0-20/50ppm), 0.1ppm (0-100/250ppm), 1ppm (0-500ppm/1000ppm)
Accuracy	≤±3% F.S.
Response Time	≤10s
Repeatability	≤±1%
Recovery Time	≤10s
Linearity Error	≤±1%
Zero Shift	≤±1% (F.S./year)
Data Logging (Optional Function)	High speed data transmission by USB, available for data downloading and printing (The built-in IC card has about 2G memory, which can record 100,000 sets of data.)
Alarms	Sound, light and vibration
Display	LCD dot matrix display
Language	Chinese/English

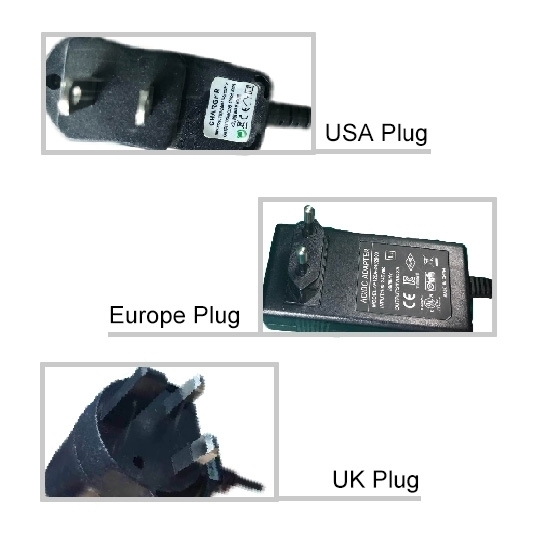

Battery	3.7V rechargeable lithium battery, 3.7 Watt (Charger included: Input AC 100-240V 50/60Hz with optional USA, Europe or UK plug)
Operating Time	100h (Pump off)
Explosion-proof Grade	II 2G Ex ia IIC T4 Ga
Case Material	ABS+PC
Protection Grade	IP66
Certification	CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014)
Operating Temperature	-20℃~50℃
Operating Humidity	0~95%RH (non-condensing)
Operating Pressure	0.8~1.2bar
Dimension	2057532mm
Weight	300g
Warranty	12 months

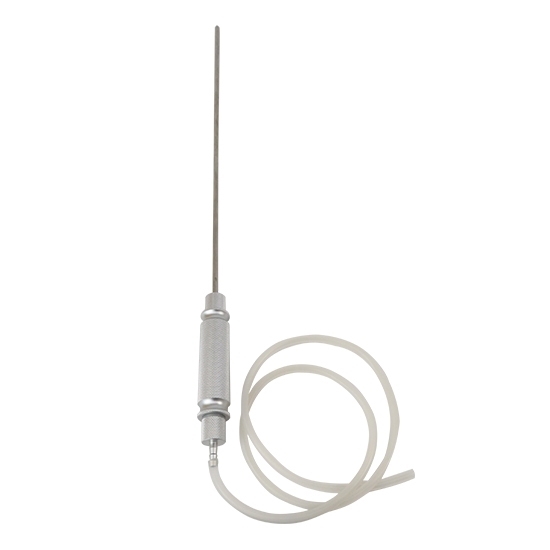

Extension Probe	About 480mm (Total Length), About 300mm (Probe Head)

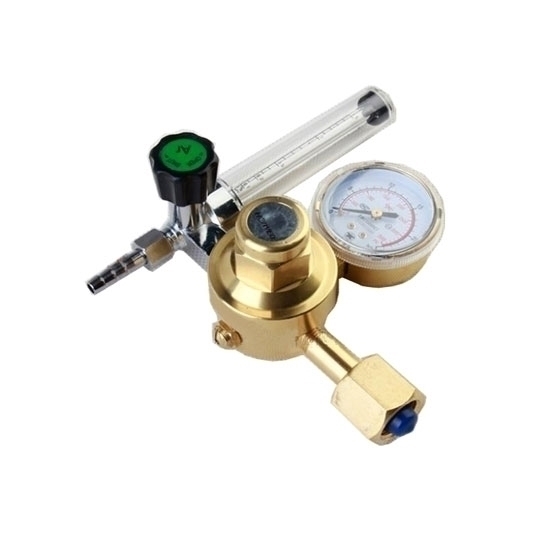

Accessories (Optional)	Calibration kit - gas pressure regulator (calibration gas cylinder NOT included) Body Material: Brass Max. Input Pressure: ≤15MPa Max. Output Pressure: 0.25MPa Flowmeter Range: 0.1-1.5 L/min Mounting Connection: Inlet port: W21.8-14; Outlet port: Ф6 flexible tube

Note:
* If you need a NO detector with other measuring ranges unlisted in above table, please contact us to inform your operating environment, so as to help you choose an appropriate one for your application.
* We also provide other common gas detectors, and you can refer to CCHN Gas Detector Catalog to get the specific gas type and measurement range. If you have any questions, please feel free to contact us.

*** Other Common Gases and Ranges Available for Portable Gas Detectors

Gas Type	Measure Range	Resolution
Ammonia (NH3)	0-10/20/50/100/200/500/1000/2000/5000ppm	0.01ppm/0.1ppm/1ppm
Benzene (C6H6)	0-1/5/10/20/50/100/200/500/1000/2000/5000/10000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Carbon Dioxide (CO2)	0-1000/2000/5000/10000/20000/50000ppm, 0-10%/20%/30%/50%/100% VOL	1ppm, 0.01% VOL
Carbon Monoxide (CO)	0-10/20/50/100/500/1000/2000ppm	0.001ppm/0.01ppm/1ppm
Chlorine (Cl2)	0-5/10/20/50/100/200ppm	0.001ppm/0.01ppm/0.1ppm
Chlorine Dioxide (ClO2)	0-1/5/10/20/50/100ppm	0.001ppm/0.01ppm/0.1ppm
Ethylene (C2H4)	0-10/20/50/100/500/1000/2000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Flammable	0-100% LEL	1% LEL
Formaldehyde (CH2O)	0-10/20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Hydrocarbons (HC)	0-100% LEL	1% LEL
Hydrogen (H2)	0-10/20/100/500/1000/2000/3000/5000/10000/20000/40000ppm, 0-4% VOL	0.001ppm/0.01ppm/0.1ppm/1ppm, 0.001% VOL
Hydrogen Chloride (HCl)	0-10/20/50/100/200/500/1000/2000ppm	0.01ppm/0.1ppm/1ppm
Hydrogen Cyanide (HCN)	0-10/20/50/100ppm	0.01ppm/0.1ppm
Hydrogen Fluoride (HF)	0-1/5/10/50ppm	0.001ppm/0.01ppm
Hydrogen Sulfide (H2S)	0-5/10/20/50/100/200/500/1000/2000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Methane (CH4)	0-100% LEL, 0-50%/100% VOL	1% LEL, 0.01%VOL
Methyl Bromide (CH3Br)	0-50/100/200/500/1000/2000/3000ppm	0.1ppm/1ppm
Nitric Oxide (NO)	0-20/50/100/250/500/1000ppm	0.01ppm/0.1ppm/1ppm
Nitrogen (N2)	0-99.99%/100% VOL	0.01% VOL
Nitrogen Dioxide (NO2)	0-20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Oxygen (O2)	0-25%/30%/100% VOL	0.01% VOL
Ozone (O3)	0-1/5/10/20/50/100/200/500/1000/2000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Phosgene (COCl2)	0-1/5/10ppm	0.001ppm
Phosphine (PH3)	0-10/20/50/100/500/1000/2000/3000ppm	0.01ppm/0.1ppm/1ppm
Sulfur Dioxide (SO2)	0-20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Sulfur Hexafluoride (SF6)	0-1000/2000/3000ppm	1ppm
Volatile Organic Compounds (VOC)	0-1/5/10/20/100ppm	0.01ppm/0.1ppm

Details

Applications

The NO gas detector is used to detect the nitric oxide gas leak, suitable for petroleum, chemical, coal, metallurgy, pharmaceutical and other places involving hazardous gases such as nitric oxide.

NO Gas Detector Applications

Tips:

Nitric oxide (NO) is a kind of colorless, odorless, toxic gas that is insoluble in water. Since nitric oxide contains free radicals, this makes its chemical properties very active. When it reacts with oxygen, it can form a corrosive gas-nitrogen dioxide (NO2) that can react with water to form nitric acid. In industrial production, boiler exhaust gas, pipeline desulfurization and denitrification waste gas, and the plant environment are need to be monitored where there is NO leakage in real time. It is also needed for the environmental protection bureau to real-time monitor the enterprise nitric oxide gas emissions. At this time, it is very meaningful to use an industrial nitric oxide gas detector to monitor nitric oxide (NO).

The nitric oxide (NO) detector can be a single gas detector or multi-gas detector which is also equipped with other gas sensor like oxygen sensor, LEL sensor and so on, to detect the concentration of NO in the air. It is selected according to the actual requirements.

CCHN portable nitric oxide gas detector adopts a pumping sampling method and uses a high-precision electrochemical sensor with excellent sensitivity and high repeatability. With on-site sound and light alarm function, the detector will give an instant alarm when the gas concentration exceeds the standard value, safeguard the workers at dangerous field operations.
