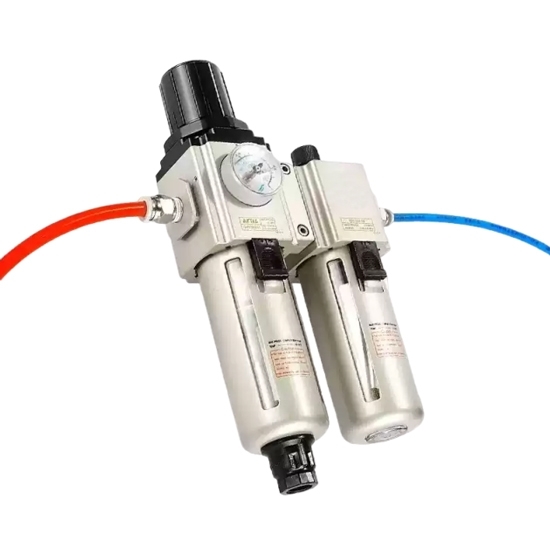

1" FRL Filter Regulator Lubricator

Factory price filter regulator lubricator combo is FRL combination unit used for delivering compressed air in pneumatic system, equipped with reflux valve and moisture trap. Metal bowl, 1 inch port size, selectable PT, G, NPT thread type.

SKU: CCHN-ACWS-1

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Filter regulator lubricator consists of pneumatic FRL unit for air compressors. It is used to purify and filter the air source into the pneumatic device and reduce the pressure to the rated air source pressure supplied by the instrument, which is equivalent to the function of the power transformer in the circuit.

Features

Quick and reliable mounting clamps makes it convenient to install and use.
The performance of pressure adjustment is reliable with high precision.
The efficiency of eliminating moisture and solid grain is high.

Specification

Model	CCHN-GAFC600-25
Fluid	Air
Pressure Type (Optional)	Standard (0.9 MPa)
Drain Type (Optional)	Semi-auto Drain, Manual Drain, Automatic Drain
Port Size	1"
Thread Type (Optional)	PT Thread (Scale: MPa, PSI) G Thread (Scale: MPa, Bar) NPT Thread (Scale: PSI, Bar)
Filtering grade (Optional)	40μm or 5μm
Bowl Material	Metal
Pressure range	0.15-0.9 MPa (20-130 PSI)
Max.pressure	1.0 MPa (145 PSI)
Proof pressure	1.5 MPa (215 PSI)
Temperature range	-5~70 ℃ (Unfreeze)
Capacity of drain bowl	205 CC
Capacity of oil bowl	410 CC
Recommended lubricant	ISO VG 32 or equivalent
Weight	3.4 kg

Details

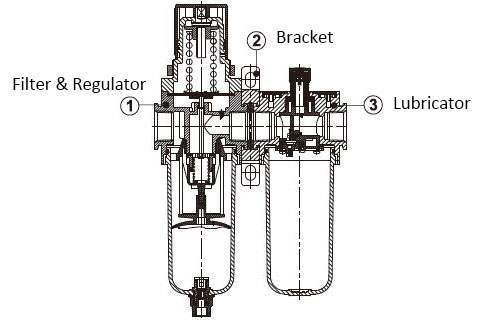

Details of 1 inch FRL Filter Regulator Lubricator

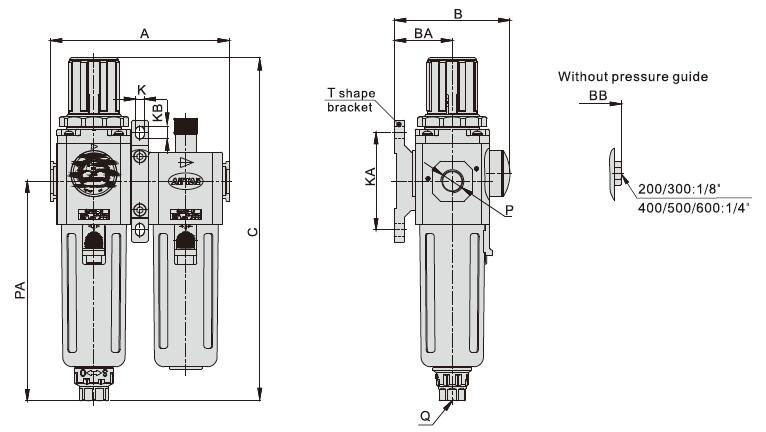

Dimensions (Unit: mm)

Dimensions of Stainless Steel Air Compressor Filter Regulator Lubricator

Model	A	B	BA	BB	C	K	KA	KB	P	PA	Q
CCHN-GAFC600-25	206	128	70	117	336.5	11	100	16	1"	205	G1/4

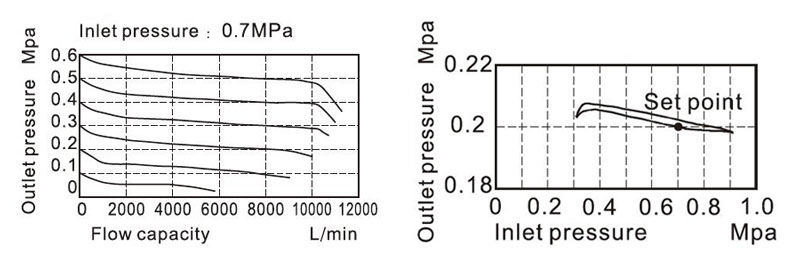

Pressure and Flow Diagram

Pressure and Flow Diagram of 1 inch Air Compressor Filter Regulator Lubricator

Tips for installing FRL unit - filter regulator lubricator

Please pay attention to cleaning the connecting pipes and joints during installation to prevent dirt from being brought into the air circuit.
Please pay attention to whether the gas flow direction is consistent with the direction indicated by the arrow on the body, and pay attention to whether the connection and joint teeth are correct.
Fix the filter and the regulator valve to the oil feeder, match the convex groove of the fixed bracket with the concave groove on the body, and then use the fixing piece and screw to lock it.
Fix when using regulator and filter alone, rotate the fixing ring to lock the attached special fixing piece.
