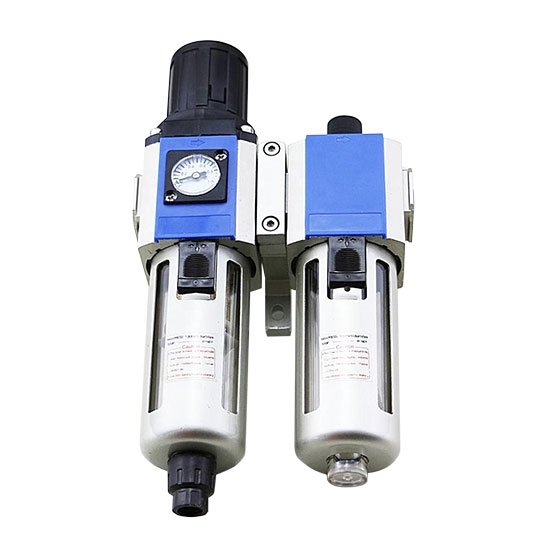

3/4" FRL Filter Regulator Lubricator

FRL unit is filter regulator lubricator combo with 3/4 inch port size, PT, G, NPT thread type available, filtering grade 40μm or 5μm, bowl material of PC, metal and nylon, used in pneumatic system to separate water and oil in compressed air.

SKU: CCHN-ACWS-34

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Air FRL unit is a combination of filter, regulator and lubricator used for air compressor. It can filter the water, oil and other impurities in the compressed air, and keep the air source in a constant state to reduce the damage to valves or actuators of the device.

Features

Quick and reliable mounting clamps makes it convenient to install and use.
The performance of pressure adjustment is reliable with high precision.
The efficiency of eliminating moisture and solid grain is high.

Specification

Model	CCHN-GAFC500-20
Fluid	Air
Pressure Type (Optional)	Standard (0.9 MPa), Lower Pressure (0.4 MPa)
Drain Type (Optional)	Semi-auto Drain, Manual Drain, Automatic Drain
Port Size	3/4"
Thread Type (Optional)	PT Thread (Scale: MPa, PSI) G Thread (Scale: MPa, Bar) NPT Thread (Scale: PSI, Bar)
Filtering grade (Optional)	40μm or 5μm
Bowl Material (Optional)	PC, Metal, Nylon
Pressure range	0.15-0.9 MPa (20-130 PSI)
Max.pressure	1.0 MPa (145 PSI)
Proof pressure	1.5 MPa (215 PSI)
Temperature range	-5~70 ℃ (Unfreeze)
Capacity of drain bowl	108 CC
Capacity of oil bowl	225 CC
Recommended lubricant	ISO VG 32 or equivalent
Weight	1.8 kg

Details

Details of 3/4 inch FRL Filter Regulator Lubricator

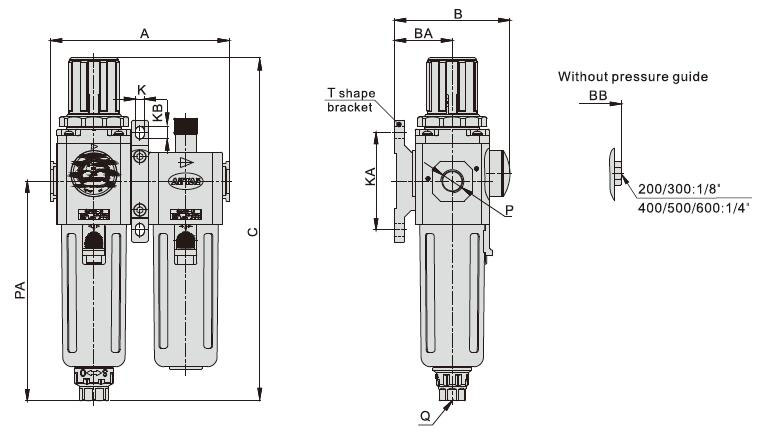

Dimensions (Unit: mm)

Dimensions of Stainless Steel Air Compressor Filter Regulator Lubricator

Model	A	B	BA	BB	C	K	KA	KB	P	PA	Q
CCHN-GAFC500-20	168	100	50	89	299.5	8.6	80	12	3/4"	191.5	G1/4

Pressure and Flow Diagram

Pressure and Flow Diagram of 3/4 inch FRL Unit Filter Regulator Lubricator

Tips: Advantages of filter regulator lubricator (FRL unit)

Equipped with a metal protective cover to ensure safety.
The lubricating oil can be supplied without stopping the gas to avoid the trouble of stopping the gas during work.
combination unit and single one can be used, easy to disassemble and assemble.
