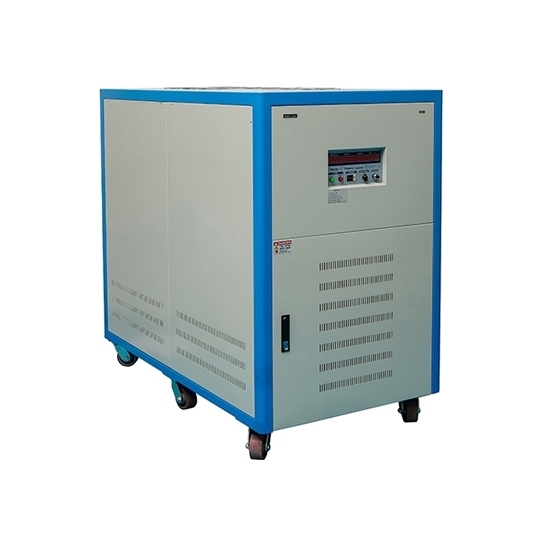

200kVA 3-Phase 380v 50Hz/460v 60Hz Frequency Converter

200kVA 3-Phase 380v 50Hz/460v 60Hz Frequency Converter

200 kVA three phase 480/460 volt to 380v/400v frequency converter, also can step-up 208v 220v to 400v 415v, output 50Hz/60Hz up to 400Hz adjustable, provide both voltage and frequency conversion for different power system.

SKU: HZ-50-33200

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

200 kVA three phase frequency converter, 220V/380V/400V/480V input and 0-520V output, easy converting 50Hz to 60Hz (vice versa), output pure sine wave for industrial appliance.

Specification:

Model	HZ-50-33200
Capacity	200 kVA
Dimension	15008601430 mm
Weight	850 kg

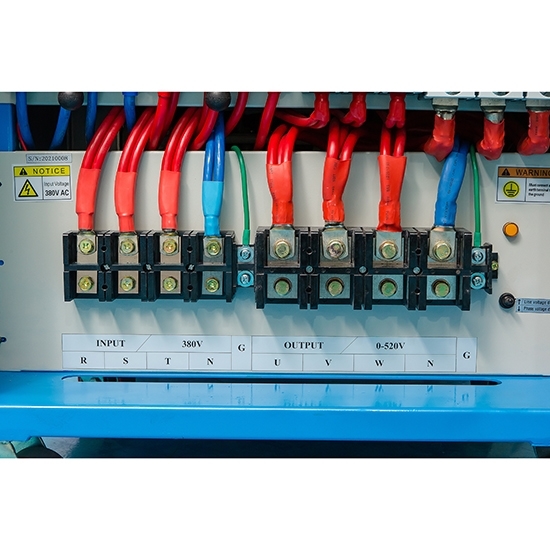

Input	Voltage	3 Phase 4 Wire: Wye Type 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V ±10% (option *)
		3 Phase 4 Wire: Wye Type 380/220, 400/230, 415/240, 440/254, 460/265, 480/277V ± 10% (option *)
		3 Phase 4 Wire: Della Type 220, 230, 240, 380, 400, 415, 440V ± 10% (option *)
	Frequency	50 Hz, 60 Hz

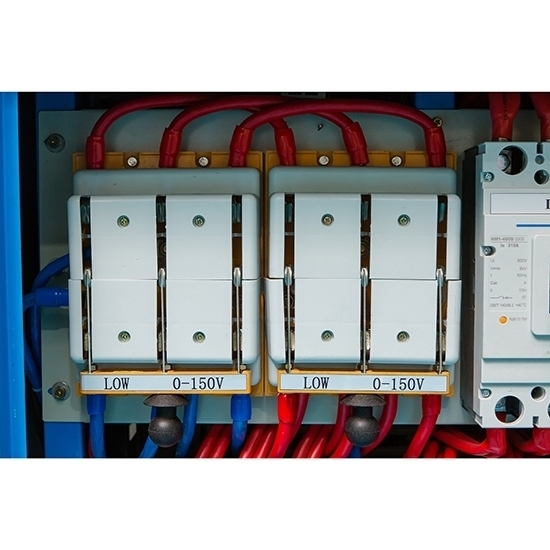

Output	Voltage, current	110V Setting (Low grade): 0-150V (phase voltage), 0-260V (line voltage) 554A
	Voltage, current	220V Setting (High grade): 0-300V (phase voltage), 0-520V (line voltage) 277A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%

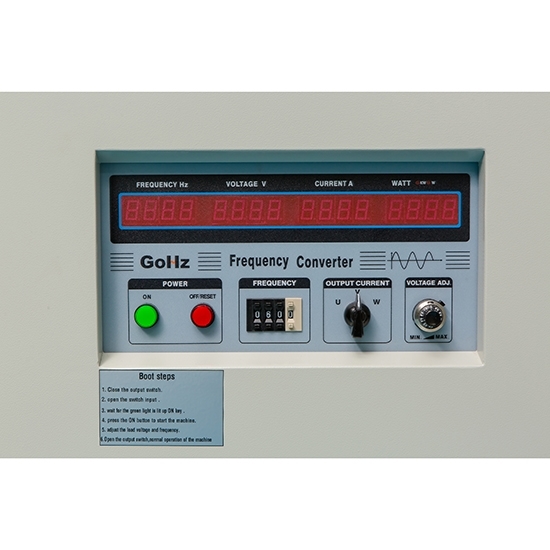

	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months
