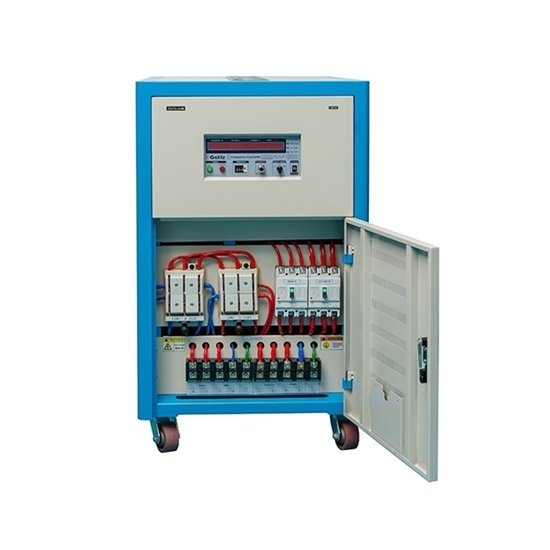

Reliable 100 kVA solid state (static) frequency converter, built-in step-up/step-down transformer, convert three phase 380V (e.g. Finland) to 460V (e.g. Brazil), change 50Hz to 60Hz, 400Hz and pure sine wave output for US and Europe appliances.

SKU: HZ-50-33100

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

100 kVA frequency converter for converting 50 Hz to 60 Hz, 400 Hz, 3 phase input, single phase or three phase output, compatible with 3 phase 208V, 220V, 380V, 415V, 480V power system.

Specification:

Model	HZ-50-33100
Capacity	100 kVA
Dimension	15008601430 mm
Weight	760 kg
Input	Voltage	3 Phase 4 Wire: Wye Type 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V ±10% (option *)
		3 Phase 4 Wire: Wye Type 380/220, 400/230, 415/240, 440/254, 460/265, 480/277V ± 10% (option *)
		3 Phase 4 Wire: Della Type 220, 230, 240, 380, 400, 415, 440V ± 10% (option *)
	Frequency	50 Hz, 60 Hz

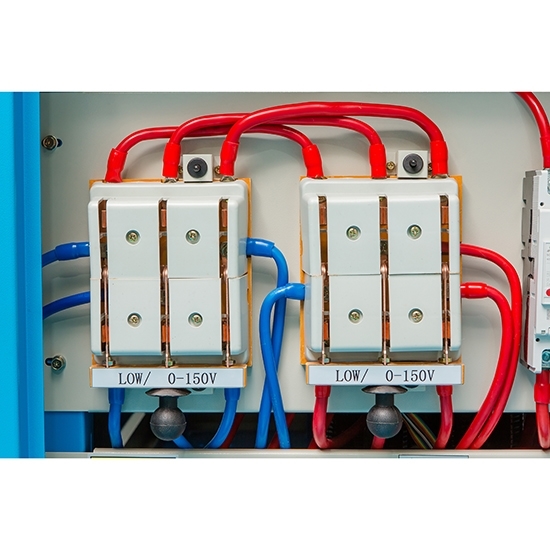

Output	Voltage, current	110V Setting (Low grade): 0-150V (phase voltage), 0-260V (line voltage) 277.6A
	Voltage, current	220V Setting (High grade): 0-300V (phase voltage), 0-520V (line voltage) 138.8A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%

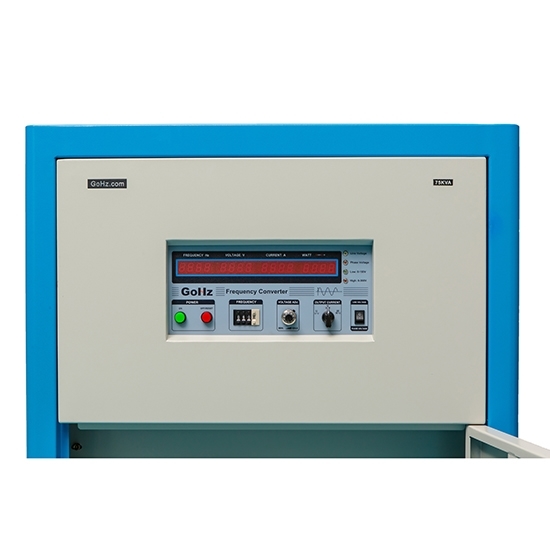

	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months
