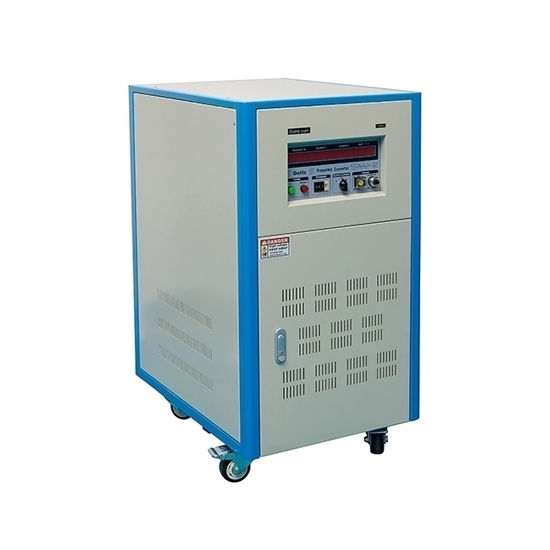

20kVA 3-Phase 380v 50Hz/220v 60Hz Frequency Converter

20kVA 3-Phase 380v 50Hz/220v 60Hz Frequency Converter

20 kVA pure sine wave frequency converter (AC power supply), three phase 220V/240V/400V/480V input and 0-520 Volt output, easy converting 50 Hz to 60 Hz and 3 phase to 1-phase/3-phase, make international 50/60Hz power system compatible easily.

SKU: HZ-50-3320

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

20 kVA three phase solid state frequency converter, 50/60 Hertz 208V, 220V, 380V, 400V, 420V, 460V, 480V input, adjustable voltage (0V-520V) and frequency (40Hz-400Hz) output.

Specification:

Model	HZ-50-3320
Capacity	20 kVA
Dimension	7705801140mm
Weight	220 kg

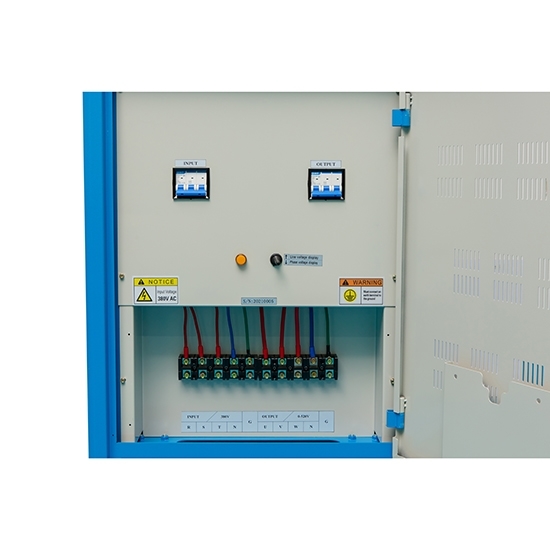

Input	Voltage	3 Phase 4 Wire: Wye Type 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V ±10% (option *)
		3 Phase 4 Wire: Wye Type 380/220, 400/230, 415/240, 440/254, 460/265, 480/277V ± 10% (option *)
		3 Phase 4 Wire: Della Type 220, 230, 240, 380, 400, 415, 440V ± 10% (option *)
	Frequency	50 Hz, 60 Hz
Output	Voltage, current	110V Setting (Low grade): 0-150V (phase voltage), 0-260V (line voltage) 55.6A
	Voltage, current	220V Setting (High grade): 0-300V (phase voltage), 0-520V (line voltage) 27.8A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%
	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months

Tips: Will 50Hz and 60Hz exchange affect transformer?

The influence of 50Hz/60Hz to the transformer and mutual inductor is similar to the contactor. The frequency change has no great influence to its performance. But it is mainly reflected in the loss and temperature rise. Therefore, it can be generally used in a certain design tolerance range. In addition, the transformer and mutual inductor of the same capacity designed by 50Hz is bigger than that of 60Hz in size, because satisfying the same voltage grade U≈E=4.44Fnbs, a lower frequency f will magnify the winding number N or increase the effective area S.
