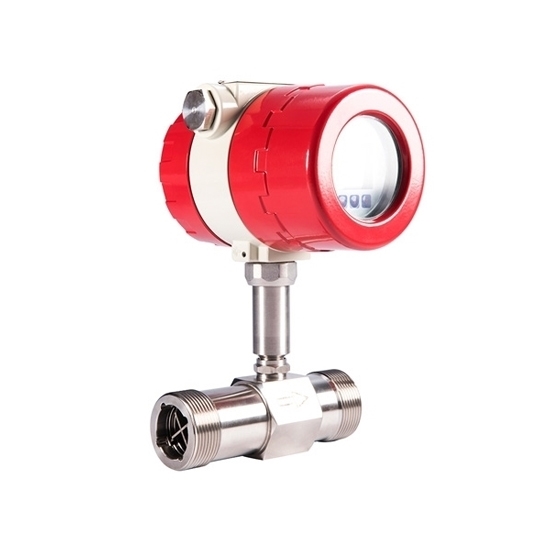

Liquid Turbine Flow Meter for Water/Oil, DN4-DN200

Liquid Turbine Flow Meter for Water/Oil, DN4-DN200

Low price turbine flow meter can be used for liquid flow measurement such as water and oil in the pipe size of DN4 ~ DN200 mm, 1.0%R measuring accuracy, 24V DC power supply, threaded or flange connection. Optional 4-20mA signal output and LCD display instantaneous flow / accumulative flow, RS485 also available. High accuracy, and good repeatability, best turbine flow meter for petroleum, chemical and other industries.

SKU: CCHN-FLOW-TUR

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

The liquid turbine flow meter is used to measure the flow rate of low viscosity liquid in closed pipe ranging from DN4 to DN200 mm. With the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance, the turbine flowmeter is widely applied in the petroleum, chemical, metallurgy, water supply, paper and other industries.

Specification

Model	CCHN-LWGY
Measuring Medium	liquid (water, liquefied petroleum gas, refined oil, light crude oil, organic liquid, inorganic liquid and other liquid without fiber, particulate impurities)
Medium Viscosity	< 5 × 10-6 m²/s (for the liquid with more than 5 × 10-6 m²/s, the flowmeter needs to be calibrated before using.)
Nominal Diameter *	DN4 ~ DN200 mm
Measurement Accuracy	1.0%R (For higher accuracy 0.5%R, please contact us.)
Pressure Range	6.3MPa, 2.5MPa, 1.6MPa
Medium Temperature	-20°C ~ +120°C (stainless steel measuring tube)
Environmental Conditions	Ambient temperature: -20°C ~ +60°C Relative humidity: 5% to 95% Atmospheric pressure: 86kPa ~ 106kPa
Power Supply	24V DC
Output Signal *	three-wire pulse output, or two-wire 4-20mA output (Optional)
Display *	LCD screen, can display instantaneous flow / accumulative flow (Optional)
Connection	Threaded connection (DN4~DN40) Flange connection (DN50 ~ DN200)
Communication *	RS485 (Optional)
Protection Class	IP65 (IP68 can be customized)

Flow Range

Size (mm)	Flow Range (m³/h)	Pressure Range	Connection
DN4	0.04 ~ 0.4	6.3MPa	Threaded
DN6	0.1 ~ 0.6	6.3MPa	Threaded
DN10	0.2 ~ 1.2	6.3MPa	Threaded
DN15	0.6 ~ 6	6.3MPa	Threaded
DN20	0.8 ~ 8	6.3MPa	Threaded
DN25	1 ~ 10	6.3MPa	Threaded
DN32	1.5 ~ 15	6.3MPa	Threaded
DN40	2 ~ 20	6.3MPa	Threaded
DN50	4 ~ 40	2.5MPa	Flange
DN65	7 ~ 70	1.6MPa	Flange
DN80	10 ~ 100	1.6MPa	Flange
DN100	20 ~ 200	1.6MPa	Flange
DN125	25 ~ 250	1.6MPa	Flange
DN150	30 ~ 300	1.6MPa	Flange
DN200	80 ~ 800	1.6MPa	Flange

Dimension

Turbine flow meter dimension

Size (mm)	L (mm)	G (inch)	K (mm)	d (mm)	n (number of holes)
DN4	225	G1/2"	—	—	—
DN6	225	G1/2"	—	—	—
DN10	345	G1/2"	—	—	—
DN15	75	G1"	Ф65	Ф14	4
DN20	80	G1"	Ф75	Ф14	4
DN25	100	G5/4"	Ф85	Ф14	4
DN32	140	G2"	Ф100	Ф14	4
DN40	140	G2"	Ф110	Ф18	4
DN50	150	G5/2"	Ф125	Ф18	4
DN65	170	—	Ф145	Ф18	4
DN80	200	—	Ф160	Ф18	8
DN100	220	—	Ф180	Ф18	8
DN125	250	—	Ф210	Ф18	8
DN150	300	—	Ф240	Ф22	8
DN200	360	—	Ф295	Ф22	12

Feature

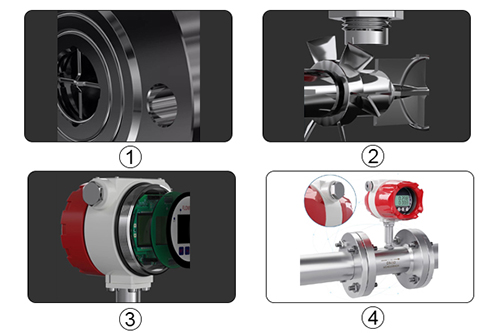

Turbine flow meter feature

Selected 304 stainless steel material, is non-conductive stainless steel body, can isolate the external magnetic field.
Precision milled impeller molded in one piece, CNC precision machining, more accurate data.
Blocked circuit board upgraded with intelligent algorithm, effectively filtering stray waves.
Metal electrical interface effectively isolates water and dust, no fear of wind and rain.

Application

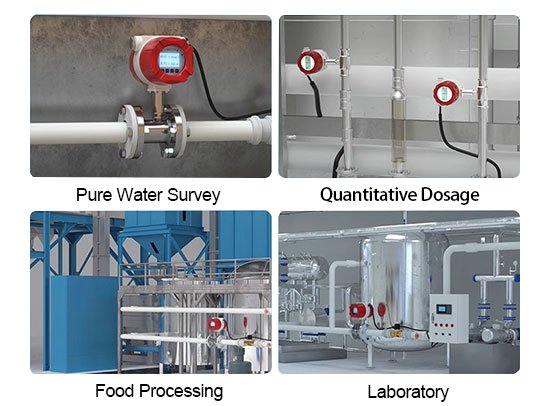

Turbine flow meter application

Tips: Turbine Flow Meter Working Principle

When the fluid passes through the sensor of the turbine flow meter through the pipe, the impeller in the sensor rotates under the impulse of the fluid. The impeller changes the magneto-resistance in the magneto-electric induction system periodically, so that the magnetic flux through the coil changes periodically and produces the electric pulse signal. After the circuit amplification processing, the output has a certain amplitude of the continuous rectangular pulse, the field can directly display the measured flow, or the signal can be transmitted to the display instrument or communication output.

Precautions for turbine flowmeter installation and use

The turbine flow meter should be away from external electric and magnetic fields.
The upstream end of the flowmeter is recommended to keep at least 10D straight pipe segment (D is the nominal diameter of the pipeline), and the downstream end is not less than 5D straight pipe segment.
When there are impurities in the fluid, filter should be added.
At the beginning of the use of the turbine flowmeter, the flow sensor should be slowly filled with liquid, and then the outlet valve should be opened. It is strictly prohibited for the sensor to be impacted by high-speed fluid when it is in the state of no liquid.
