Wireless Water Flow Meter, Electromagnetic, DN15-DN250

Wireless Water Flow Meter, Electromagnetic, DN15-DN250

High precision wireless electromagnetic flow meter for sale, available for wastewater/slurry/industrial wastewater and other liquid flow measurement, optional DN15 to DN250 diameter, accuracy of up to 0.5%, with 4G wireless communication, real-time monitoring of flow rate changes.

SKU: CCHN-FLOW-FMC

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Low cost purchase wireless flow meter consists of electromagnetic flow meter and 4G wireless remote transmission module, support RS485 and MODBUS-RTU protocol, suitable for wastewater flow monitoring from DN15 to DN250. Built-in 3.6V lithium battery, support 4G wireless communication, convenient remote operation, suitable for industrial automation control.

Specification

Model	CCHN-SUP-FMC800
Nominal Diameter	DN15~DN250
Typical Flow Rate Range	0.5m/s~5m/s (Flow rate range see table below)
Range Ratio	1:10
Pulse Output	Pulse width (ms)	Maximum output pulse per second (p/s)
	0.05	10000
	1	500
	10	50
	12.5	40
Communication Output	RS485 interface
	MODBUS-RTU communication protocol
Wireless Communication	4G
Power Supply	Built-in 3.6V lithium battery
Electrical Interface	M20*1.5 thread
Accuracy	0.5% of the total number of threads
Repeatability	0.16%
Medium Temperature	Pneumatic butadiene rubber material: -10°C～70°C
	Polyurethane rubber material: -10°C~60°C
	PTFE/FEP lining: -10°C~120°C
	PFA lining: -10°C~120°C
Process Pressure	DN15~DN250: PN≤1.6MPa
Conductivity	Clean water 20µS/cm
Converter Case	Stainless steel
Sensor Case	Carbon steel
Flange	Standard carbon steel (Carbon steel material can be optional stainless steel material, if necessary, please contact us)
Ambient Temperature	-20°C~50°C
Storage Temperature	0°C~40°C
Protection Class	IP68

Wireless Electromagnetic Flow Meter Flow Range

Diameter	Minimum Flow Point (m³/h)	Maximum Flow Point (m³/h)
DN15	0.32	3.2
DN20	0.56	5.6
DN25	0.88	8.8
DN32	1.4	14
DN40	2.3	23
DN50	3.5	35
DN65	6	60
DN80	9	90
DN100	14	140
DN125	22	220
DN150	32	320
DN200	56	560
DN250	88	880

Feature

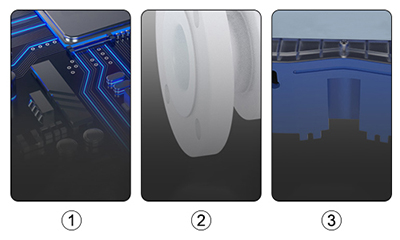

Wireless electromagnetic flow meter features

High-precision components to ensure accurate and stable flow measurement.
Thickened seismic flange design, greatly improving the seismic resistance and equipment stability.
Electromagnetic flow meter built-in wireless transmission terminal, support for remote real-time monitoring and parameter adjustment.

Dimension (unit: mm)

Wireless electromagnetic flow meter dimension

Diameter	H (mm)	L (mm)	ΦA (mm)	ΦB (mm)	Φh (mm)	N	Rated Pressure
DN15	315	200	95	65	14	4	PN16
DN20	320	200	105	75	14	4	PN16
DN25	325	200	115	85	14	4	PN16
DN32	335	200	135	100	18	4	PN16
DN40	345	200	145	110	18	4	PN16
DN50	360	200	160	125	18	4	PN16
DN65	378	200	180	145	18	4	PN16
DN80	394	200	195	160	18	8	PN16
DN100	413	250	215	180	18	8	PN16
DN125	438	250	245	210	18	8	PN16
DN150	470	300	280	240	23	8	PN16
DN200	528	350	335	295	23	12	PN16
DN250	606	450	405	355	25	12	PN16

Structure

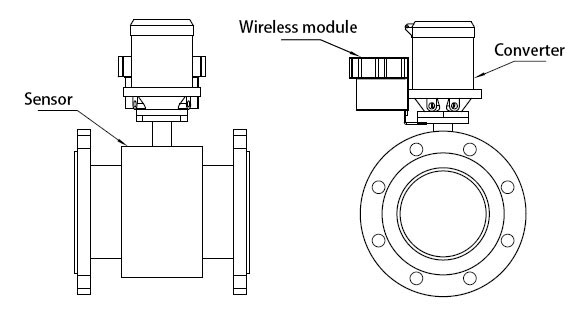

Wireless electromagnetic flow meter structure

Application

Wireless electromagnetic flow meter application

Tips: What are the advantages of wireless electromagnetic flow meters?

Wireless magnetic flow meters utilize the principle of electromagnetic induction and require no mechanical parts, resulting in extreme durability and stability.

Advantages include: Unaffected by changes in fluid temperature and pressure, high measurement accuracy, and no additional fluid-contacting parts, which reduces maintenance costs. In addition, wireless magnetic flow meters enable non-destructive flow measurement, avoiding the wear and contamination problems associated with traditional mechanical flow meters.
