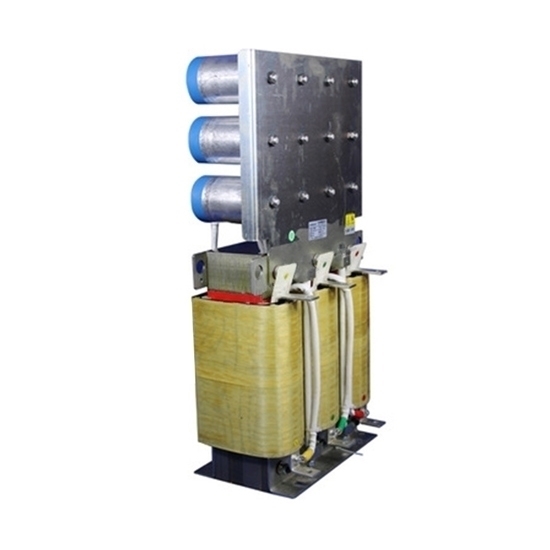

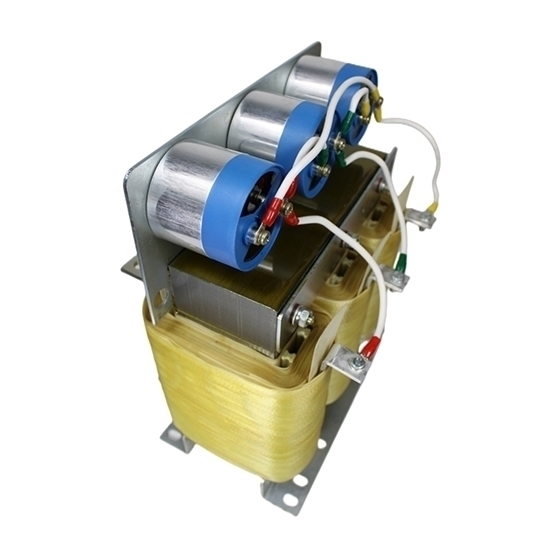

40A Sine Wave Filter, 3 Phase

Sine wave output filter for high-speed motor drives. The sine wave filter with rated current of 40A, an adapted power of 18.5kW, and a fundamental frequency of 50Hz. The sinusoidal filter IP 20 protection, touch-safe terminals and temperature monitoring function to increase overall equipment safety

SKU: CCHN-SWF-40

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

CCHN 40A sine wave filter with the power of 18.5kW at a low price for sale. High-efficiency sine filter can eliminate the premature motor damage caused by high dv/dt, overvoltages, motor overheating and eddy current losses.

Specification

Model	CCHN-SCAR-0040
Rated current	40A
Adapted power	18.5kW
Withstand voltage	3000 VAC 60/s
Fundamental frequency	50Hz
Carrier frequency	4kHz
Insulation class	F
Altitude	＜2000m
Working temperature	-40-85℃
Voltage drop	8%-12%
Weight	26kg

Dimension

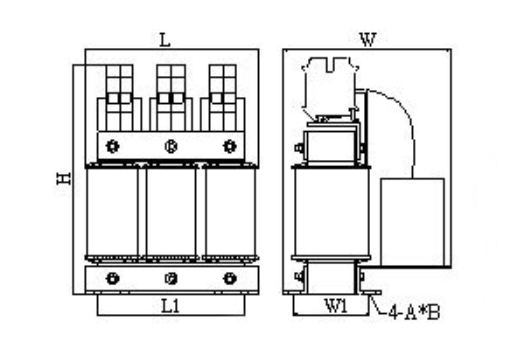

Dimension of sine wave filter

Model	L	W	H	L1	W1	A	B
CCHN-SCAR-0040	270mm	240mm	300mm	245mm	99mm	11.5mm	18mm

Application

Sine wave filter application

Tips: Precautions for Using Sine Wave Filter

After using the sine wave filter, the load capacity of the inverter will be lower than the system rated value.
The sine wave filter will cause a certain proportion of voltage drop in the filtered voltage. At a fundamental frequency of 50Hz, the voltage drop is about 10%. Its ratio is proportional to the change of the fundamental frequency.
