5A Sine Wave Filter, 3 Phase

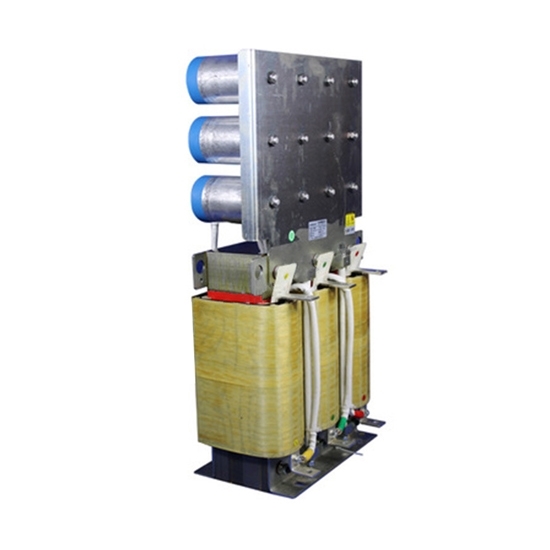

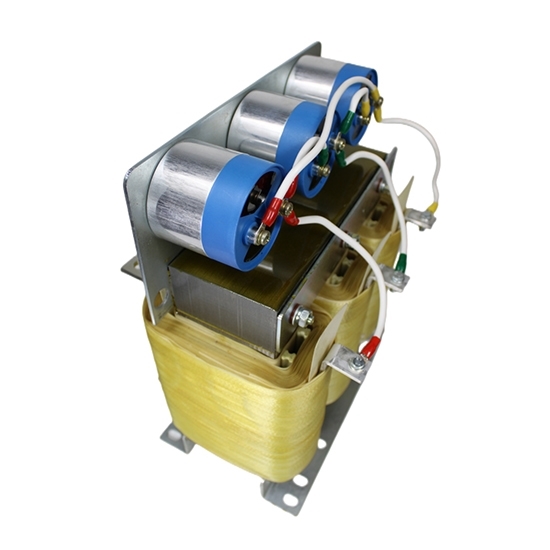

Good price sine wave filter for sale online. The 3-phase sine filter with rated current 5A, adapted power of 2.2kW, and carrier frequency 4kHz. The sinusoidal filter is widely used in metallurgy, coal, petrochemical, and new energy.

SKU: CCHN-SWF-5

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Lower cost sine wave filter with 5A rated current and withstand voltage 3000VAC 60/s. The sine filter can filters the SPWM modulation wave into an approximately sinusoidal voltage waveform.

Specification

Model	CCHN-SCAR-005
Rated current	5A
Adapted power	2.2kW
Withstand voltage	3000 VAC 60/s
Fundamental frequency	50Hz
Carrier frequency	4kHz
Insulation class	F
Altitude	＜2000m
Working temperature	-40-85℃
Voltage drop	8%-12%
Weight	7kg

Dimension

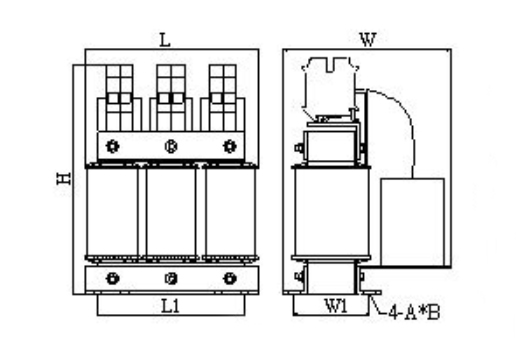

Dimension of sine wave filter

Model	L	W	H	L1	W1	A	B
CCHN-SCAR-005	180mm	170mm	220mm	165mm	67mm	8mm	14mm

Application

Sine wave filter application

Tips: What is a sine-wave filter?

Sinus filters, as the name suggests, are used to convert the output voltage of the frequency converter into a sinusoidal voltage. Frequency converters generate high electrical interference signals on the motor cable, which not only disturb the load, but also increase the insulation load on the motor.
