Cable Drag Chain, 18 x 50mm

Cable drag chains are available for sale with inner diameters of 18 x 18mm, 18 x 25mm, 18 x 37mm and 18 x 50mm. Cable carrier lengths are available from 1 meter to 10 meters, semi-enclosed inner opening type.

SKU: CCHN-CDC-T18

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Cable drag chain for sale, inner height 18mm, inner width 18mm, 25mm, 37mm and 50mm, cable carrier length can choose 1 meter to 10 meters, other lengths can be customized.

Note: cable drag chain length can be customized, please contact us.

Specification

Model	CCHN-CDC-T1818	CCHN-CDC-T1825	CCHN-CDC-T1837	CCHN-CDC-T1850
Inner Height	18mm	18mm	18mm	18mm
Inner Width	18mm	25m	37mm	50mm
Outer Height	23mm	37mm	23mm	23mm
Outer Width	29mm	50mm	47mm	60mm
Bending Radius ®	28mm, 38mm, 48mm, 55mm, 60mm, 75mm, 100mm
Open Mode	Semi closed inner opening
Aperture (φ)	5 x 7L	5 x 8.5L	5 x 9L	5 x 9L
Connector Hole Distance	A=8mm, B=11.5mm, C=9mm	A=12, B=7.5mm, C=11mm	A=24.5mm, B=7.5mm, C=7.5mm	A=37.5mm, B=8mm, C=7.5mm
Connector Ordering Model	18.18.BF.12PZ.(figure1)	18.25.BF.12PZ.(figure2)	18.37.BF.12PZ.(figure2)	18.50.BF.12PZ.(figure3)
Weight	0.33kg	0.35kg	0.39kg	0.44kg

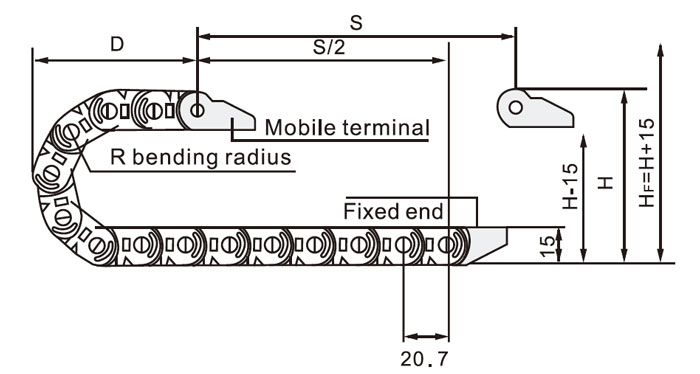

Cable Drag Chain Installation Dimension (unit: mm)

Pitch= 20.7mm, excluding the number of joints per meter= 49, chain length= S/2 + K, S= stroke distance, K= π x R + safety amount.

R	18	28	38
H	51	71	91
D	47	57	67
K	101	131	164

Drag chain 10 x 20 mm dimension

Tips: What is cable drag chain?

The cable drag chain is a special special cable with abrasion resistance, oil resistance and strong flexibility. It is suitable for occasions where the equipment unit needs to move back and forth. Put the cable in the cable drag chain to protect the cable from damage when it moves back with the drag chain. .

Drag chain cables are suitable for equipment connection lines and drag chain occasions where equipment is frequently moved repeatedly. It can effectively prevent cables from entanglement, abrasion, pull-off and disorganization. They are mainly used in industrial electronic systems, automatic generation lines, storage equipment, robots, fire protection systems, Cranes, CNC machine tools and metallurgical industries, etc.
