Chemical Diaphragm Dosing Pump, 320 L/h Flow

ATO diaphragm dosing pump with 320L/h flow for sale at factory price. It is a type of positive displacement pump used for the precise and accurate injection of a wide range of fluids and chemicals. This metering pump is widely used in water treatment and chemical processing for delivering a consistent flow of liquids. Available in 380V voltage, PVC pump head, 550W motor power.

SKU: CCHN-DDP-320F

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Specification

Model: CCHN-DJ-Z320/0.5
Flow: 320L/h
Pressure: 0.5MPa
Pump Stroke: 144 min^-1
Pump Head Material: PVC
Motor Power: 550W
Motor Voltage: 380V 50Hz
Inlet & Outlet Diameter: DN25
Weight: 28kg

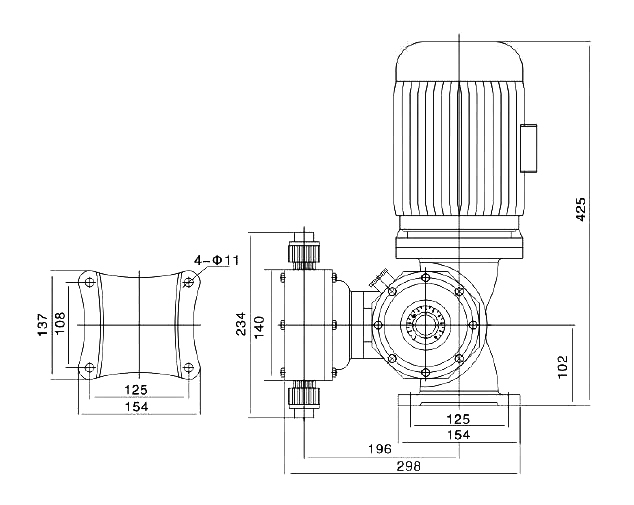

Dimension (Unit: mm)

Diaphragm dosing pump dimension

Details

Tips: Can diaphragm dosing pumps run continuously?

Diaphragm dosing pumps are designed to operate continuously, making them suitable for a wide range of applications that require a consistent and precise flow of fluids. These pumps utilize a diaphragm to displace the liquid, ensuring accurate and controlled dosing. Their ability to run continuously depends on their design and the specific requirements of the application.

Chemical diaphragm metering pumps are known for their reliability, durability, and minimal maintenance needs. They can run for extended periods without overheating or experiencing significant wear and tear. However, it's essential to select the right diaphragm material and pump construction to withstand the chemical and mechanical stresses of the intended task. Routine maintenance and occasional inspections are advisable to ensure optimal performance and longevity. In summary, diaphragm metering pumps can indeed run continuously, but proper selection and maintenance are crucial to their reliable, long-term operation.
