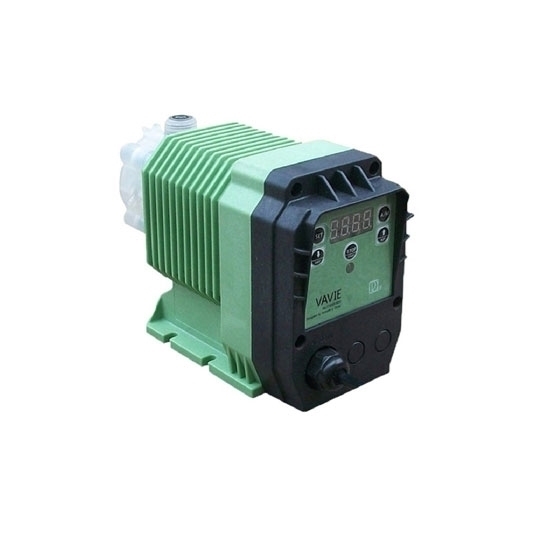

Diaphragm Dosing Pump, 9 L/h Flow

Sell diaphragm dosing pump at the best price, 9 L/h flow, 3.5 bar pressure, digital display metering pump, used in paper industry, industrial wastewater treatment and water treatment plant.

SKU: CCHN-DP-V09003

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Diaphragm solenoid metering pump for sale, flow 9 L/h, 24 watt, resistant to weak acid and alkali, low price, button adjustment to control the flow rate, easy to use.

9 L/h Diaphragm Metering Pump Features

Green screen digital display, brand new circuit design, more stable operation
Stroke frequency button adjustment
New type of one-way valve assembly, PTFE valve seat, acid and alkali resistance, more reasonable structure, stronger sealing
ACEH/PC shell, strong and durable structure, weather resistance is far better than ABS material
A variety of pump heads and sealing materials are available, suitable for a wider range of media delivery
Optional low liquid level stop pump and alarm function
Added diaphragm damage protection and alarm function
Optional external pulse signal or 4-20mA analog signal.

Diaphragm Dosing Pump Specification:

Model	CCHN-DP-V09003
Power	24W
Flow	9 L/h
Pressure	3.5 Bar
Stroke	120 N/m
Wet Suction Range	1.5m
Dosing Pump Tubing	4 x 6mm
Interface	DN 15mm
Power Supply	220V
Repeated Measurement Accuracy	-5%~5%
Allowable Ambient Temperature	5℃~180℃ (PTFE pump head ),
Allowable Medium Viscosity	High viscosity pump head ≤ 1000 mPA.s
Particle Diameter	≤0.15mm
Protection Class	IP55
Insulation Class	F
Weight	2.9 kg
Warranty Period	12 Months

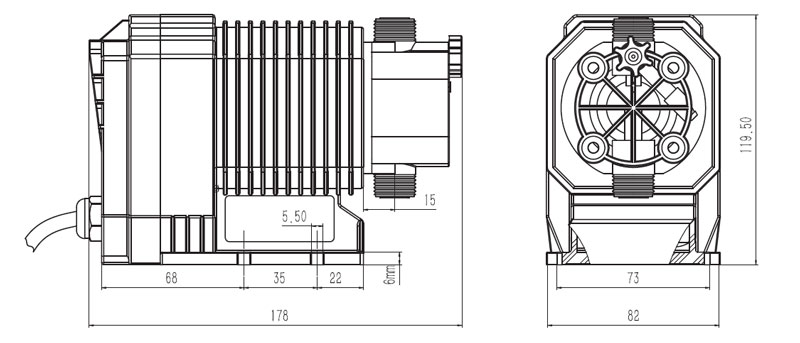

Digital Dosing Pump Dimension (unit: mm)
