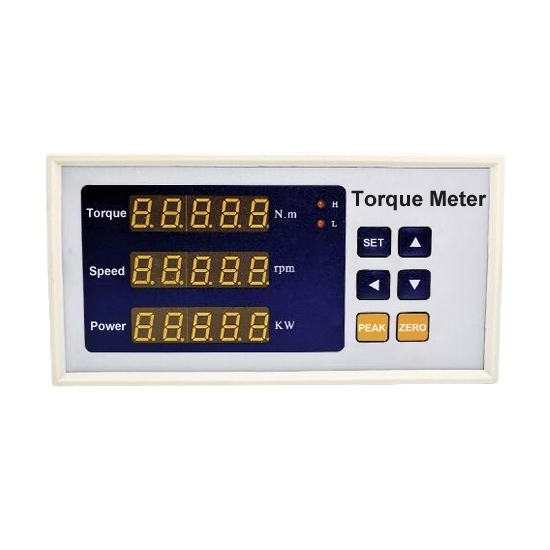

Digital torque meter with 3-channel 5 digit LED can real-time display dynamic torque, speed and power value. The measuring range of torque can be -99999~99999 Nm (display value is 0~99999 Nm). Digital panel meter for rotary torque sensor has power supply AC 220V, measuring speed 25 times/s, output analog signal 4-20mA, optional communication output RS485/RS232, optional external power supply DC 15V/24V.

SKU: CCHN-DPM-RTS5D

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Digital torque meter can be used for measuring dynamic torque, speed and power at the same time, has functions such as zero tracking, low/high alarm and peak value display.

Specification:

Basics	Model	CCHN-DYN-302
	Dimension	16080170mm horizontal, hole size 152*76mm
	Shipping weight	2 kg
Technical parameters	Display	Measuring range of torque: -99999~99999 Nm Display value of torque: 0~99999 Nm Display value of speed: 0~99999 rpm Display value of power: 0~99999 kW
	Measuring resolution	Meter resolution: 1/1000000, display resolution: 1/120000
	Measuring speed	25 times/second
	Display method	3-channel 5 digit LED display
	Meter power supply	220VAC, 50/60Hz
	Input signal	Various pulse signal: NPN, PNP, OC gate output signal of sensors, proximity sensors, rotary encoders
	Measuring frequency	Input pulse of torque: 5kHz~15kHz Input pulse of speed: 0.3Hz~20kHz
	Alarm	Three alarm outputs for L/H alarm
	Analog signal output	2-channel DC 4-20mA output signals (resolution: 1/4000, error: ＜0.2%FS, load capacity: ≤600Ω, optical isolation)
	Communication output*	RS485 or RS232 (optical isolation)
	External power supply *	±15VDC or 24VDC (≥300mA, provide power supply for torque sensor)
	Working environment	Temperature: -10~+70℃ (14~158℉), humidity: 0~90%RH (no condensation)

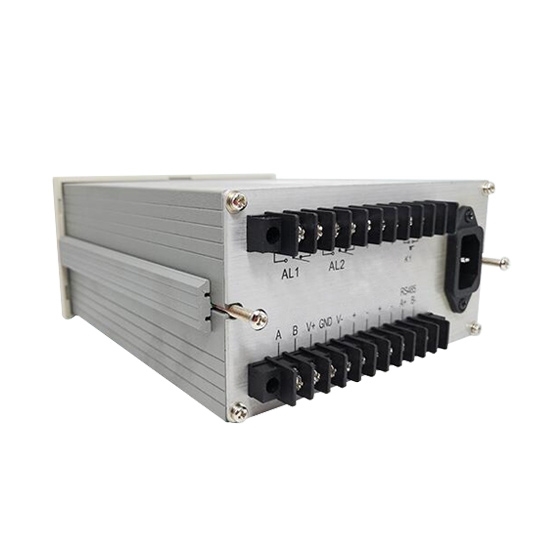

Wiring diagram:
