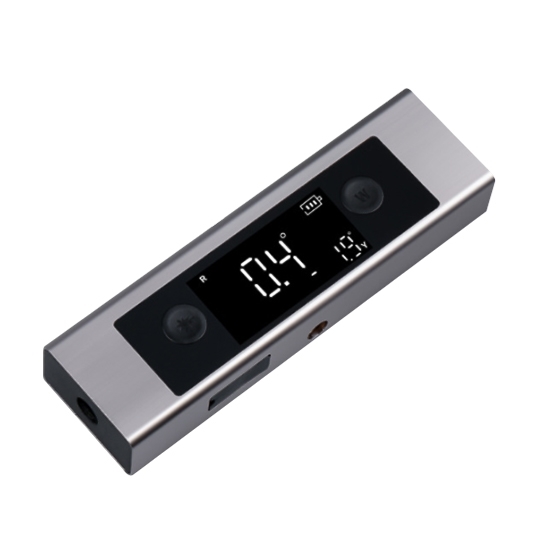

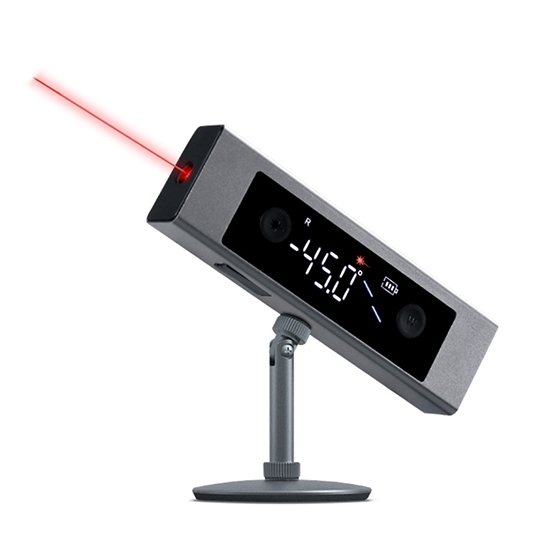

Mini Laser Digital Inclinometer With Stand

Mini Laser Digital Inclinometer With Stand

Mini laser digital inclinometer with stand includes cross and linear laser alignment, providing ±40° dual axis range, 4×90° single axis. Using magnetic adsorption on the workpiece, the electronic inclinometer features ±0.3° accuracy, 0.1° resolution, and 0.1° repeatability. ATO digital level inclinometer operates within 0-40°C environments while maintaining ±5mm error at 2m distance.

SKU: CCHN-DMI-119

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Measuring dual-axis cross and linear laser alignment, high accuracy miniature laser inclinometer ensures reliable angle reading. Digital display delivers clear, immediate results, and portable design supports various measurement scenarios.

Specification

Measurement Axis	Single Axis	Dual Axis
Measuring Range	4×90°	±40°
Resolution	0.1°	0.1°
Accuracy	±0.2°	±0.3°
Display	Digital
Laser Accuracy	Error of ±5mm at 2m distance
Repeatability	0.1°
Power Supply	Type-C Charging
Power Type	3.7V Lithium Battery
Operating Environment	0-40°C (Humidity ≤80%)
Magnet	The magnetic adsorption measurement surface can be adsorbed on the workpiece for measurement
Reference	Zero point measurement based on the horizontal plane
Size	119mm35mm20mm

Features

Dual-axis laser measurement: High precision digital inclinometer projects cross-line lasers simultaneously on both sides.
Dual-sided color displays: Bright high-definition screens on both surfaces ensure perfect readability from any viewing angle.
Compact portable design: Portable inclinometer features 119x35x20mm dimensions and lightweight 100g construction.
Magnetic adsorption capability: Built-in magnets provide secure attachment to various metal surfaces.
Automatic screen rotation: Dual-sided high definition color screens automatically flip orientation when inverted.
Type-C fast charging: High-capacity battery with modern Type-C charging interface.
Versatile stand compatibility: Digital level protractor inclinometer works with a universal stand for 360° projection.
Simplified button operation: Easy-to-use controls with intuitive interface design.
Multiple measurement modes: Switches freely between angle and slope measurement functions.
Precision laser projection: Lasers on both sides remain clearly visible even in bright working environments.

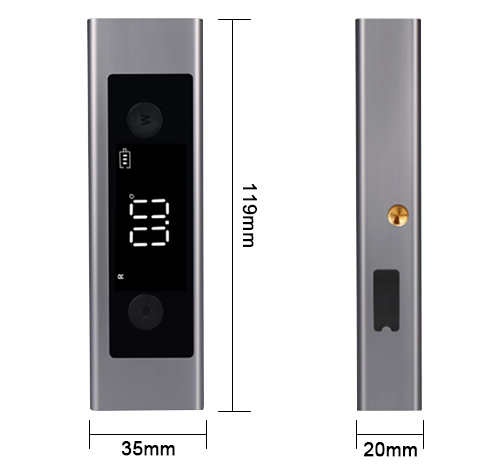

Dimension (Unit: mm)

Mini laser digital inclinometer dimension

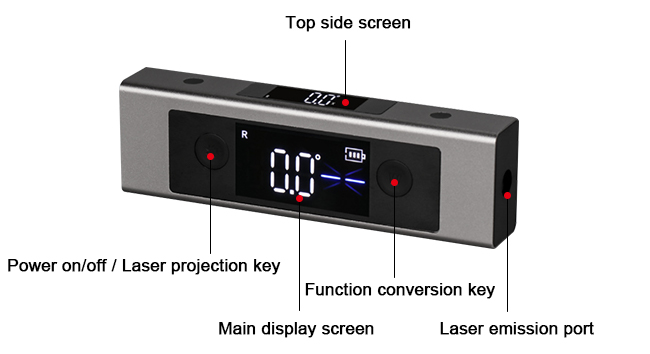

Details

Mini laser digital inclinometer details

Laser Type

Mini laser digital inclinometer laser type

Measuring Mode

Mini laser digital inclinometer measuring mode

Application

Mini laser digital inclinometer application

Tips: What are the ideal usage environments and key advantages of this mini laser digital inclinometer?

This digital level inclinometer is optimized for convenient indoor applications such as office setups, furniture assembly, and DIY projects, where its bright cross-line laser ensures clear alignment without complex automatic leveling. The compact design and magnetic base allow flexible use on various surfaces, providing reliable angle measurement and slope conversion for everyday tasks. While specifically engineered for optimal performance in indoor lighting, the tilt meter delivers precision and ease-of-use that streamlines workflows in home, workshop, or professional office scenarios.
