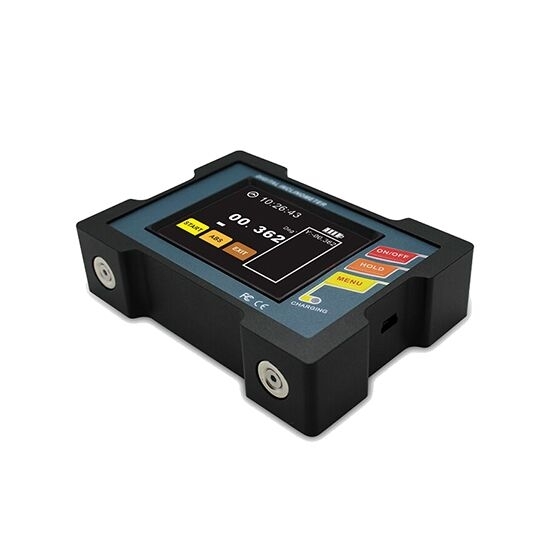

High Accuracy Digital Inclinometer, Single Axis, Output USB1.1

Single axis digital inclinometer is a high-precision measuring device designed for accurate single-dimensional angle detection. High accuracy inclinometer equipped with an LCD display with 0.02mm measurement accuracy. Three measurement modes are selectable: Radian, angle, and mm/meter. The measurement accuracy is 0.1mm (RMS) / 0.2mm (RMS).

Specification

Features

• Measurement Accuracy and Repeatability​: 1 axis inclinometer inclinometer offers high-precision measurement, with accuracy controlled within <0.003° and repeatability error of 0.003° (ensuring long-term data reliability). It uses a 0.001° fine angle division, suitable for high-resolution scenarios like precision machining inspection and laboratory calibration.​
• Measurement Range and Modes​: Digital inclinometer supports two switchable ranges: ±15°/±30°, adaptable to different measured objects. It also has absolute/relative measurement modes: absolute mode gets angle differences from the standard reference plane, while relative mode captures angle changes between positions, meeting diverse needs.​
• Installation and Compensation Performance​: It adopts a dual-benchmark strong magnetic mounting design—strong magnetism ensures stable fixation on metal surfaces, and dual benchmarks improve installation accuracy. Equipped with automatic angle interleaved compensation (corrects position deviation errors) and automatic temperature drift compensation (offsets ambient temperature impact), it maintains data stability.​
• Power Supply, Display and Additional Functions​: Industrial inclinometer powered by rechargeable industrial batteries (large capacity, high cycle life, temperature resistance) for long outdoor/on-site use. It has a night-vision four-color display (clear in low light, color-coded for mode/status). Additional functions: selectable filter frequency (reduces interference), adjustable alarm angle (presets thresholds), and zero-point self-calibration (simplifies calibration without external tools).

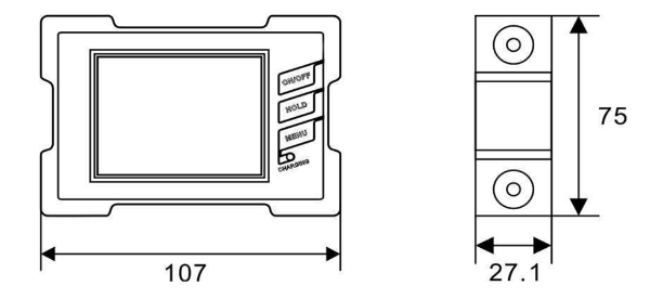

Dimension (unit=mm)

Measuring Direction

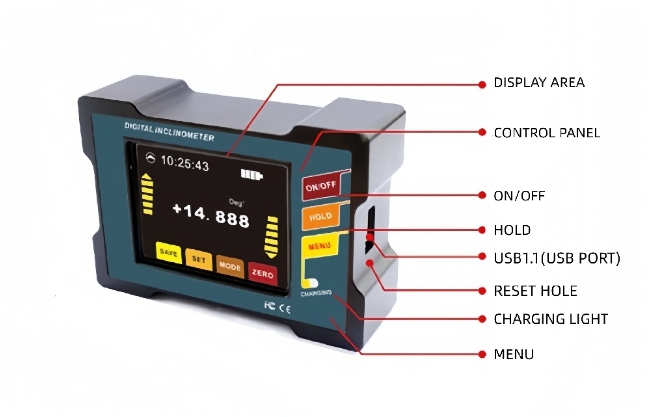

Details

• ON/OFF: Press and hold for 3 seconds to turn on or off.
• HOLD: This button can lock the current data for customers to record conveniently.
• MENU: Press the MENU key to make the menu disappear, and press it again to make it appear.
• RESET HOLE: If the inclinometer crashes during operation and the keys cannot be operated, a hard object like a needle tip can be inserted into the hole to touch the button.

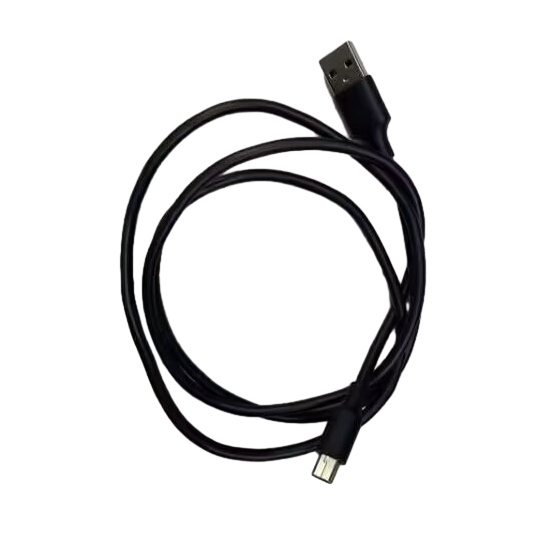

• USB PORT: Used for charging and USB 1.1 data output.
• CHARGING LIGHT: Charging indicator light. The light is on when charging, and off when fully charged.
  Note: To ensure the battery service life, please do not use the device while charging.

7 Reasons to Buy Digital Inclinometer

1. Supports full 360-degree measurement covering 4 distinct directions.
2. The angle readings displayed on the LCD will automatically adapt to the measurement direction for easy reading.
3. Precise stainless steel measuring structure.
4. It can be re-calibrated without any special tools and equipment.
5. A 3-volt battery lasts for 3000 hours.
6. Three measuring tool that combines three tools into a single unit—protractor, inclinometer, and spirit level.
7. Boasting a lightweight design for easy portability, it also features waterproof performance that expands its applicability to more use cases.
