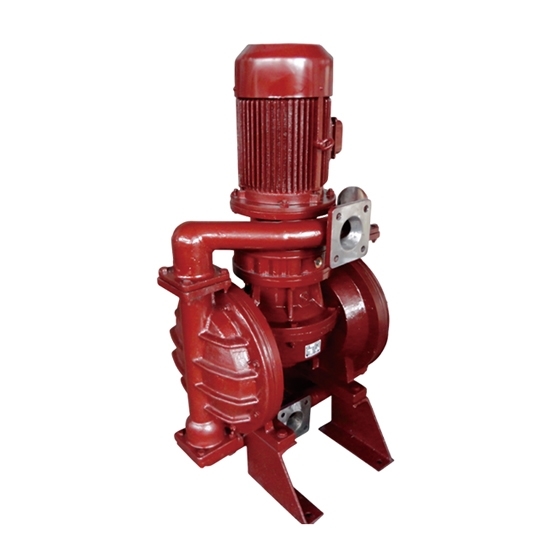

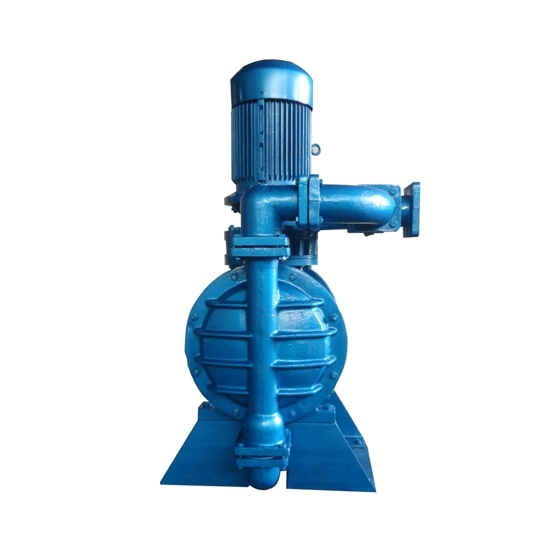

4" Electric Diaphragm pump, 61.5GPM, 3kW

Heavy duty 4 inch electric operated diaphragm pump at factory price, driven by 380V, 3kW motor for pumping high viscosity fluids and slurry, gear ratio 1:17, max. flow 61.5 GPM, selectable NPT and flanged connection type.

SKU: CCHN-EODD-100

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Industrial 4 inch EODD pump powered by an electric motor for delivering high viscosity fluids, slurry, Acid alkaline liquid, toxic liquid and so on, with max. flow 14 GPM, working temperature up to 100℃, high performance and high efficiency.

Specification

Model	CCHN-DBY3-100
Max. Flow	61.5 GPM (14 m³/h)
Fluid Inlet Size	4 inch (DN100)
Fluid Outlet Size	4 inch (DN100)
Connection Type (Optional)	ANSI Flanged, DIN Flanged
Suction Lift	15 ft. (4.5m)
Head	100 ft. (30m)
Outlet Pressure	3 kgf/cm²
Motor Speed	1450 rpm
Motor Voltage	3-Phase 380V
Motor Power	3kW
Reducer Speed Ratio	1:17
Working Temperature	Aluminum Aloy: 90℃ Stainless Steel: 100℃ Cast Iron: 90℃
Body Material (Optional)	PTFE, Aluminum Alloy, Stainless Steel, Cast Iron
Diaphragm Material	Butyronitrile (Default)/ Teflon (Customizable)
Weight	500kg

Dimensions (Unit: mm)

Dimensions of Electric Operated Double Diaphragm Pump with Motor

Model	A	B	φ	L	L1	L2	H	H1	H2	M	D	D1	D2	D3
DBY3-80	325	585	18	650	65	380	1280	120	710	750	210	170	4-φ18	18

Flow Diagram

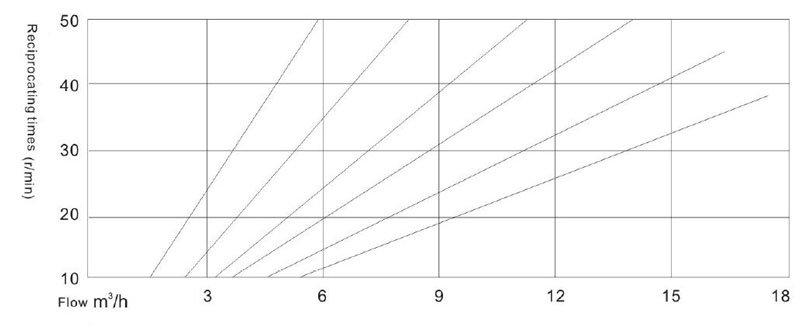

Flow Diagram of Electric Operated Double Diaphragm Pump with Motor

Details

Details of Electric Operated Double Diaphragm Pump with Motor

1	motor	8	Grease Nipple	14	Piston Shaft
2	Reducer	9	Footing	15	Inner Press Plate
3	Wobber	10	Pump Body	16	Diaphragm
4	Bearing	11	Sealing Ball	17	Outer Press Plate
5	Outlet Pipe	12	Sealing seat	18	Sealing Gasket
6	Iternediate	13	Inlet Pipe	19	Press Plate Screw
7	Cover Plate	13	Inlet Pipe	19	Press Plate Screw

Tips: The functions of electric diaphragm pump components

Air valve: The plastic or metal valve shell is fixed on the pump center body by four screws.
Piston: The aluminum cylinder is enclosed in an air valve to control the air flow.
Cavitation: Due to the reduced or lack of fluid supply at the pump inlet, the pump discharge is lower than the rated volume. In fact, the liquid chamber is not filled with fluid before discharge.
Static discharge head: the vertical distance (in meters) from the center line of the pump to the free delivery point.
Inlet pressure: The inlet is measured in Bar, including the specific gravity and flow rate of the fluid.
Specific gravity: the ratio of fluid weight to water weight at 4 degrees. The specific gravity of 4° water is 1:0, and the static suction lift is the vertical distance from the liquid level to the center line of the pump. The pump should be above the liquid level.
Vapor pressure: The pressure of vapor generated by all liquids on its free surface. In any pump operating system, the operating pressure cannot be lower than the vapor pressure, and the formed vapor will be partially or completely cut off into the pump fluid.
Viscosity: Due to the internal friction of the fluid, the nature of viscosity makes the fluid flow resistance.
Water hammer: The higher inlet forms a static pressure head which acts on the pump to generate internal pressure.
