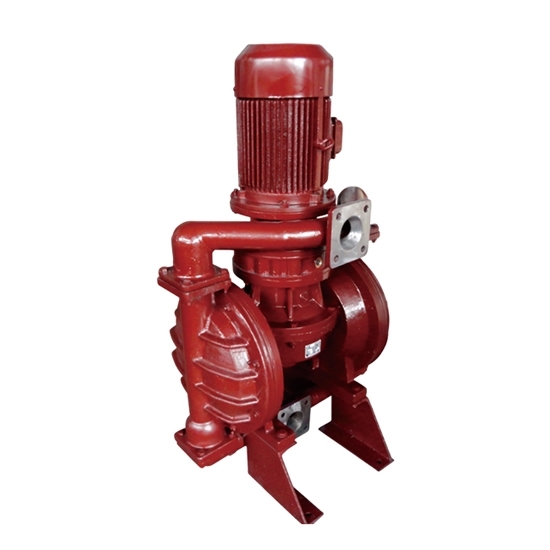

3" Electric Diaphragm pump, 61.5GPM, 3kW

Buy industrial 3 inch electric operated diaphragm pump at factory price, driven by 380V, 3kW motor for pumping high viscosity fluids and slurry, gear ratio 1:17, max. flow 61.5 GPM, selectable flanged connection type.

SKU: CCHN-EODD-80

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Heavy duty 3 inch EODD pump powered by an electric motor for delivering high viscosity fluids, slurry, Acid alkaline liquid, toxic liquid and so on, with max. flow 14 GPM, working temperature up to 100℃, high performance and high efficiency.

Specification

Model	CCHN-DBY3-80
Max. Flow	61.5 GPM (14 m³/h)
Fluid Inlet Size	3 inch (DN80)
Fluid Outlet Size	3 inch (DN80)
Connection Type (Optional)	ANSI Flanged, DIN Flanged
Suction Lift	15 ft. (4.5m)
Head	100 ft. (30m)
Outlet Pressure	3 kgf/cm²
Motor Speed	1450 rpm
Motor Voltage	3-Phase 380V
Motor Power	3kW
Reducer Speed Ratio	1:17
Working Temperature	Aluminum Aloy: 90℃ Stainless Steel: 100℃ Cast Iron: 90℃
Body Material (Optional)	PTFE, Aluminum Alloy, Stainless Steel, Cast Iron
Diaphragm Material	Butyronitrile (Default)/ Teflon (Customizable)
Weight	500kg

Dimensions (Unit: mm)

Dimensions of Electric Operated Double Diaphragm Pump with Motor

Model	A	B	φ	L	L1	L2	H	H1	H2	M	D	D1	D2	D3
DBY3-80	325	585	18	650	65	380	1280	120	710	750	190	150	4-φ18	18

Flow Diagram

Flow Diagram of Electric Operated Double Diaphragm Pump with Motor

Details

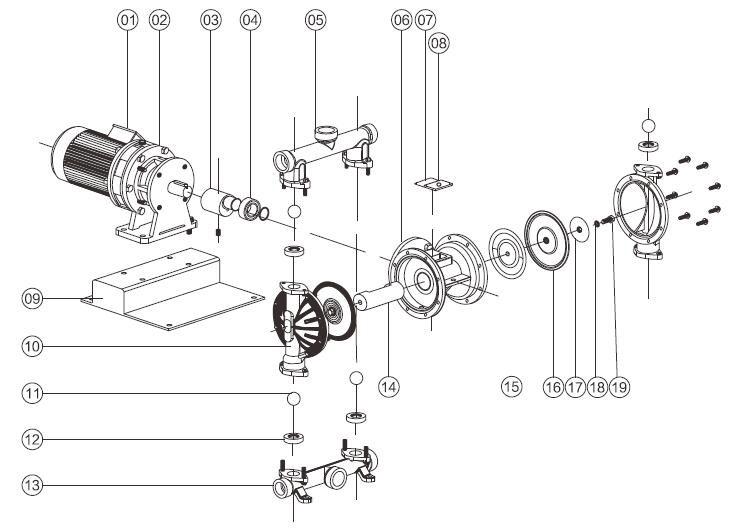

Details of Electric Operated Double Diaphragm Pump with Motor

1	motor	8	Grease Nipple	14	Piston Shaft
2	Reducer	9	Footing	15	Inner Press Plate
3	Wobber	10	Pump Body	16	Diaphragm
4	Bearing	11	Sealing Ball	17	Outer Press Plate
5	Outlet Pipe	12	Sealing seat	18	Sealing Gasket
6	Iternediate	13	Inlet Pipe	19	Press Plate Screw
7	Cover Plate	13	Inlet Pipe	19	Press Plate Screw

Tips: Difference between air diaphragm pump and electric diaphragm pump

The air diaphragm pump is driven by compressed air (2-8.4 kg air pressure), and the electric diaphragm pump is driven by an electric motor.
The maximum flow rate of the pneumatic diaphragm pump is 60m/h, and the flow rate of the electric diaphragm pump is only 28m/h.
The pneumatic diaphragm pump can adjust the flow rate by adjusting the pressure of the air source. The electric diaphragm pump cannot adjust the flow rate. The adjustment can only be achieved with a frequency converter.
The air diaphragm pump is structurally explosion-proof and is suitable for all kinds of flammable and explosive places, while the electric diaphragm pump must use an explosion-proof motor to meet the explosion-proof requirements.
The pneumatic diaphragm pump is cheaper and lighter.
