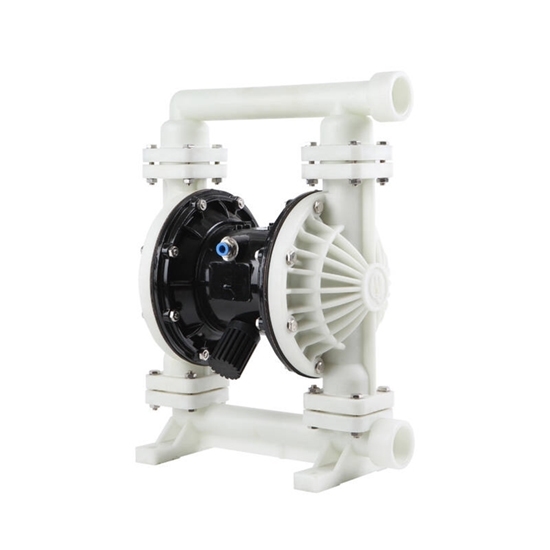

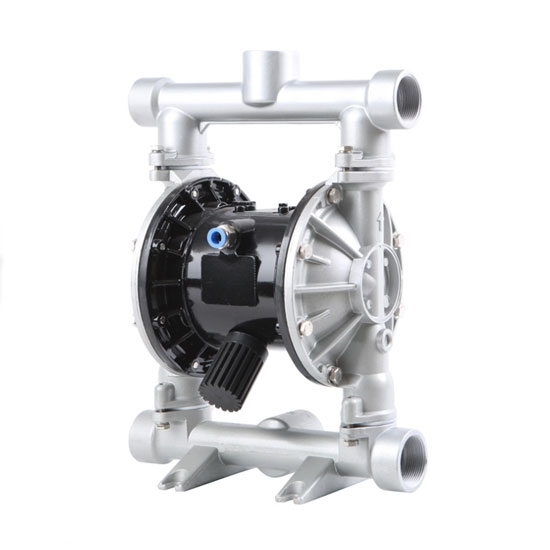

1-1/2" Air Operated Double Diaphragm Pump, 40GPM

Buy industrial air operated double diaphragm pump with 1-1/2 inch fluid inlet and outlet, 1/2 inch air inlet, air driven, selectable cast steel, aluminum alloy, stainless steel and non-metallic body material. This AODD pump at low price used for pumping slurry, high viscosity fluids, corrosive liquids and paint, manufacturer direct sale.

SKU: CCHN-AODD-40

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Air driven dual diaphragm pump with high efficiency and high pressure, is powered by compressed air to pump a variety of toxic, flammable, volatile liquid, high viscosity fluids, acids, alkalis, corrosive liquids and paint.

Features

Pneumatic dual diaphragm pump can transport high temperature media up to 130 ℃.
Adopt pilot operated type air valve to eliminate the AODD pump downtime and extend its life span.
It is designed with multiport to help you install it easily.
Air powered diaphragm pump can be used as a movable-type material transfer pump because it has such advantages as small in size, easy moving, no need base, small occupied area and easy installation.
It can be externally connected to an electromagnetic valve for remote control. And the reversing valve requires no lubrication.

Specification

Model	CCHN-QBYK3-40	CCHN-QBY-G40
Max. Flow	40 GPM (151 LPM)
Max. Working Pressure	120 PSI (0.84 Mpa)
Fluid Inlet Size	1-1/2 inch (DN40) NPT
Fluid Outlet Size	1-1/2 inch (DN40) NPT
Air Inlet Size	1/2 inch NPT
Max. Suction Height （Dry Suction）	18 ft. (4.5m)
Max. Permitted Grain	1/8 in. (3.2mm)
Max. Air Consumption	23.66 SCFM
Every Stroke Flow	0.15 gal. (0.15L)
Max. Reciprocating Speed	276 cpm
Body Structure Material Option	Cast Iron/Aluminum Alloy/Stainless Steel	Non-Metallic (Plastic)
Diaphragm Material	Butyronitrile (Default)/ Teflon (Customizable)
Weight	15.5kg/ 9kg/ 15.5kg	8kg

Dimensions (Unit: mm)

Air Consumption Diagram

Air Consumption Diagram of 1-1/2 inch Air Operated Double Diaphragm Pump

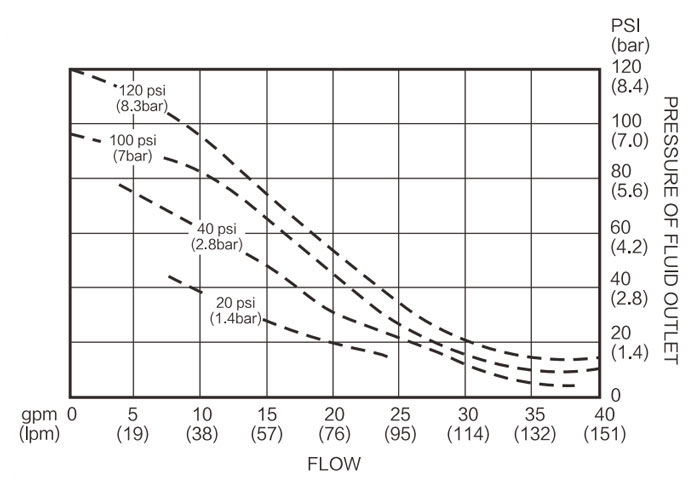

Fluid Flow Diagram

Fluid Flow Diagram of 1-1/2 inch Air Operated Double Diaphragm Pump

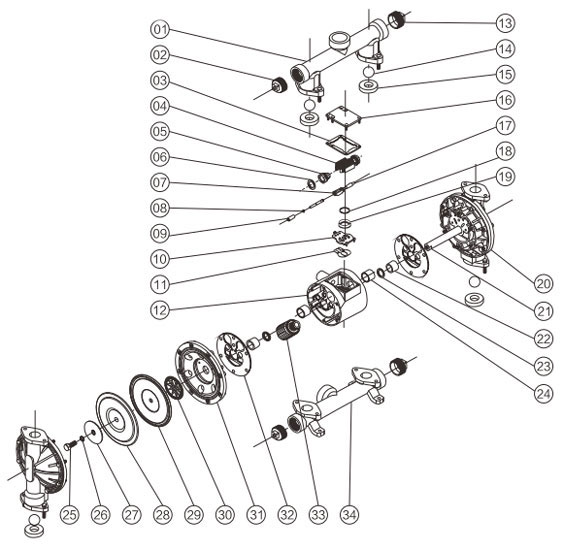

Details

Details of 1-1/2 inch Air Operated Double Diaphragm Pump

1	Discharge outlet (top cover)	13	Plug	24	Piston sleeve
2	Plug	14	Sealing ball	25	Clamp screw
3	Air valve cover gasket	15	Sealing seat	26	Clamp O-ring
4	Large slider aluminum piece	16	Air valve chamber cover	27	Outer clamp
5	Piston	17	Auxiliary shaft	28	PTFE diaphragm
6	V-Ring	18	Large slider O-ring	29	Poly rubber diaphragm
7	Small slider	19	Large slider plastic ring	30	Inner clamp
8	Auxiliary shaft O-ring	20	Colum	31	Baffle
9	Auxiliary shaft cover	21	Pitman shaft	32	Air valve chamber gasket
10	Sliding plate	22	Pitman shaft sleeve	33	Muffler
11	Sliding plate gasket	23	V-Ring	34	Feed inlet (bottom cover)
12	Air valve chamber	23	V-Ring	34	Feed inlet (bottom cover)

Applications

Applications of Air Operated Double Diaphragm Pump

Tips: How to maintain an air operated double diaphragm pump?

Air operated double diaphragm pump is no need for any lubricant before and during you use it. But after you disassemble the pneumatic dual diaphragm pump or when you reassemble it, it is better to fill some proper grease between pitman shaft and pitman shaft sleeve. When you install the diaphragm clamp, you also can coat a layer of grease for sealing easily.
If you need to install the air valve and guide valve, it is better to fill a small amount of grease for better lubrication.
Before you install the AODD pump, you need to clean all the inside parts, check whether all the sealing parts are well sealed.
Air valve cover gaskets and air valve chamber gaskets have two sides that can’t be installed reversely. The upper guide valve should be confirmed in place before tightening bolts, otherwise it will damage the thimble. Four bolts on the guide valve should be balanced and not over tight, otherwise the shell valve will be damaged.
