Industrial digital Dew Point Transmitter, -60~90°C, Online Type

Industrial digital Dew Point Transmitter, -60~90°C, Online Type

The industrial digital dew point transmitter provides reliable -60~90°C monitoring for industrial process control. This online type sensor delivers ±2°C Td accuracy with excellent long-term stability. Flexible RS485 and analog outputs support various control system integrations. Factory-calibrated dew point temperature transmitter offers dependable operation for compressed air systems and industrial gas processing applications.

SKU: CCHN-DPS-HG808D

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Critical monitoring applications benefit from this online type industrial digital dew point transmitter covering -60~90°C range. Advanced dew point temperature sensor technology provides reliable data in harsh conditions. Durable construction ensures consistent performance where precise moisture measurement matters most.

Specification

Model	CCHN-HG808-D
Dew Point Range	-60~+90°C
Dew Point Accuracy	±2°C(±3.6°F) Td
Temperature Range	-40~+90°C
Temperature Accuracy	±0.1°C (@23°C)
Long-term Temperature Stability	<0.1°C/year
Long-term Humidity Stability	<1%RH/year
Digital Output	Standard industrial interface RS485
Analog Output	Dew point + temperature (humidity for reference only) 4~20mA/0-5V/0-10V (optional)
Pressure Resistance	16 bar
Baud Rate	1200/2400/4800/9600/19200/115200 configurable, default 9600 bps
Transmitter Operating Temperature	-20°C~+60°C, 0%RH~95%RH, non-condensing
Sampling Frequency	Fastest 1s responses, others configurable per PLC settings

Features

Extended measurement capability: Industrial digital dew point transmitter achieves -60°C detection with ±2°C Td accuracy.
Dual output flexibility: Online dew point transmitter provides RS485 and analog signals for system integration.
Anti-condensation design: Built-in heating ensures reliable operation as a continuous dew point monitor.

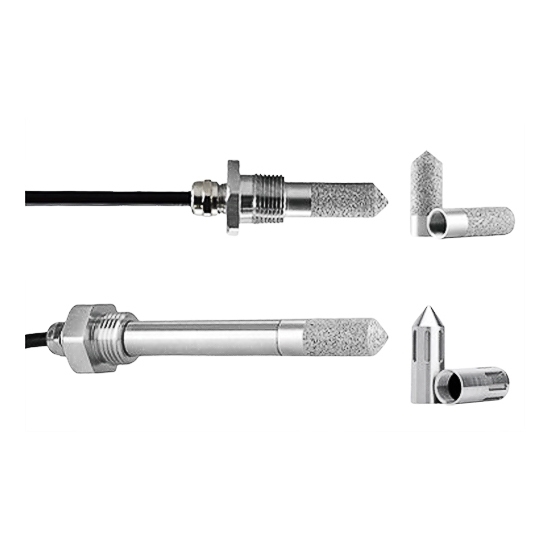

Multiple probe options: Four configurations suit various installation and measurement scenarios.
Enhanced signal stability: Advanced anti-interference ensures accuracy in noisy industrial environments.
Long-term reliability: Excellent stability maintains measurement accuracy over extended periods.
High temperature operation: Withstands 150°C environments for challenging industrial processes.

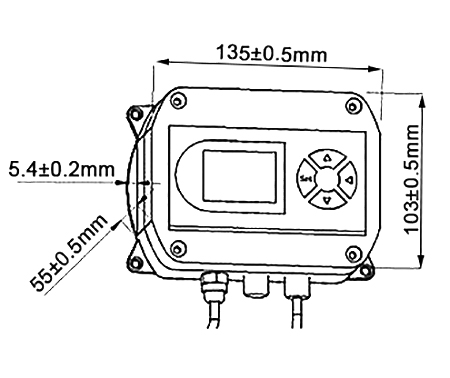

Dimension (Unit: mm)

Industrial digital dew point transmitter size

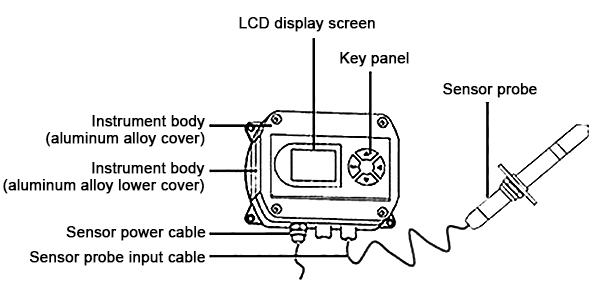

Details

Industrial digital dew point transmitter details

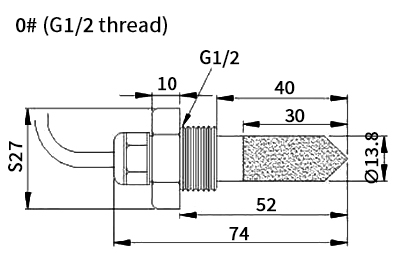

Probe Dimension (Unit: mm)

Industrial digital dew point transmitter probe 0 dimension

Industrial digital dew point transmitter probe-8 dimension

Application

Industrial digital dew point transmitter application

Tips: Is it acceptable to install the probe directly in my pipeline?

Absolutely! The probe is specifically engineered for direct pipeline installation with industrial-grade sealing technology. Its IP65-rated stainless steel housing and 16-bar pressure resistance ensure complete protection against leaks and environmental contaminants. The special sealing design maintains measurement integrity even under pressure fluctuations and temperature variations. This direct installation capability allows the continuous dew point monitor to provide real-time data without requiring additional sampling chambers.
