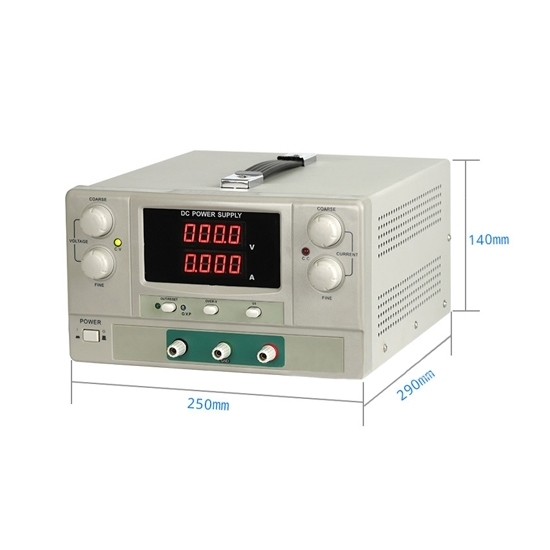

20A 60V 1200W Variable Linear DC Power Supply

20A 60V 1200W Variable Linear DC Power Supply

1200W power rating variable DC power supply with 3 digit LED display, designed to regulate adjustable 0 to 20 amp and 0 to 60 volt outputs. Features high accuracy, low ripple, low noise, this adjustable DC power supply can be used in dual input voltage 110V or 220V AC (+/- 10%). With digital control capabilities, it ensures precision and ease of operation.

SKU: CCHN-DCPS6020

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Adjustable linear DC power supplies often incorporate digital control interfaces, facilitating precise adjustments with user-friendly interfaces. Users can effortlessly set desired voltage levels and control amperage with accuracy, granting flexibility in powering diverse circuits or components.

Specification

Model	CCHN-JK6020D
Input Voltage	110V or 220V AC (+/- 10%)
Output Voltage Range	DC 0-60V
Output Current Range	0-20A
Output Power	1200W
Frequency	50Hz/60Hz
Output Type	Dual
Display	3 digit
Display Accuracy	≤ ±0.1%＋2d
Voltage Display Resolution	100mV
Current Display Resolution	10mA
Efficiency	>65%
Voltage Regulation
Load Regulation (CV)	1×10^-5+8mV
Line Regulation (CV)	1×10^-5+3mV
Ripple & Noise (P-P)	0.5mV
Temperature Coefficient	300PPｍ/℃
Current Regulation
Load Regulation (CC)	≤5mA
Line Regulation (CC)	2×10^-5+3mA
Temperature Coefficient	500PPｍ/℃
Others
Protection	Over Load and Over Voltage Protection
Recovery Time	≤100µs
Operating Ambient	0℃ to + 40℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Warranty	12 Months
Size	303 (L) x 255 (W) x 155 (H) mm
Weight	12kg

Detail

10A 20A 60V variable linear DC power supply detail

Tips: Is there any difference between constant voltage (CV) and constant current (CC) modes?

Yes, there is a fundamental difference between constant voltage (CV) and constant current (CC) modes in electronic systems. In CV mode, the power supply maintains a constant voltage output, ensuring that the voltage across the load remains constant regardless of changes in the load resistance. This mode is commonly used in applications where a stable voltage is crucial, such as powering electronic devices.

On the other hand, CC mode maintains a constant current output, regulating the current flowing through the load. This is valuable in applications where maintaining a consistent current is essential, like in charging batteries. The choice between CV and CC modes depends on the specific requirements of the electronic circuit or device being powered, and some power supplies offer both modes to accommodate various applications.
