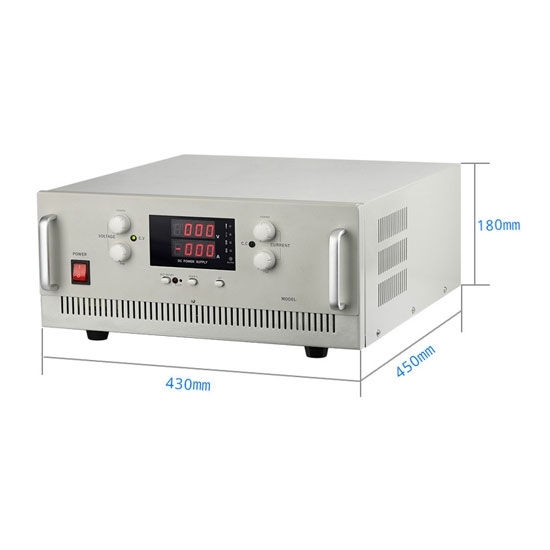

60A 30V 1800W Variable Linear DC Power Supply

60A 30V 1800W Variable Linear DC Power Supply

Buy 0 to 30V, 0 to 60A variable linear DC power supply with selectable 110V/220V±10% AC input, 3 digit LED display, 1800W power, CC/CV mode automatic switch, capable of delivering an adjustable output voltage or current. Using a variable DC power supply allows digital or analog control of the power supply output by a control system.

SKU: CCHN-DCPS3060

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

High precision variable linear DC power supply with adjustable voltage and current slew rate, supplies 0 to 30V DC at up to 60A. It is specially designed for scientific research, product development, laboratories, schools and electronic production lines.

Specification

Model	CCHN-JK3060D
Input Voltage	110V or 220V AC (+/- 10%)
Output Voltage Range	0-30V
Output Current Range	0-60A
Output Power	1800W
Frequency	50Hz/60Hz
Output Type	Dual
Display	3 digit
Display Accuracy	≤ ±0.4%＋3d
Voltage Display Resolution	10mV
Current Display Resolution	10mA
Efficiency	>60%
Voltage Regulation
Load Regulation (CV)	1×10^-4+8mV
Line Regulation (CV)	1×10^-4+3mV
Ripple & Noise (P-P)	0.8mV
Temperature Coefficient	300PPｍ/℃
Current Regulation
Load Regulation (CC)	≤5mA
Line Regulation (CC)	2×10^-4+3mV
Temperature Coefficient	500PPｍ/℃
Others
Protection	Over Load and Over Voltage Protection
Operating Ambient	0℃ to + 40℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Certification	CE, RoSH
Warranty	12 Months
Size	530 (W) x 430 (H) x 200 (D) mm
Weight	40kg
Package List	1 x DC Power Supply Host, 1 x Output Power Cord, 1 x User Manual

Details

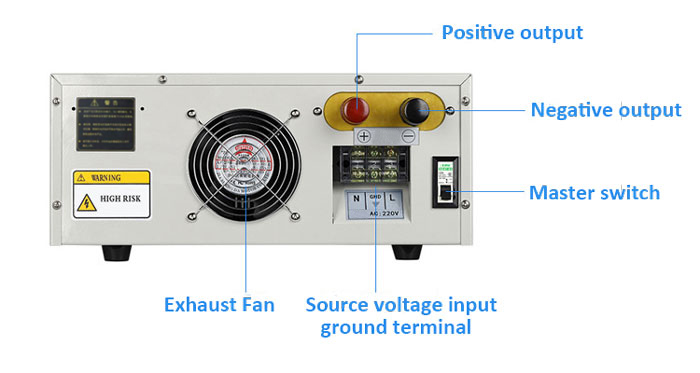

Details of 60A 30V Adjustable Linear DC Power Supply

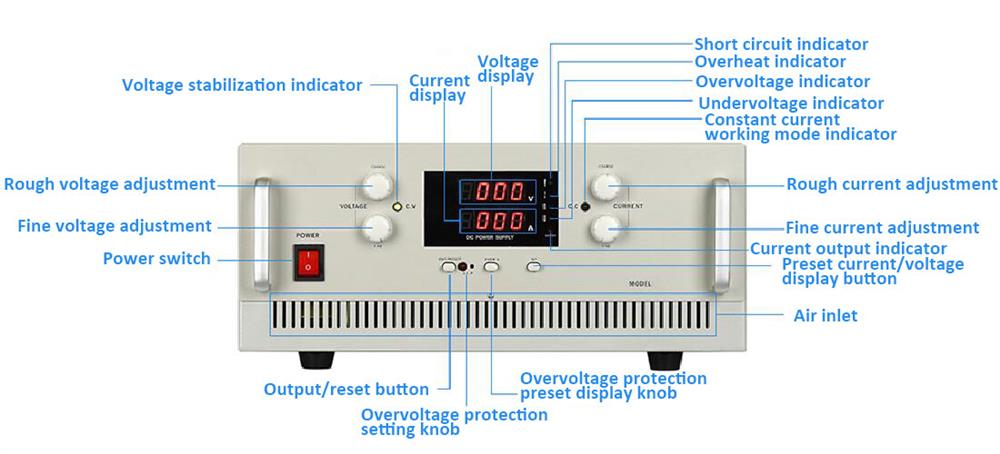

Details of 60A 30V Variable Linear DC Power Supply

Tips: Working principle of variable linear DC power supply

The working process of the main circuit of the linear DC power supply is that the input power is first subjected to the preliminary AC voltage stabilization by the pre-regulated circuit, and then converted into the DC power supply through the isolation and rectification of the main working transformer, and then under the intelligent control of the control circuit and the single-chip micro-processing controller finely adjust the linear adjustment element to output a high precision DC voltage source.

Linear DC power supply can be widely used in scientific research, universities, laboratories, industrial and mining enterprises, electrolysis, electroplating and charging equipment.
