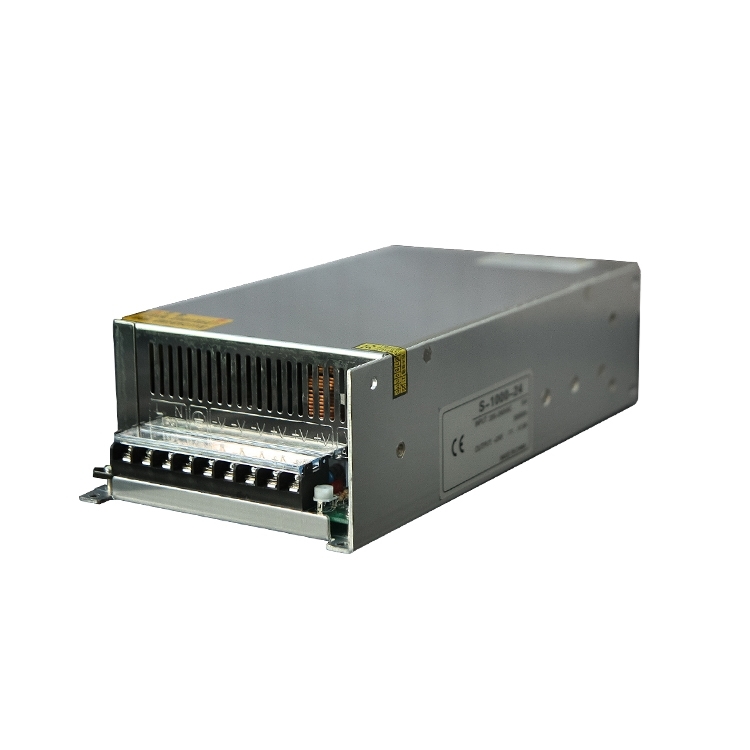

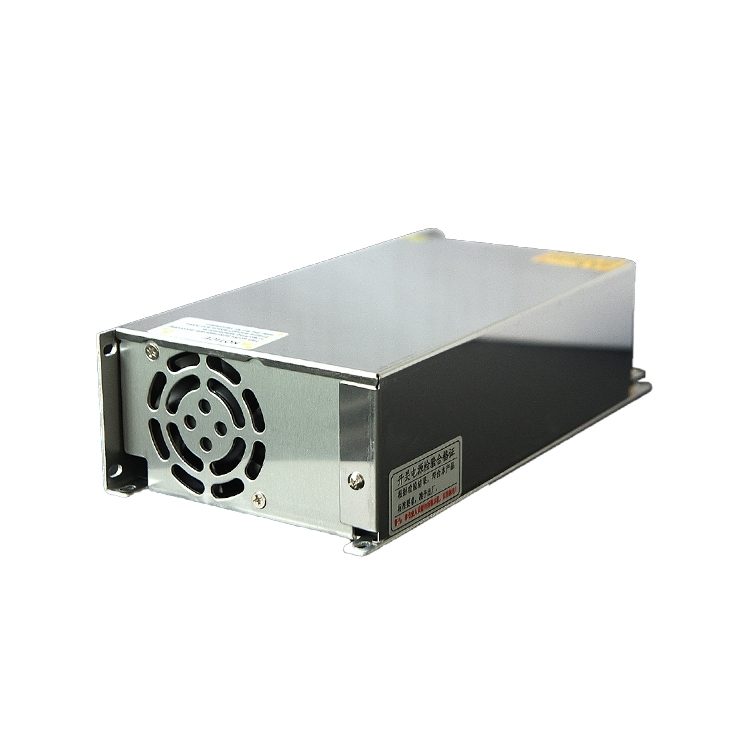

24V DC 1000W Switching Power Supply

High quality 24V DC, 1000W switching power supply uses brand new electronic components, ensuring the production quality of the power supply, with overload, over-voltage, overheating and short circuit protection functions. High performance switch power supply widely used in LED Strip, Audio Power Amplifier, LED Lighting, Light Box Billboard, etc.

SKU: CCHN-SMPS-1000-24

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Features

Excellent magnetic core enameled wire, high temperature resistance
1000W switching power supply with high voltage resistance, low loss, high capacity
Iron-silicon aluminum magnetic ring, lower working temperature
Highly efficient heat dissipation, low fan noise
High working efficiency, stable output
Exquisite appearance, small size, stable performance

Specification

Model		CCHN-MS-1000-24
Output	DC Voltage	24V
	Rated Current	41.6A
	Rated Power	1000W
	Ripple & Noise	<150mVp-p
	Voltage Accuracy	±1%
	Voltage Adjustment Range	±10%
	Load Adjustment Rate	<±0.5%
	Line Adjustment Rate	<±0.5%
Input	Voltage Range	180~264VAC; 254~370VDC
	Frequency Range	47~63Hz
	Efficiency (Typ.)	>85%
	AC Current	220VAC, 8A
	Inrush Current	60A 230VAC
	Setup, Rise, Holdup Time	200ms, 50ms, 20ms: 230V AC
Protection	Overload	105~135% rated output power Protection type: Constant current limiting, recovers automatically after fault condition is removed.
Protection	Over temperature	RTH3: Fan is always running, ≥90°C output shut down.
Environment	Working Temperature	-10 ~ +50℃
	Working Humidity	20~90% RH
	Storage Temperature	-20~+85℃
	Storage Humidity	10~95% RH
Safety & EMC	Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
	Leakage Current	I/P-O/P， <6mA at 1.5kVAC； <1.5mA at 220VAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
Others	Dimension	29113268mm (LWH)
Others	Weight	2.4kg

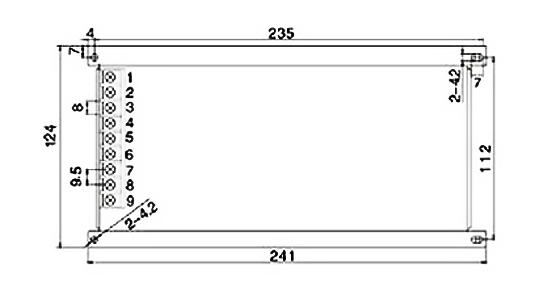

Dimensions (Unit: mm)

Tips: Some common failures of SMPS

If the switching power supply does not start vibrating, it is generally necessary to check whether the switching frequency is correct, whether the protection circuit is blocked, whether there is any problem with the voltage feedback circuit and current feedback circuit, and whether the switching tube is broken down.
Transformer heats up or makes a "sizzling" sound, generally because the switching frequency is wrong.
The output voltage power supply indicator flickers, commonly because there is a short circuit on the secondary side.

When repairing the switching power supply, first use a multimeter to check whether each power component has a breakdown and short circuit, such as the power rectifier bridge stack, switch tube, high-frequency high-power rectifier tube, and whether the high-power resistor that suppresses inrush current is blown. Then check whether each output voltage port is abnormal.
