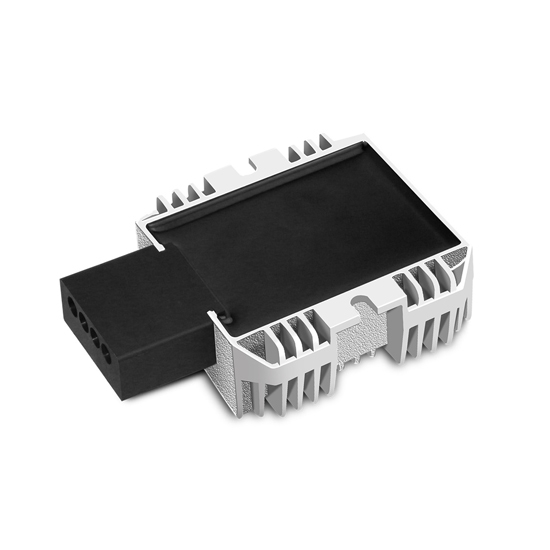

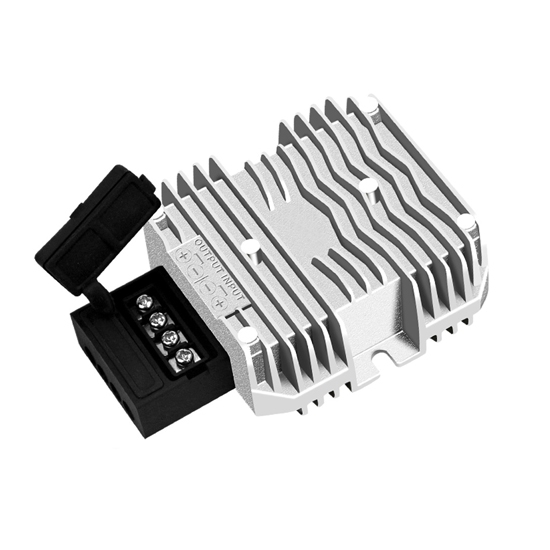

Isolated DC-DC Converter, 24V to 12V

Isolated DC-DC power converter for sale, with a range of input voltage 18V to 36V DC, output voltage 12V DC, output current 10 amps and output power 120 watts, up to 92% conversion efficiency. This step down power supply is widely used in artificial intelligence, communication base stations and industrial control.

SKU: CCHN-IDCDC-2412

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

CCHN isolated DC-DC converter with 24V rated input voltage, is a step down converter that uses a synchronous rectification technology, and features high efficiency and power density. It provides that rated output voltage of 12V and the maximum output current of 10A.

Features

100% full power, high stability output.
Isolated DC-DC converter uses high-quality thermal conductive silicone potting, waterproof, dustproof, shockproof, with die-casting aluminum alloy shell, small size, and easy installation.
Wide voltage input, built-in overcurrent, overvoltage, overtemperature, short circuit and other automatic protection functions.
CE, RoHS certification, up to 100,000 hours of service life.

Isolated DC-DC Buck Converter Specification

Model	CCHNWGI10-24S12M (Click to view more specs)
Input	Rated voltage	24V
	Voltage range	18-36V
	Efficiency	92%
Output	Voltage	12V
	Max. rated current	10A
	Max. rated power	120W
	Voltage regulation	±2%
	Load regulation	±2%
	No load loss	70mA
	Ripple & noise	50mV
Environment	Working temperature	-40 ~ +80℃
	Working humidity	5% ~ 95%RH
	Storage temperature	-55 ~ +100℃
Function	Short circuit protection	NO
	Over current protection	YES
	Waterproof	IP67
	Over temperature protection	YES
	Over-voltage protection	YES
Mechanical	Weight	250g
	Size	747429.5mm

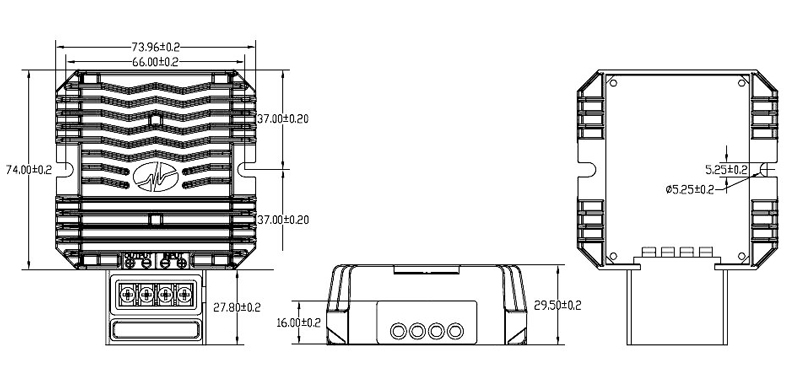

Dimensions (Unit: mm)

Dimensions of isolated DC-DC converter 24V to 12V

Tips: How to choose an isolated DC-DC converter?

Choosing an isolated DC-DC converter requires careful consideration of several key factors.

Input and Output Voltage: Ensure the converter can handle your input voltage range and provide the desired output voltage.
Power Rating: Select a converter with sufficient power capacity to meet your load requirements, considering efficiency.
Isolation Voltage: Determine the required isolation level to protect sensitive components and ensure safety.
Topology: Pick the appropriate converter topology (e.g., flyback, forward, or push-pull) based on your application's specific needs, such as efficiency, cost, and size.
Efficiency: Opt for a converter with high efficiency to minimize power losses and reduce the need for cooling.
Operating Environment: Consider the temperature, humidity, and other environmental conditions where the converter will operate.
Protection Features: Look for converters with built-in protections like over-current, over-voltage, and thermal shutdown.
Size and Form Factor: Ensure the converter fits within the available space and is compatible with your layout.
Cost and Reliability: Balance the cost with the desired reliability and quality.
Regulatory Compliance: Verify that the converter meets safety and certification standards for your industry.

Taking these factors into account will help you choose the right isolated DC-DC converter for your application.
