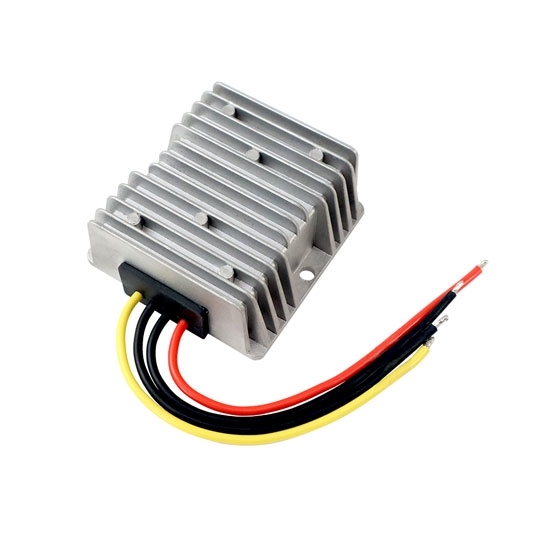

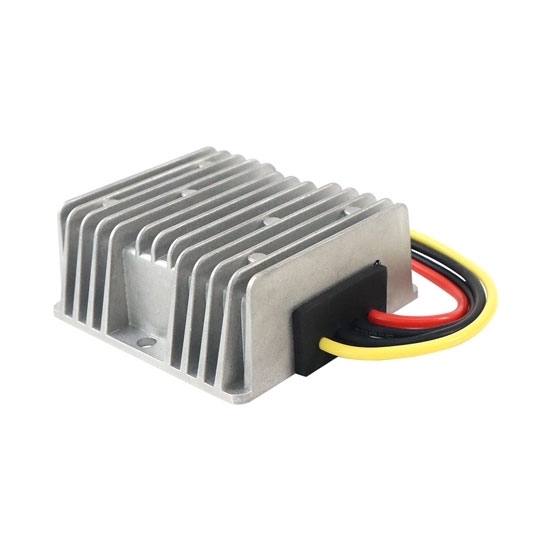

12 Volt DC to 24 Volt DC Step up Converter, 3A/4A/5A/8A/10A

This universal DC-DC boost converter delivers efficient 12V to 24V step-up conversion, reaching up to 95% efficiency. Built to operate reliably in temperatures from 40°C to 80°C. Durable and high-performance, this converter is a dependable choice for efficient power management.

3A DC-DC Converter Specification

12V to 24V DC-DC Converter Model Selection

Code	Model	Price	Input Voltage	Output Voltage	Output Current	Output Power	Efficiency	Size	Download
1	CCHNWG-12S2403	$50.06	12V DC	24V DC	3 Amps	72 Watts	95%	74*74*32mm
2	CCHNWG-12S2404	$56.45	12V DC	24V DC	4 Amps	96 Watts	94%	74*74*32mm
3	CCHNWG-12S2405	$66.75	12V DC	24V DC	5 Amps	120 Watts	94%	74*74*32mm
4	CCHNWG-12S2408	$78.72	12V DC	24V DC	8 Amps	192 Watts	93%	74*74*32mm
5	CCHNWG-12S2410	$86.93	12V DC	24V DC	10 Amps	240 Watts	92%	74*74*32mm

Feature

• Wide input voltage range: 9V to 23V.
• The 12V to 24V DC-DC converter includes overload, over-temperature, and over-voltage protections.
• Brand-new, die-cast aluminum shell and high quality design, maximum transfer efficiency of 95%.
• This DC-DC converter comes with waterproof lever of IP67, moisture-proof & anti-shock protection.
• Auto-recovery when device is back to normal operating.
• Industry grade 12V DC to 24V DC boost converter, widely used in automotive, electricity, surveillance systems, railway signals, instruments, solar generate electricity, display screen of bus and taxi, car audio device, security systems, hospital equipment, telecommunications etc.

Detail

Tips: Installation Guide for 12V DC to 24V DC Step-up Converter

1. Check specifications: Ensure the load device can accept 24V DC output and that the DC-DC boost converter’s current rating (3A/4A/5A/8A/10A) matches the device’s requirements.
2. Power off: The 12V DC input source (battery or power supply) should be turned off before wiring.

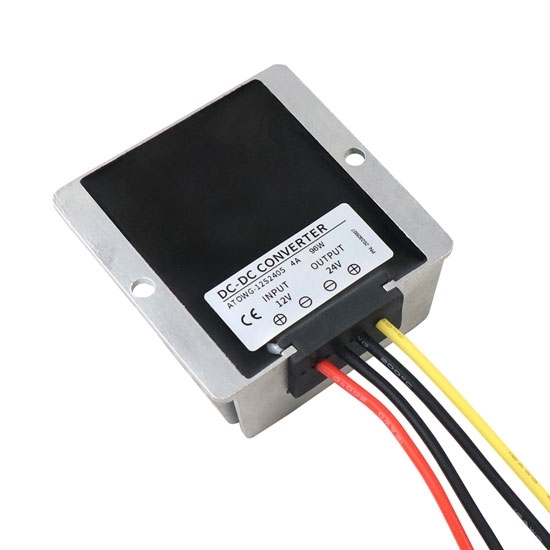

3. Connect input and output: Connect the 12V source positive (+) wire to VIN+ and negative (−) wire to VIN−. Connect VOUT+ to the positive terminal of the 24V device and VOUT− to the negative terminal.
4. Secure connections: All wires should be firmly connected; loose or exposed wires must be avoided to prevent short circuits.
5. Power on and test: Turn on the 12V DC source, verify that the output voltage reads approximately 24V DC, connect the device, and confirm normal operation. Monitor for overheating during initial operation.
6. Optional mounting: For permanent setups, the efficient DC-DC converter can be mounted in a ventilated, dry location. Despite the IP67 waterproof rating, prolonged exposure to water is not recommended.
